Bartec BCS 3600ex Series User Manual

7 Connection /
commissioning (qualified
personnel)
Handscanner
BCS 3600
ex
series
78 / 106
Subject to technical modifications
Revision A / 04/2019

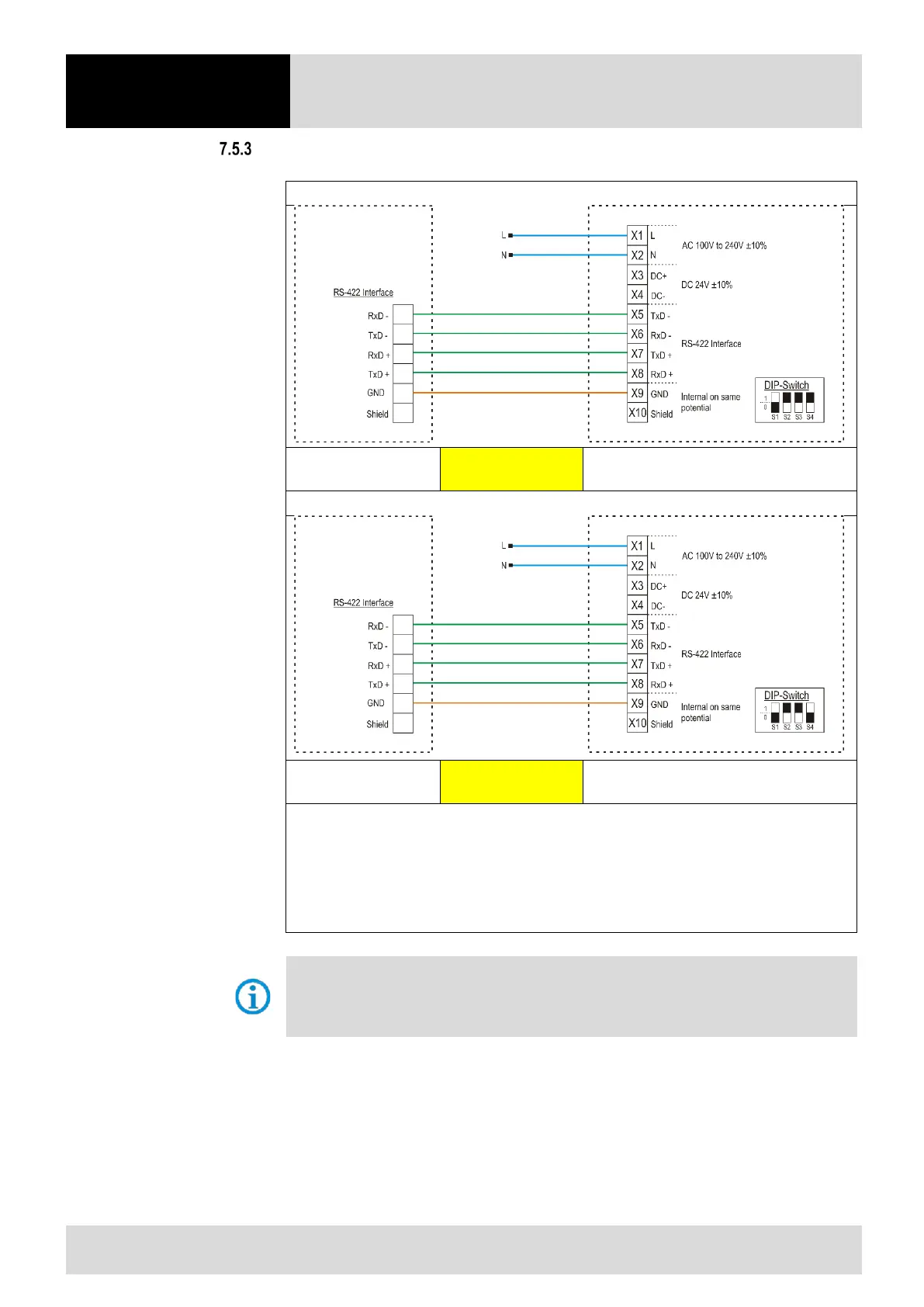

USM with RS422 Interface
USM-Bluetooth with RS422
PC/Host with serial
RS422-interface
Max. cable length is
1000m
USM-Bluetooth
USM-corded with RS422
PC/Host with serial
RS422-interface
Max. cable length is
1000m
USM-corded
Wiring:
Blue wire  necessary (example connection to AC)
Green line  necessary
Orange line  optional to use only for large potential differences.
For data lines (green and orange) we strongly recommend to use shielded (e.g. CAT5, similar or
higher quality) cables.
Dip-Switch:
S1 to S4 = Setup for interface
S4 = 0 = Corded Version
S4 = 1 = Bluetooth Version
