Bartec BCS 3600ex Series User Manual

Handscanner
BCS 3600
ex
series
7 Connection /
commissioning (qualified
personnel)
Subject to technical modifications
Revision A / 04/2019
77 / 106

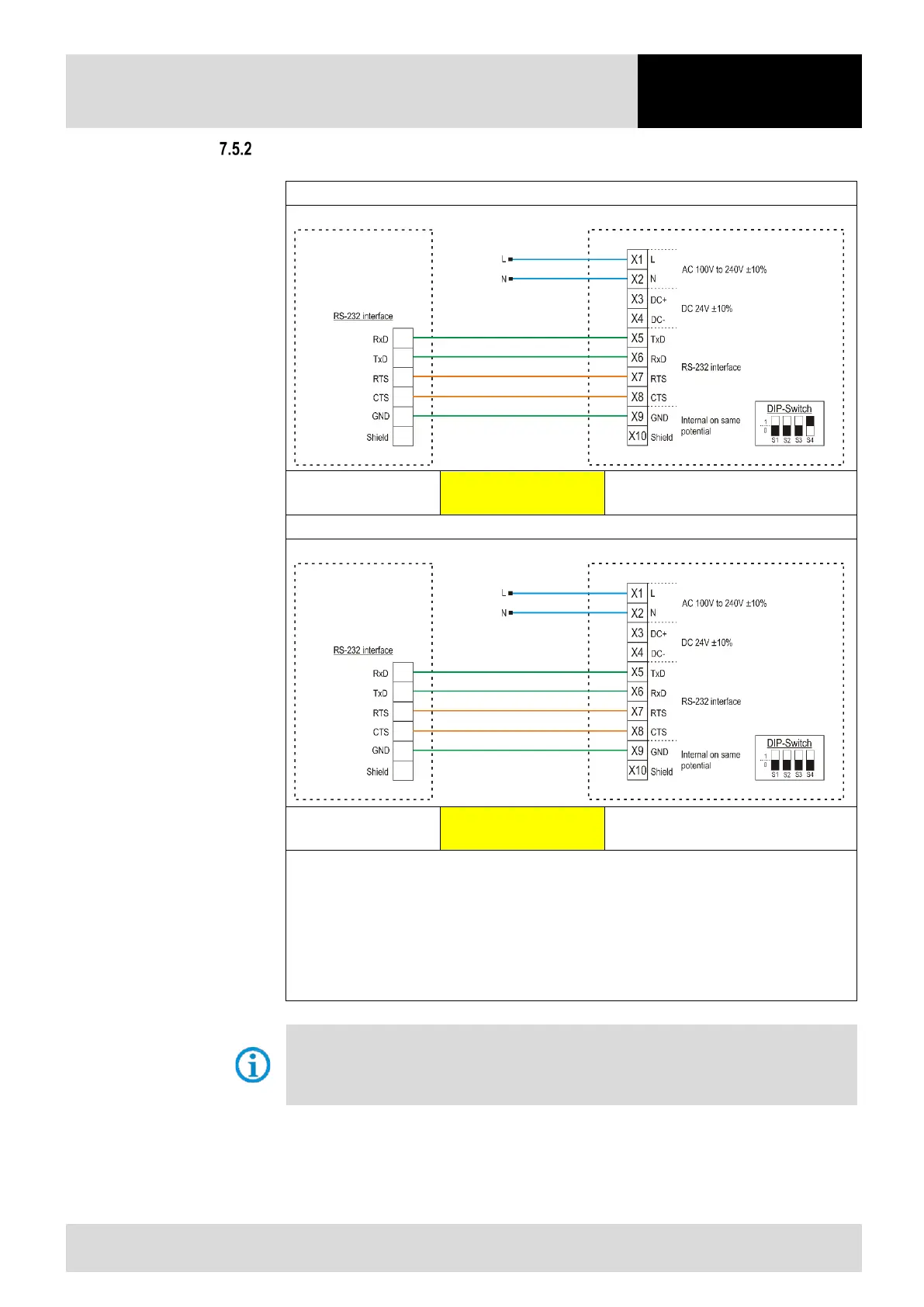

USM with RS232 Interface
USM-Bluetooth with RS232
PC/Host with serial
RS232-interface
Max. cable length is 15 m USM-Bluetooth
USM-corded with RS232
PC/Host with serial
RS232-interface
Max. cable length is 15 m USM-corded
Wiring:
Blue wire  necessary (example connection to AC)
Green line  necessary
Orange line  optional only when using software and/or
Hardware-Handshake required
For data lines (green and orange) we strongly recommend to use shielded (e.g. CAT5, similar or
higher quality) cables.
Dip-Switch:
S1 to S4 = Setup for interface
S4 = 0 = Corded Version
S4 = 1 = Bluetooth Version
