4.4.5 Construction of 4-slot charging station for spare batteries
DANGER
Spark formation!
Explosion.

Only use the 4-slot charging station outside the potentially explosive atmosphere.
The function is only guaranteed if the 4-slot charging station you use for your configuration has been
specified by BARTEC (see system overview, Chapter 15.2).
The model is clearly indicated on the type label.

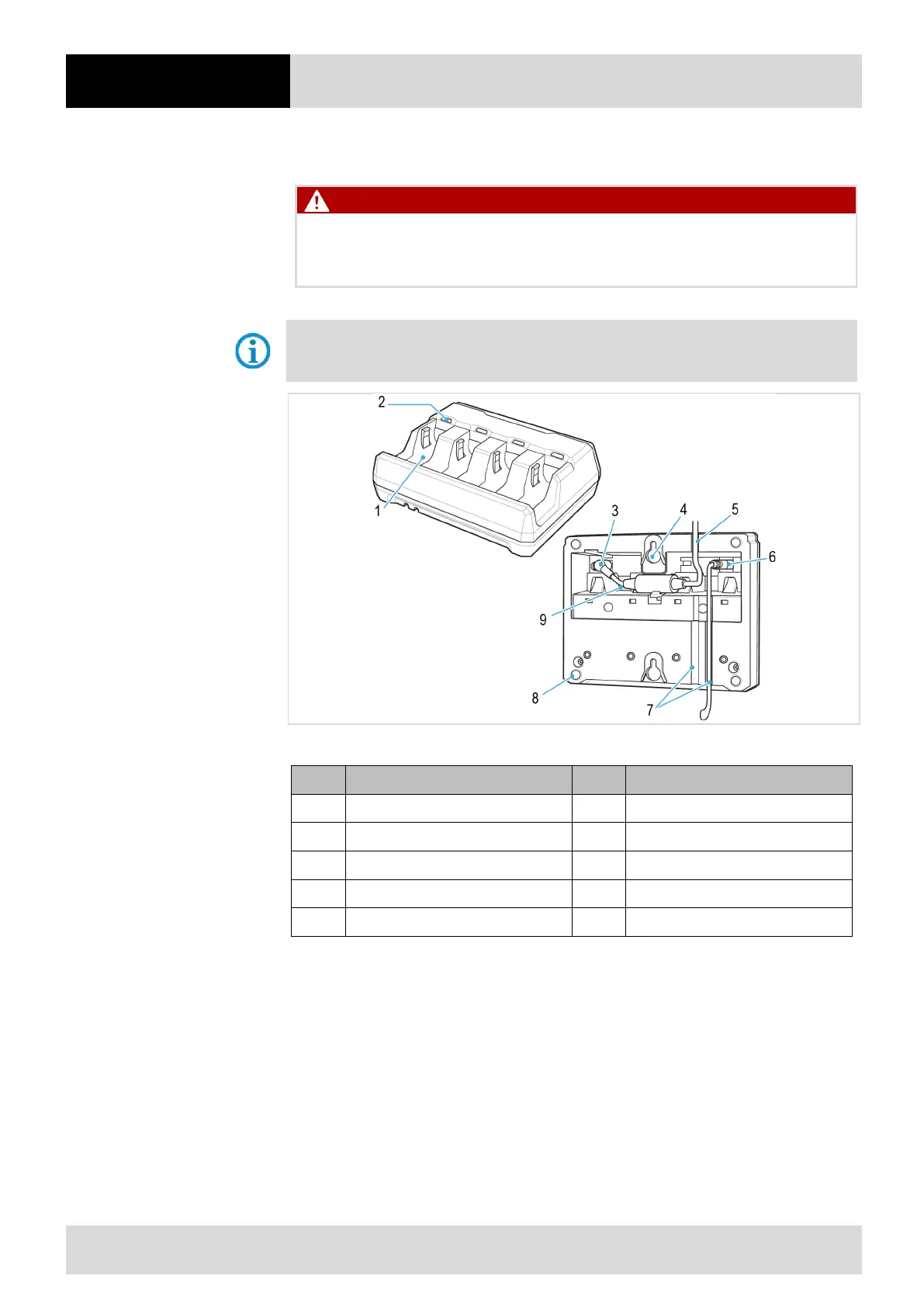

Figure 12 Construction of the 4-slot charging station for spare batteries
Pos.
Description
Pos.
Description
1 Battery compartments (4) 2 LEDs (4)
3
Power connection
4
Mounting holes, wall mounting (2)
5
Power cable groove
6
USB connection
7 Cable groove 8 Rubber feet (4)
9
Cable routing, power cable
Table 27 Construction 4 slot battery charger
