Bartec BCS 3600ex Series User Manual

7 Connection /
commissioning (qualified
personnel)
Handscanner
BCS 3600
ex
series
74 / 106
Subject to technical modifications
Revision A / 04/2019
Connection via USB
Connection via RS232

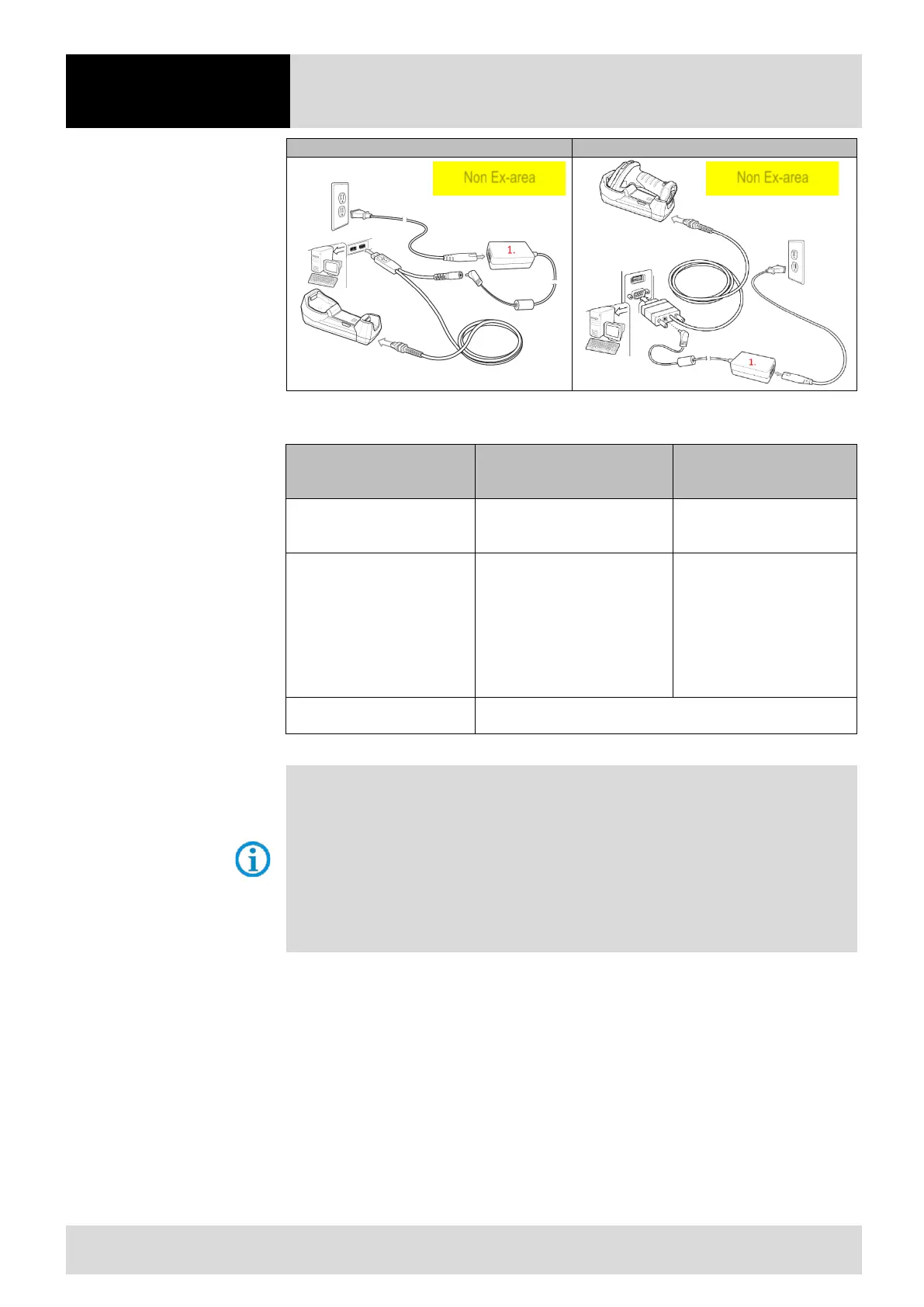

Figure 29 Connecting the AC Cable
Needed power supply:
Part
BCS 3678
ex
-IS-Version
ATEX / IECEx Zone 1/21
CSA Class I, II, III Division 1
BCS 3678
ex
-NI-Version
ATEX / IECEx Zone 2/22
CSA Class I, II, III Division 2
Base station for hand-held
scanner BCS 3678
ex
Bluetooth
Type: 17-A1Z0-0014 Type: G7-A0Z0-0010
Connecting cable
- Connection between
base station and PC
- With terminal for
12V power supply
RS232; 1.9 m (plain)
- Type: 17-A1Z0-0026
RS232; 4.5 m (plain)
- Type: 17-A1Z0-0027
USB; 1.9 m (plain)
- Type: 17-A1Z0-0020
Identical with
programming cable
RS232; 2 m (plain)
- Type: G7-A0Z0-0014
RS232; 4.6 m (plain)
- Type: G7-A0Z0-0015
RS232; 2.8 m (spiral)
- Type: G7-A0Z0-0016
USB; 2 m (plain)
- Type: G7-A0Z0-0018
Power supply with DC
connecting cable
Type: G7-A0Z0-0019
Table 56 Needed power supply
Note on the power supply of the base station via the PC/Host:
RS232:
The RS232 does not provide a supply voltage to operate the base station functionally.
External power supply of type G7-A0Z0-0019 is mandatory.
USB:
The supply voltage via the USB interface is sufficient to ensure data transmission via the base
station.
If the base station is also used as a charging station it is strongly recommended to use an external
power supply type G7-A0Z0-0019.
The charging current via the USB interface is too low to allow a fast charging of the battery.
Non Ex-area
Non Ex-area
