Section 4
Page 2
Transport - Installation
4.1.3 Securing devices
All forms of securing devices (ropes, cable
ties, adhesive tape etc.) must be removed
before commissioning. They must always be
reattached before the machine is
transported again.

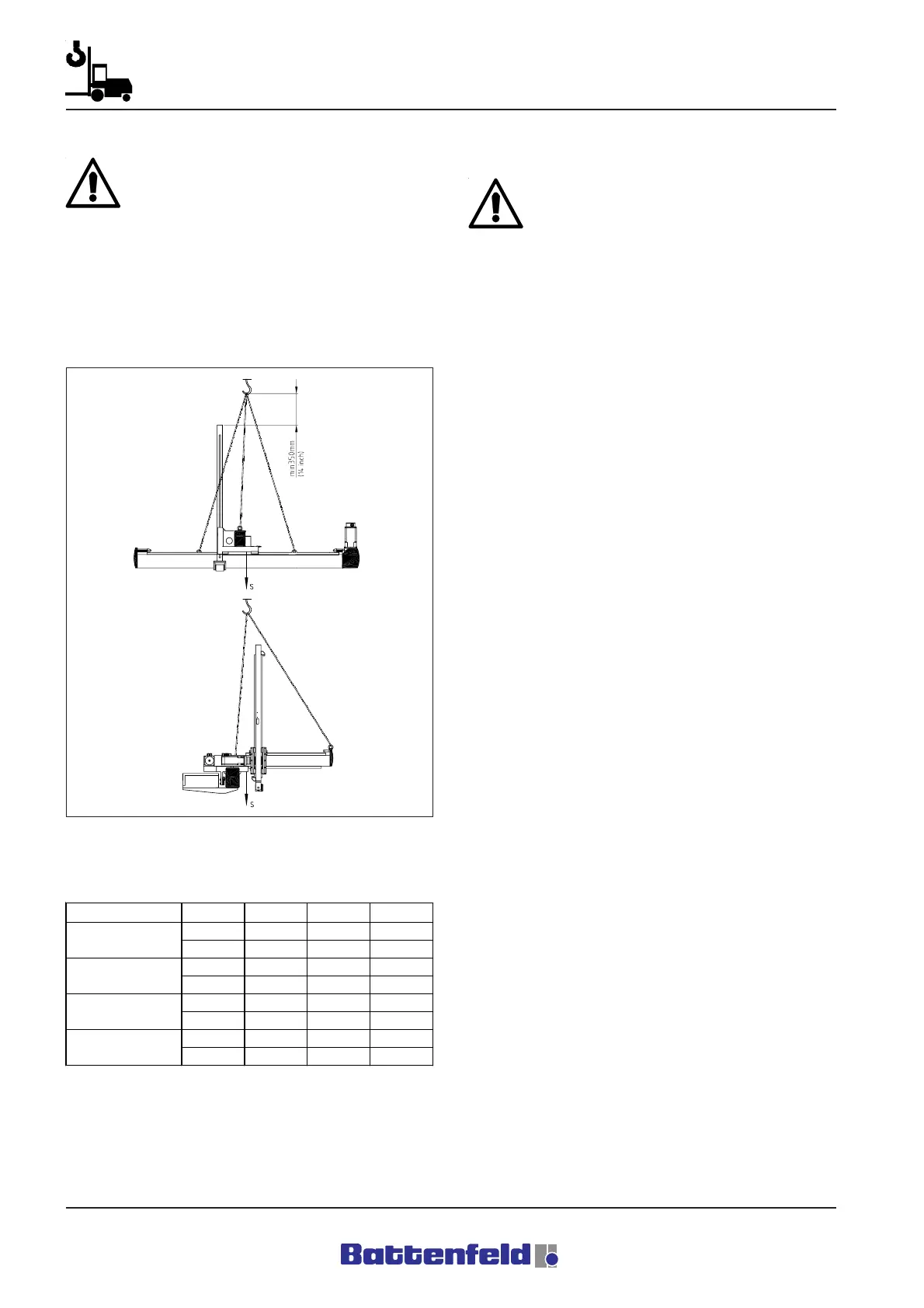

4.1.4 Crane transportation
4.1.5 Transport weight
4.1.6 Injection moulding machine assembly
Safety ladders and platforms must be used
when assembling/disassembling,
converting, operating or servicing overhead
components belonging to the robot in
accordance with legal regulations and
specifications. Do not climb onto any of the
robot components. Safety harnesses must
be worn when working at heights.
If the robot is mounted on the injection moulding
machine, it is important to ensure that the
machine is aligned to within 0.1 mm (0.004
inches). (refer to the IMM Operating Manual –
Section 4: Transport - Installation).
4.1.7 Installation layout
The precise space requirements are specified in
the ”Installation layout” diagram at the end of this
section.
R8B2_164.PDF
Model S Length Width Height
400 kg 2700 mm 1600 mm 1800 mm
882 lbs 106.3 inch 63 inch 70.9 inch
430 kg 3200 mm 1800 mm 2000 mm
984 lbs 126 inch 70.9 inch 78.7 inch
460 kg 3700 mm 1800 mm 2200 mm
1014 lbs 145.7 inch 70.9 inch 86.6 inch
30 kg 700 mm 600 mm 300 mm
66 lbs 27.6 inch 23.6 inch 11.8 inch
R8B2GB_165.XLS
R8 4-8-15 B2
R8 6-10-20 B2
R8 6-12-25 B2
Control cabinet B2
