Operation and Control System
A: R82GB0FA.PMD
B: R82DE0FA.P65
E: 080403 / T. Weiß
G: 200103 / TCS
Section 5.5
Page 13
?

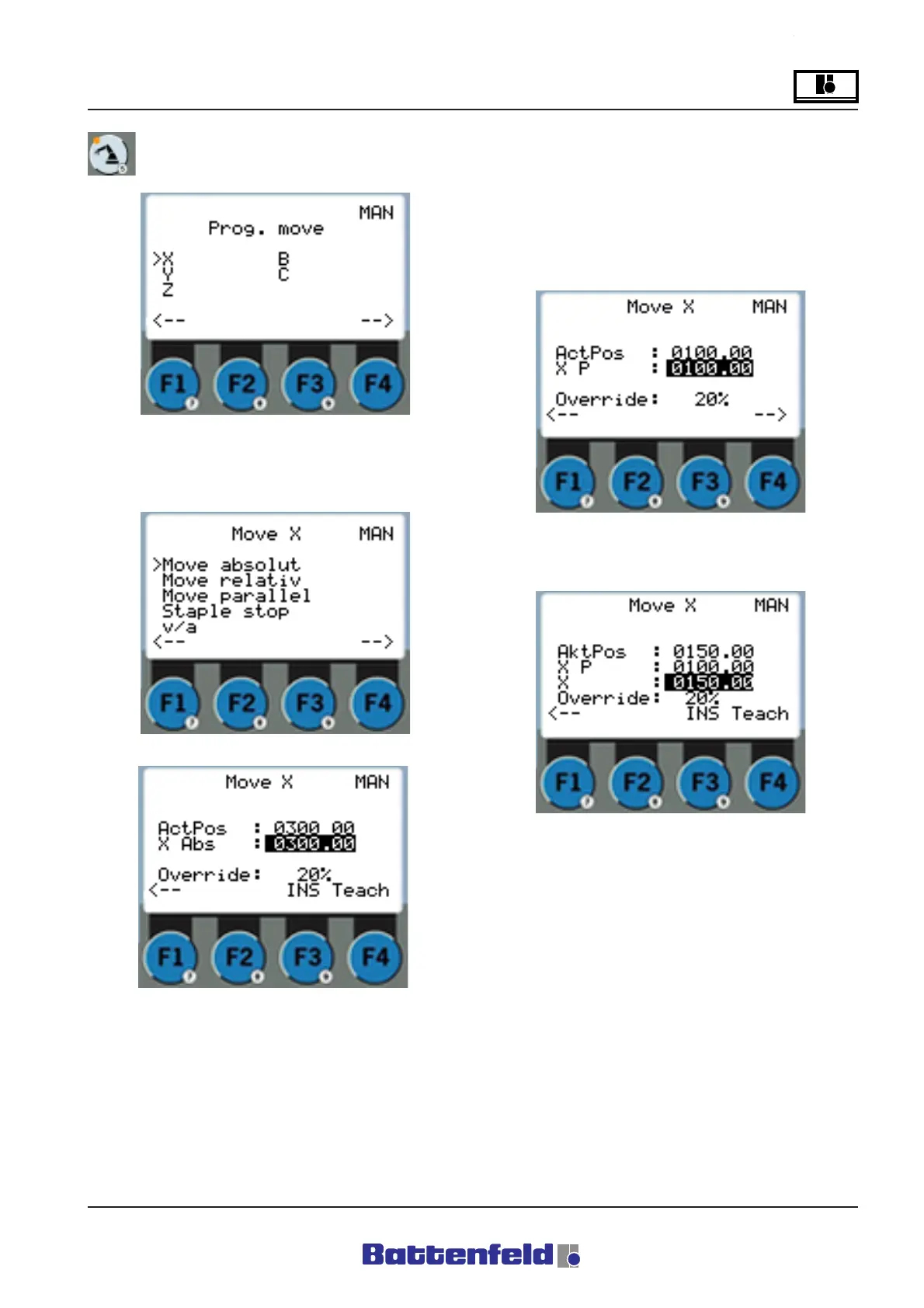

Press the ROB button.
Select the axis to be edited (e.g. X-axis -> Move
Absolute -> 300)
Attention!
In TEACH programming mode the system
will automatically move to the selected value
when START is pressed.
Adjust X-axis -> Move relative -> 100
X-axis adjustment -> Move parallel -> 1st
position 100 -> 2nd position 150
