Mounting instructions

Operation manual b maXX BM4100 (NWR)

Document no.: 5.04052.09 Baumüller Nürnberg GmbH

of 142

6.3

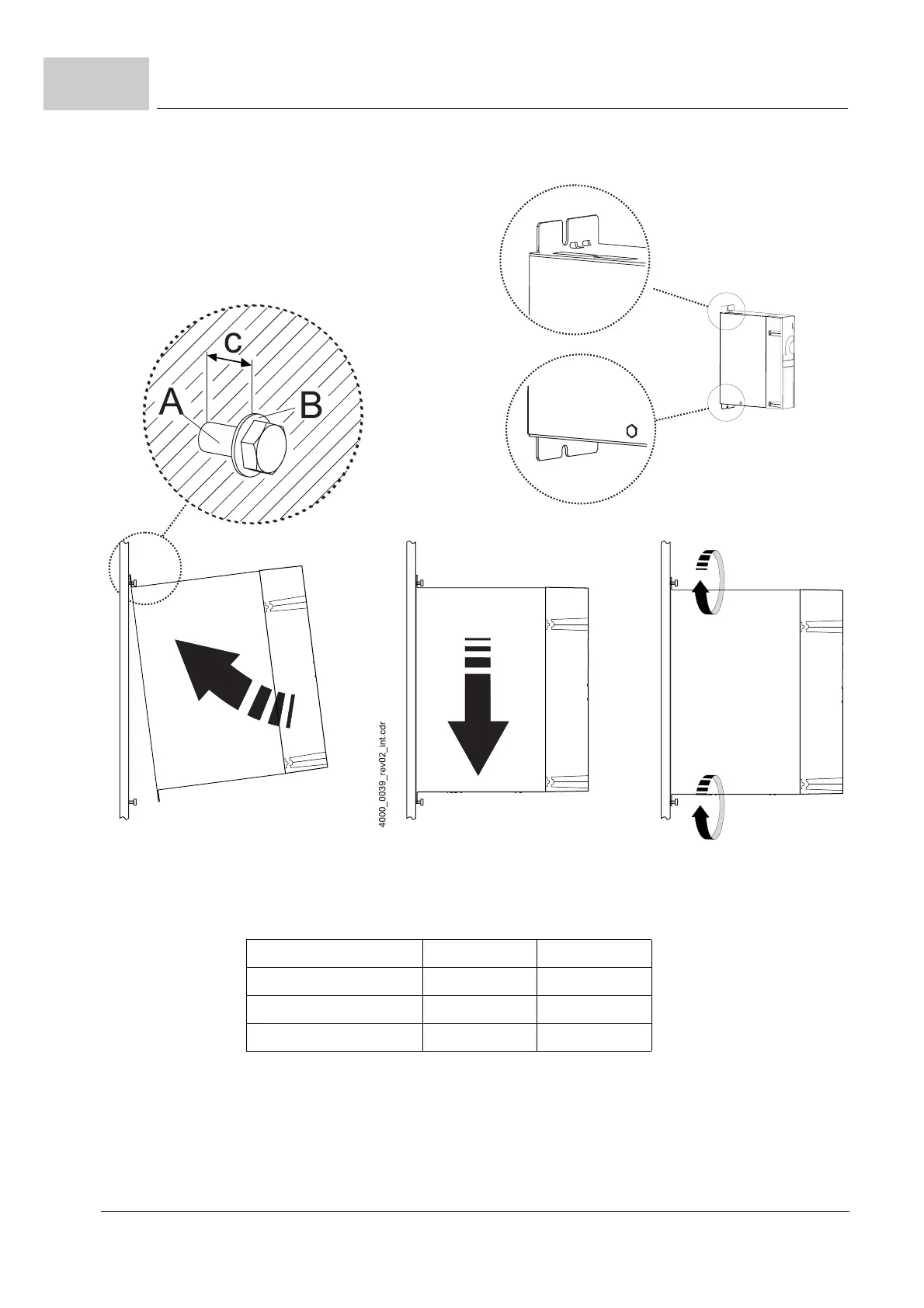

Figure 20: Mounting instruction BM4135-S and BM4145-S

Device BM4135-S BM4145-S

A - screws 4 x M5 4 x M5

B - washers 4 x (5,3 x 10) 4 x (5,3x15)

c - mounting space c = 5 mm c = 5 mm
