Connection diagrams
Operation manual b maXX BM4100 (NWR)
Document no.: 5.04052.09 Baumüller Nürnberg GmbH
74
of 142
7.18
Electrical connections of the controller unit

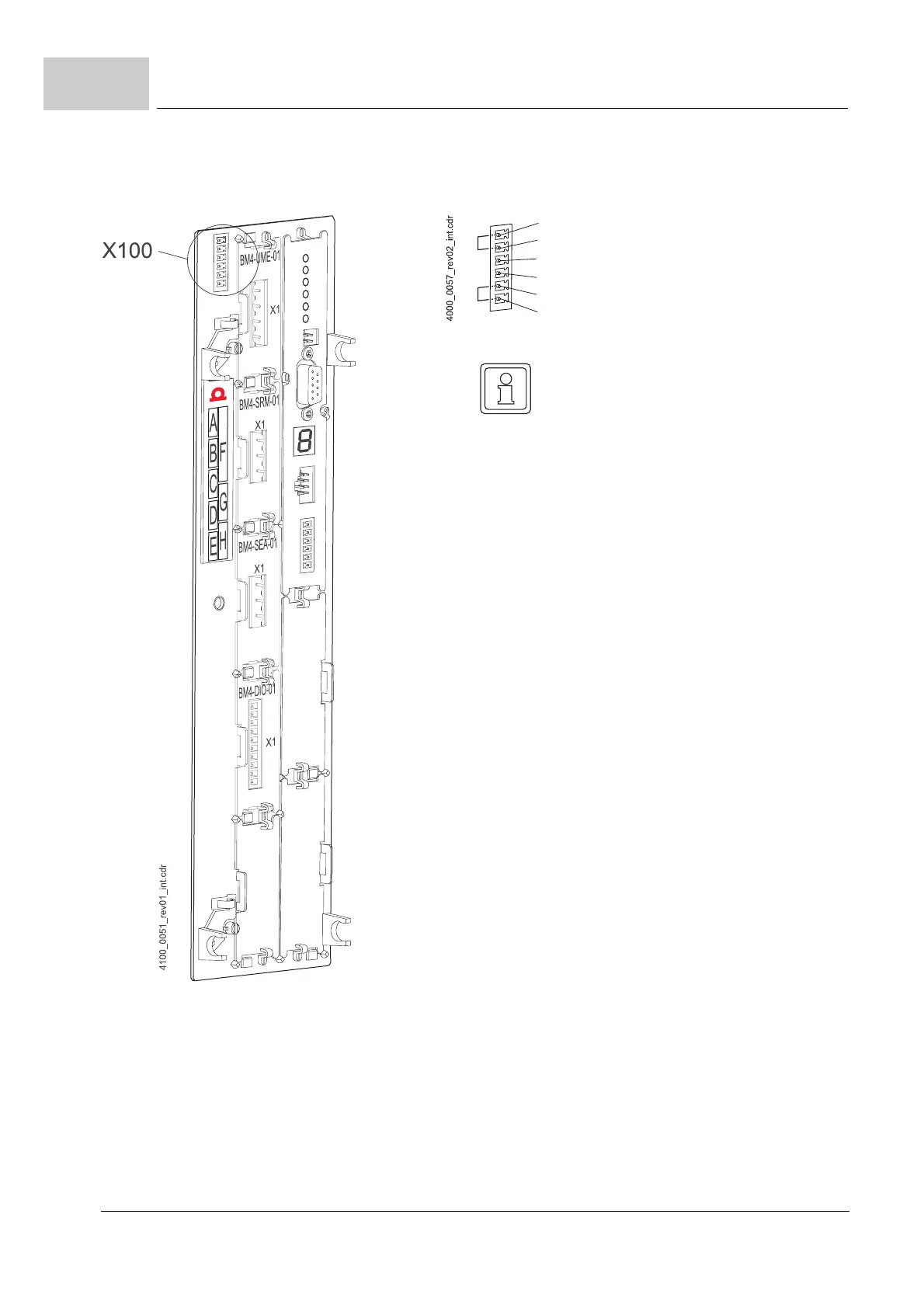

Figure 32: Connection X100
X100-1: +24V (SELV/PELV)*
X100-2: +24V (SELV/PELV)*
X100-3: n.c.
X100-4: Quick discharge (SELV/PELV) **
X100-5: M24V (SELV/PELV)*
X100-6: M24V (SELV/PELV)*
Do not connect X100-3. This is different to
BM44XX-devices.
