m Long power failure (> 10 s)
Power supply
X1:5 Error
t > 10 s
Using a BM50XX-XXX0
10 s
240 ms
X1:4 Reset
As soon as X1:5 is in error state the reset signal can be given, it is also possible
to give the reset signal after the power supply is available again.
X300:2 Phase failure
One period
300 ms
of power supply
Depending on
150 ms
1.2 s to 3.2 s
Usning a BM5030:
1.2 s < T < 6 50  C
int
C
ext
+1s+
the loading state
of the DC link
1)
X1:6 Ready-to-operate
X300:1 Signal bus ready-to-operate

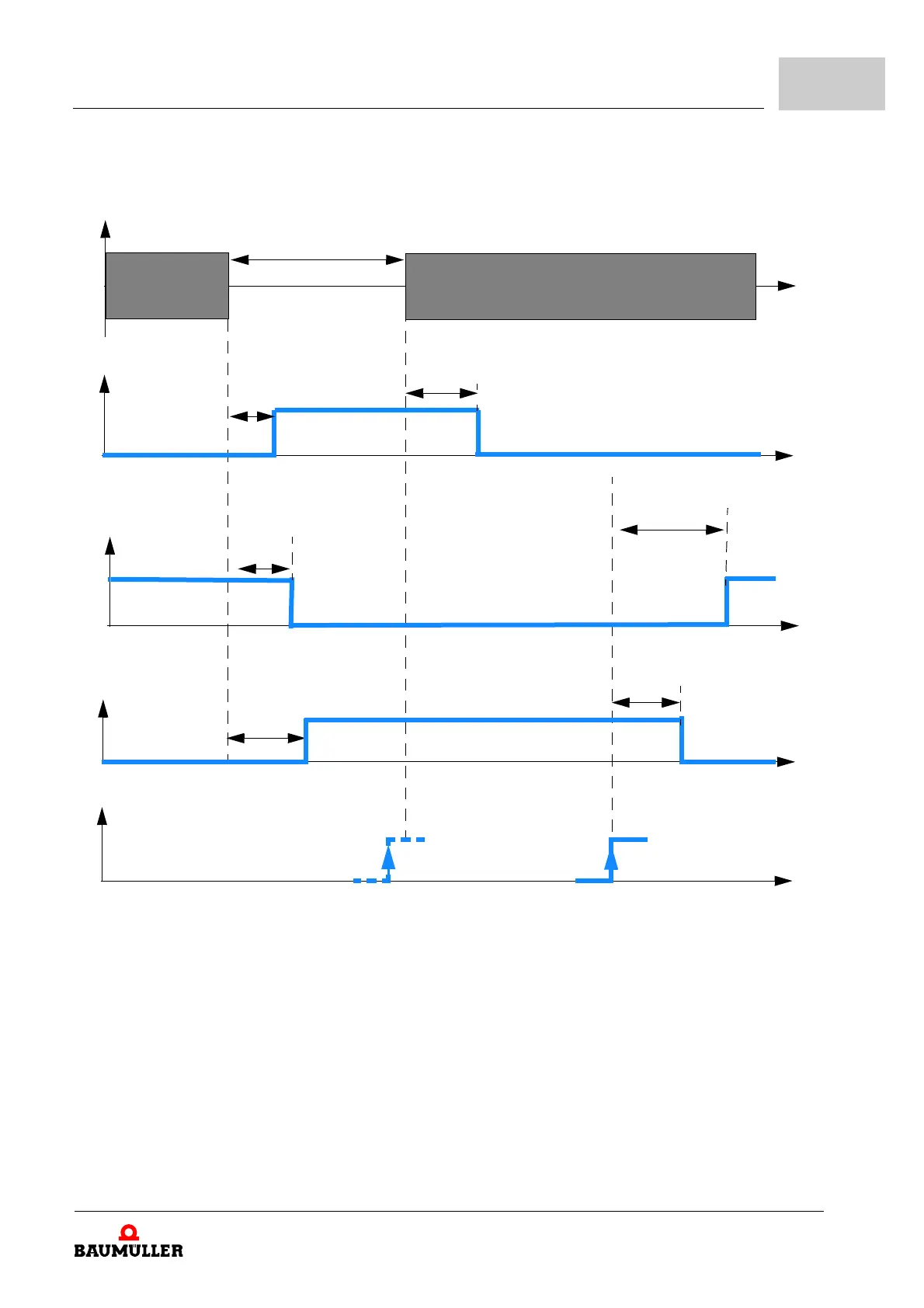

Figure 97: Timing diagram long power failure (> 10 s) BM50XX-XXX0
1)
The length of the time period until the Ready-to-operate signal is available again depends on the loading
state of the DC link. The higher the DC link voltage has been, the shorter the time period until the returning
of the Ready-to-operate signal will be.
