7.7 Grounding concept of the side-by-side mounted system
m Grounding concept, each device connected with PE
Power supply PE bar

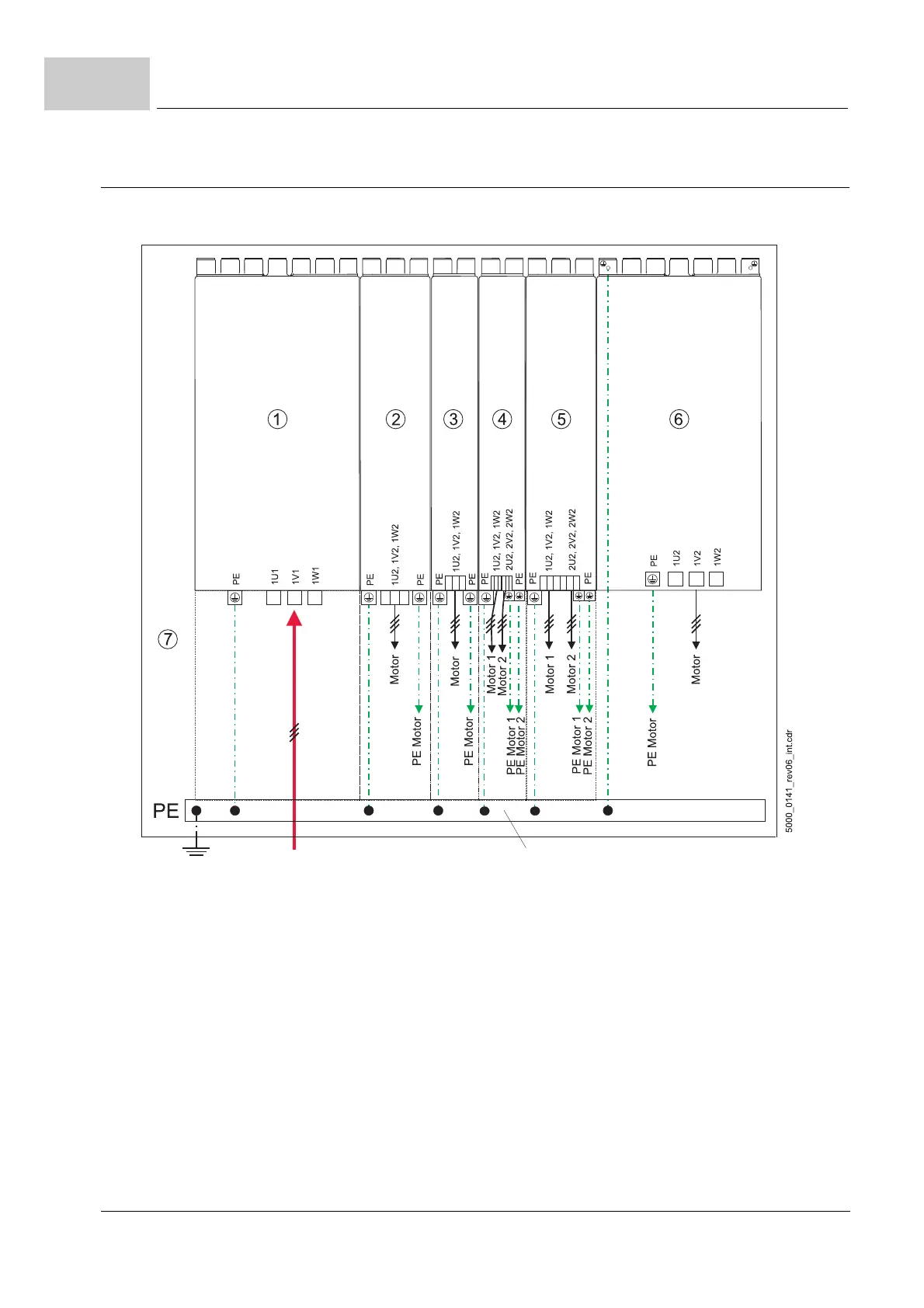

Figure 55: Grounding concept, each device with PE connection
1 (Active) mains rectifier unit: screw terminals for mains connection and PE
2 S
ingle axis unit 75 mm: screw terminals PE, screw terminals motor
3 S
ingle axis unit 50 mm: screw terminals PE, motor connector (1 x 3 pin)
1)
4 Double axis unit 50 mm: screw terminals PE, motor connector (2 x 3 pin)
2)
5 Double axis unit 75 mm: screw terminals PE, motor connector (1 x 6 pin)
6 S
ingle axis unit 175 mm: screw terminals PE, screw terminals motor
7 Mou
nting plate, thickness at least 3 mm
1)
power unit design 04 and above, refer to ZType code– as from page 84,
before that, 4-pole motor connector, see Instruction handbook b maXX 5000 5.09021.02 (Part No. 431081)
2)
power unit design 04 and above, refer to ZType code– as from page 84,
before that, 2x4-pole motor connector, see Instr
uction handbook b maXX 5000 5.09021.02 (Part No. 431081)
