Baumuller b maXX 5000 Series User Manual

Mounting instructions
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
116
of 328
6.3
6.3.3 Mounting of the DC link bar
Observe the following items when mounting the DC link bar:
m Po
sition of the chamber-bevel (detail Y)on bottom
Position of the screw threa
d (detail Z) on top. 
The correctly mounting of the distance bushings
makes it easier to disassemble the
unit in case of service and ensures the captivity of the distance bushings. 
Neck collar screw (1)
DC link bar (2)
Distance bushing (3)
BM5XXX DC link terminal (4)

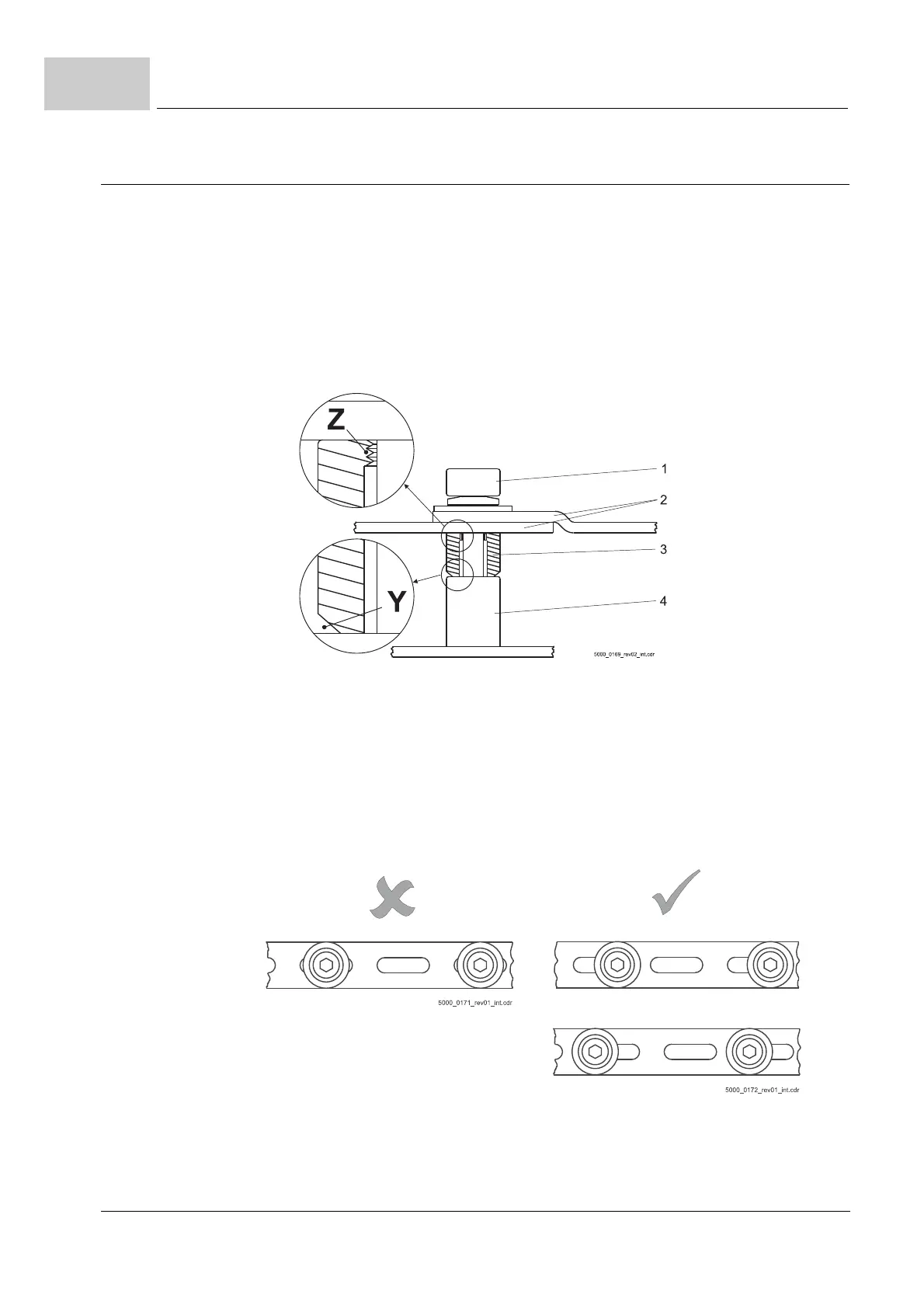

Figure 46: Correctly mounted DC link bar
m Distance bushing and neck collar screw
It is recommended to assemble the neck collar screw and the distance bushing to the
DC link b
ar before mounting the DC link bar. The correctly mounting of the distance
bushings makes it easier to disassemble the unit in case of service and ensures the
captivity of the distance bushings.
WRONG
CORRECT
Figure 47: Mounting of the neck collar screw
