Electrical connections
Instruction handbook
b maXX
5000
Document No.: 5.0902
1.16
Baumüller Nürnber
g GmbH
162
of 328
7.14
7.14.6
Electrical connections of the
single axis BM537X

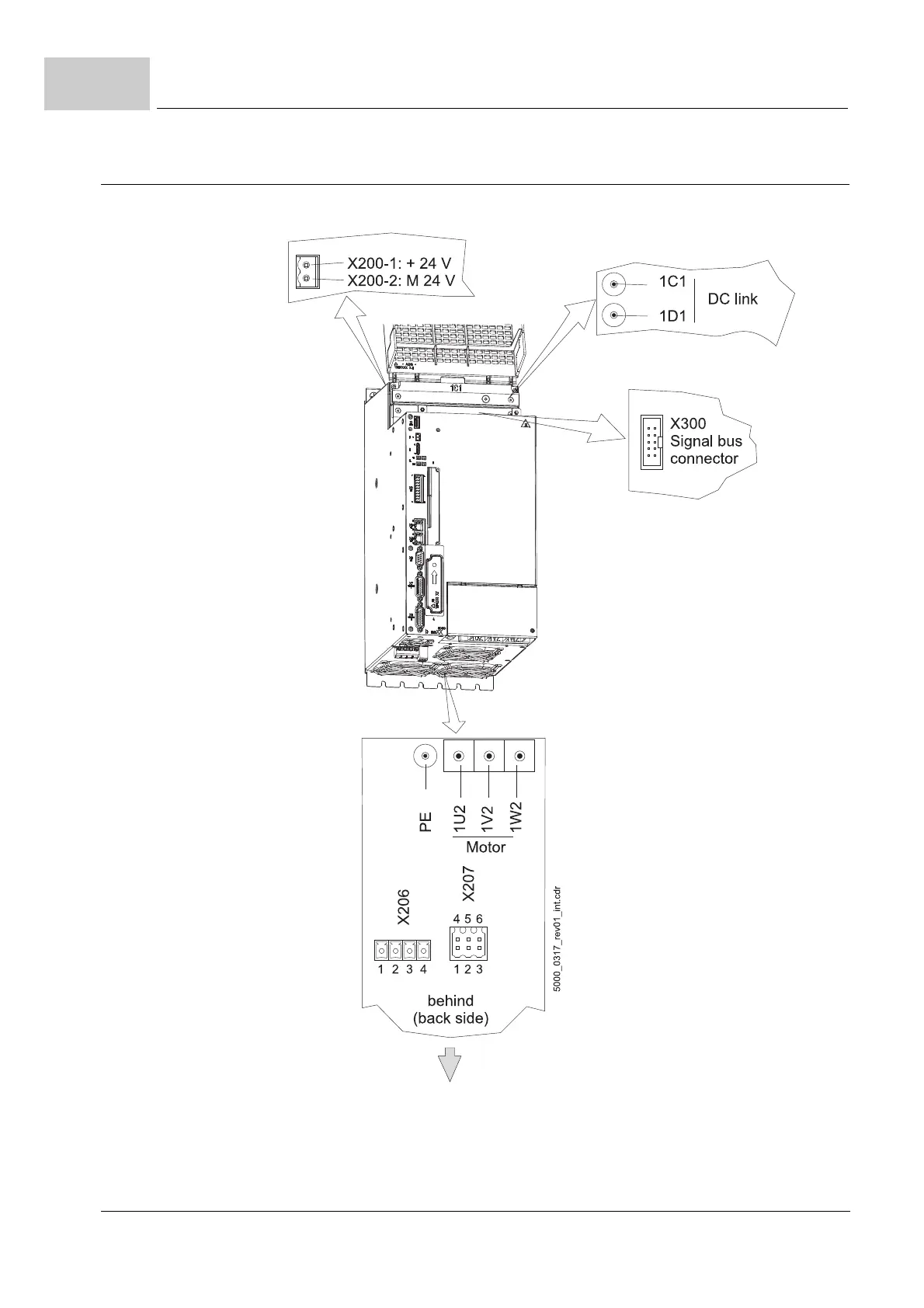

Figure 79:
Electr
ical connections
of the single axis
BM537X
161
163
