3.1
3.1.5 BM53XX dimensions

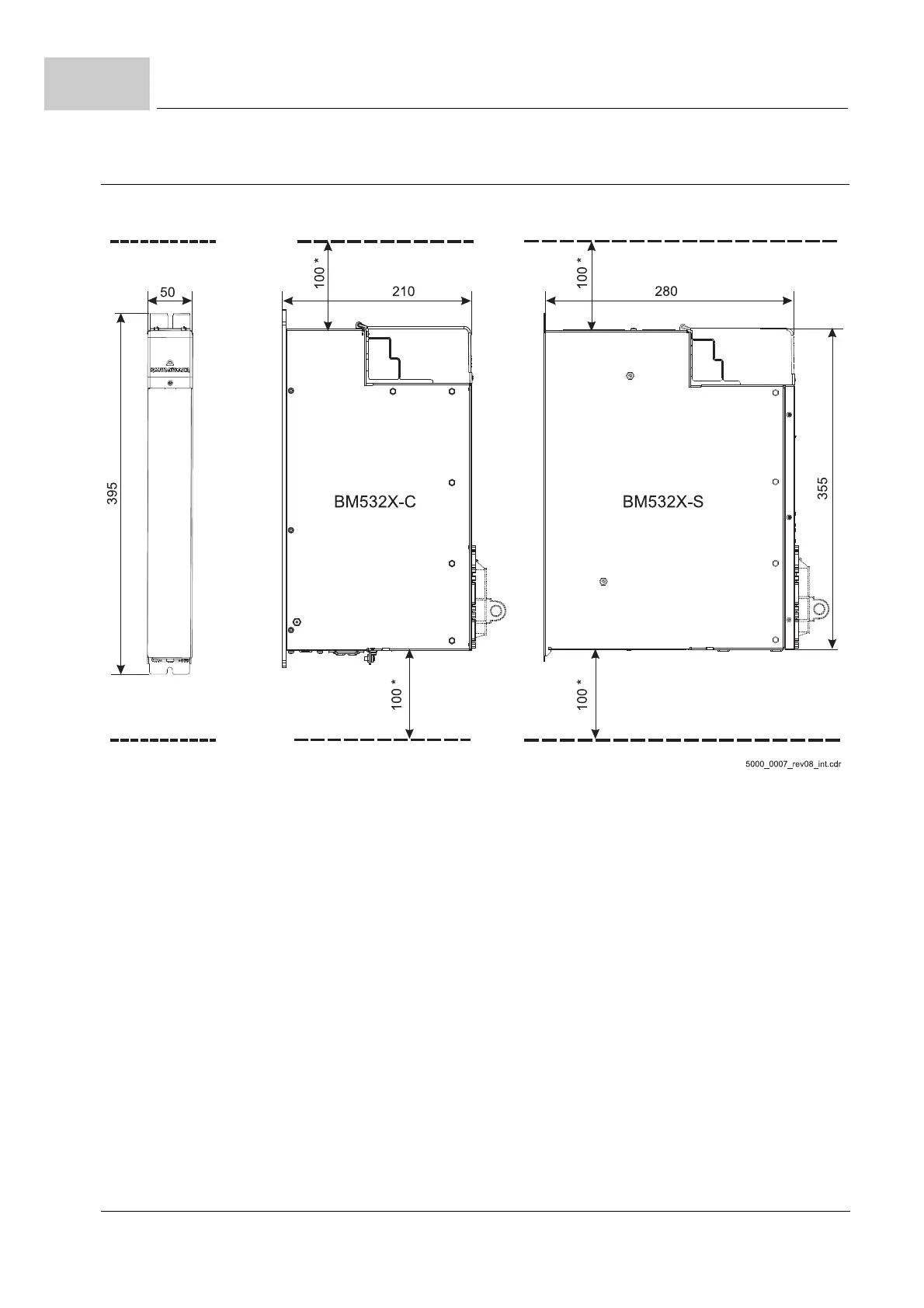

Figure 10: BM532X-C/-S dimensions
*: Observe minimum clearance.
Please follow the notes for mounting and
ZCo
oling– on page 56.
