Baumuller b maXX 5000 Series User Manual

Connection diagrams
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
150
of 328
7.13
7.13.3 Connection diagram single axis unit
7.13.3.1 Connection diagram BM5326, BM5327, BM5328
M
3
Depends on type
Ready-to-operate
Ready-to-operate
Digital output 1
Digital output 2
Digital output 3
Digital output 4
Depends on type
n.c.
n.c.
+24V
M24V
Digital input 1
Digital input 2
Digital input 3
Digital input 4
Digital input 5
Digital input 6
Digital input 7
Digital input 8 / pulse enable
PE 1U2 1V2 1W2

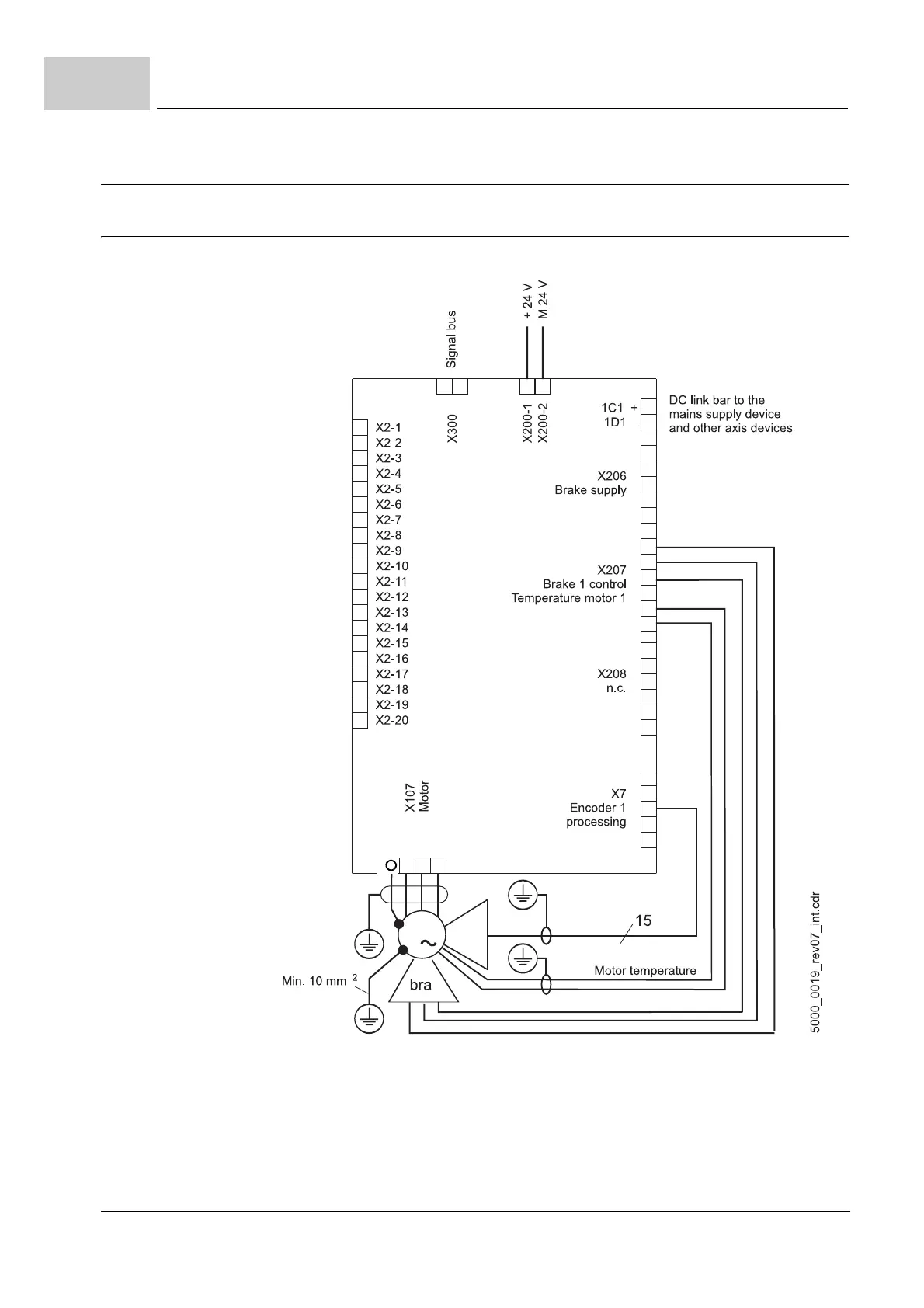

Figure 69: Connection diagram single axis units BM5326, BM5327, BM5328
