Baumuller b maXX 5000 Series - 8.2 Timing diagrams BM50 XX

Timing diagrams BM50XX
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
206
of 328
8.2

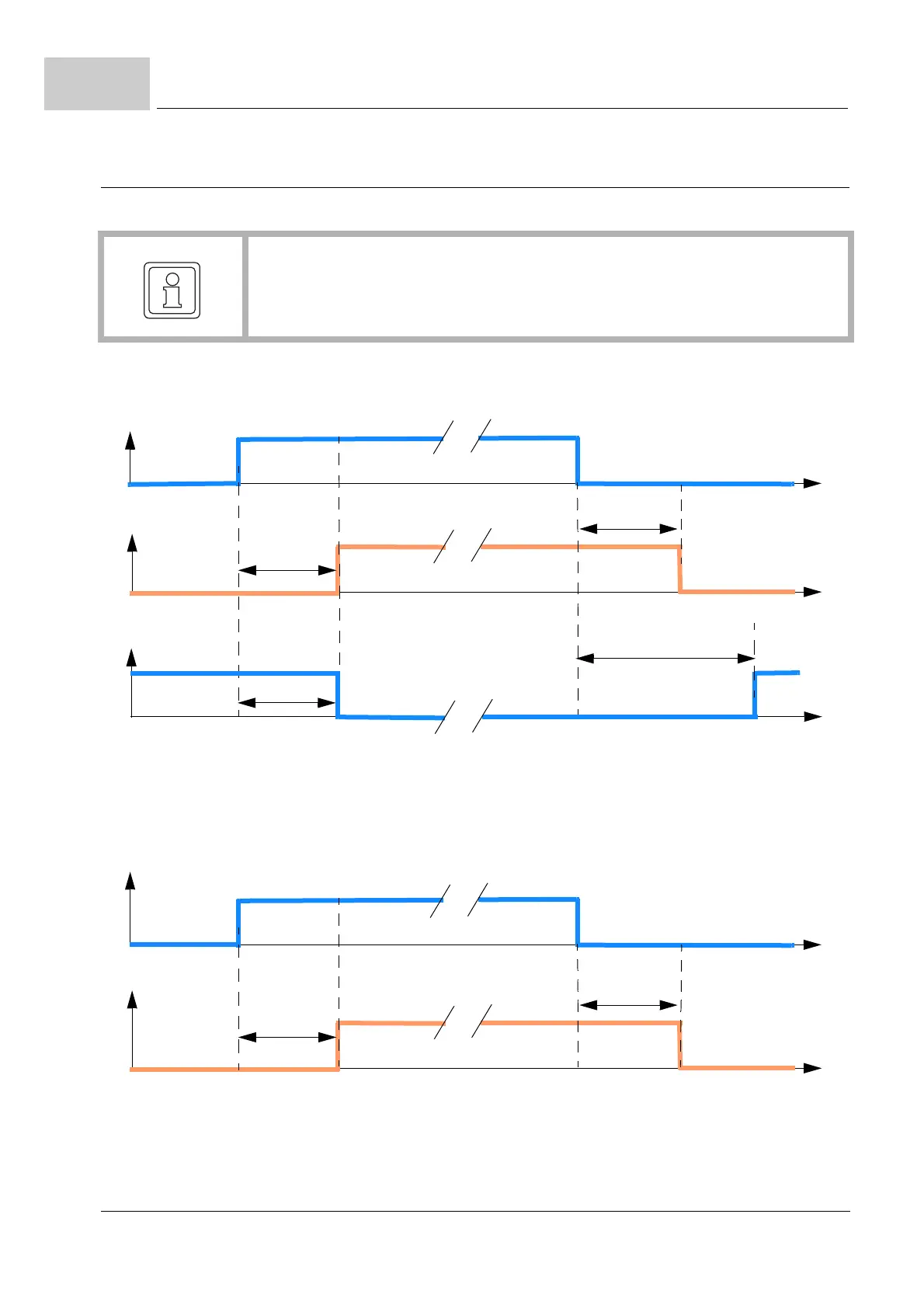

8.2 Timing diagrams BM50XX
HINWEIS!
Signals, that do not change its level are not considered.
m Quick disc
harge
X1:3 Quick discharge
X101 Voltage at
brake resistor
20 ms
20 ms
X1:6 Ready-to-operate
X300:1 Signal bus ready-to-operate
20 ms
2.6 s
DC link was totally
discharged
Figure 91: Timing diagram quick discharge
m Brake resistor switch
X300:3 Signal bus Brake resistor ON
X101 Voltage
on brake resistor
1.5 ms
1.5 ms
Figure 92: Timing diagram brake resistor switch
