Mounting
Instruction handbook b maXX 5000
Document No.: 5.09021.16
117
of 328
6
m DC link bar
Observe the correct mounting of the DC link ba
r. There should no mechanical stress
affect to the drill hole.
WRONG
CORRECT

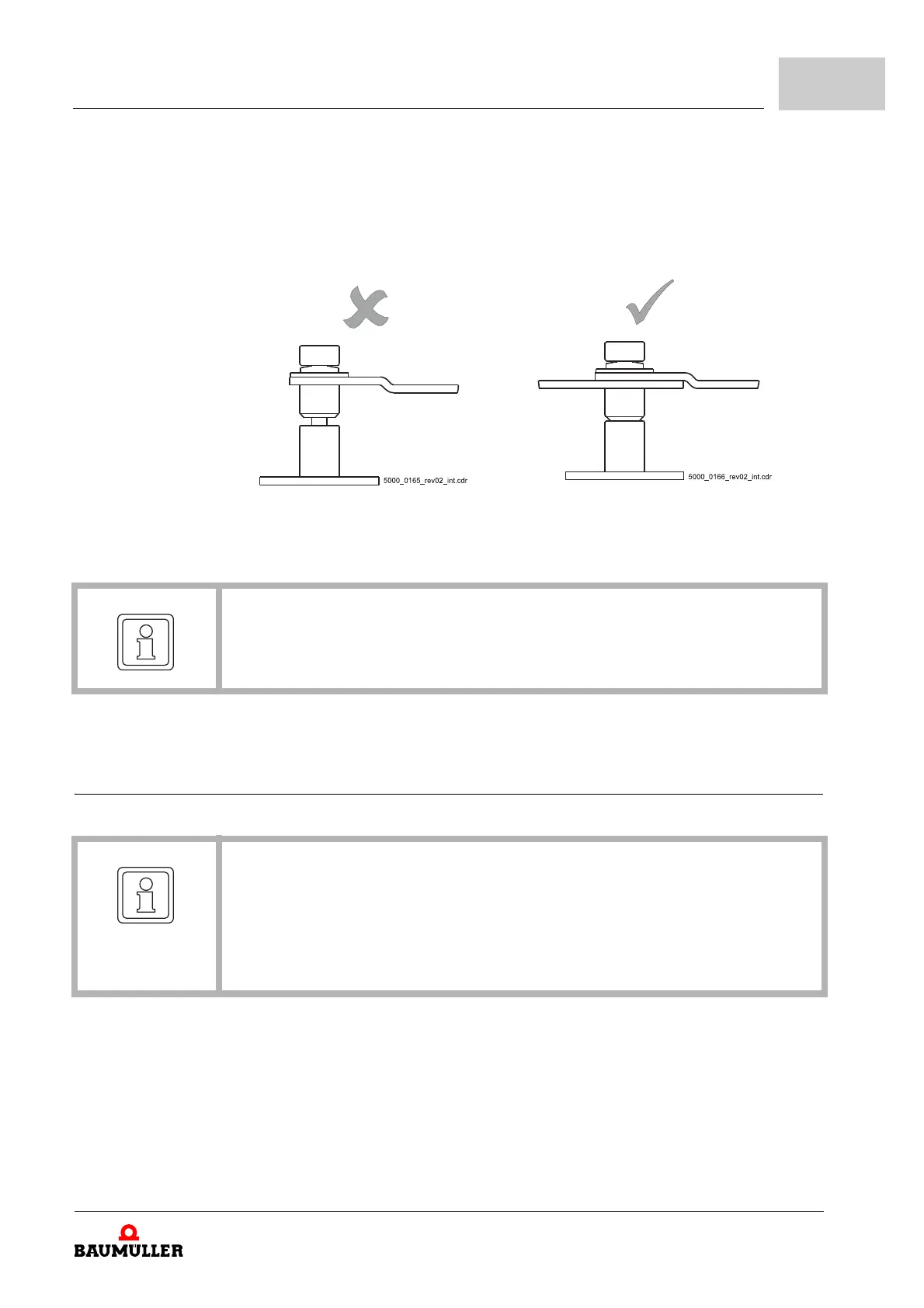

Figure 48: Mounting of the DC link bar
NOTE!
The DC link bar must not overlap the first or last fixing bolt of the rack system.
Cut the DC link bar therefore.
6.3.4 Demounting
NOTE!
The yellow cover plate can be removed when mounting/demounting air-cooled devic-
es and there is not enough space above the de
vice (min. 15 cm) for lifting up the 
cover.
The yellow cover plate must be removed when replacing the cold plate devices, al-
ways.
