Baumuller b maXX 5000 Series - Connection Diagram BM537 X

Connection diagrams
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
152
of 328
7.13
7.13.3.3 Connection diagram BM537X
Depends on type
Ready-to-operate
Ready-to-operate
Digital output 1
Digital output 2
Digital output 3
Digital output 4
Depends on type
n.c.
n.c.
+24V
M24V
Digital input 1
Digital input 2
Digital input 3
Digital input 4
Digital input 5
Digital input 6
Digital input 7
Digital input 8 / pulse enable

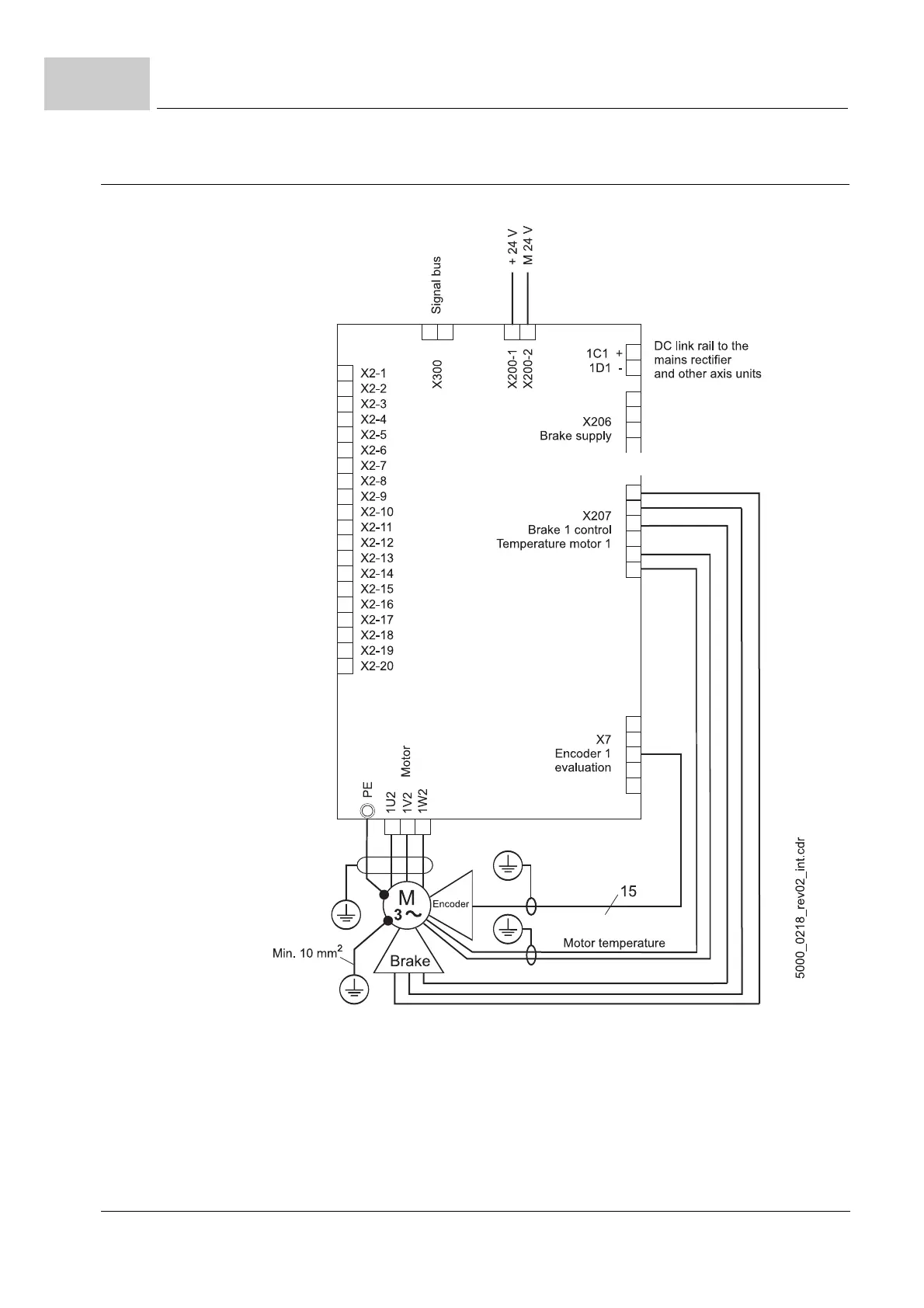

Figure 71: Connection diagram single axis units BM537X
