Baumuller b maXX 5000 Series - 4.4.2 Display and operating elements BM51 XX

Display and operating elements
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
92
of 328
4.4
4.4.2 Display and operating elements BM51XX
X1 Service interface
H1 7 segment display
refer to Z7-
segment display BM51XX– on page 93
LED
H11 - H14

Meaning: refer to ZLED dis
play BM51XX– on page 94.
Address switch
S1 - S4

Setting: refer to ZSetting
the IP address with address
switches– a
s from page 100.
LED
H31
H32
H41
H42
Fieldbus, depending on type 
(refer to ZType code– as fr
om page 84)
Meaning:
BM51XX-XXXX-XXXX-00XX
no function
BM51XX-XXXX-XXXX-01XX
ZLE
D EtherCAT
®
.– on page 98
BM51XX-XXXX-XXXX-02XX
ZLE
D VARAN– on page 98
BM51XX-XXXX-XXXX-04XX
ZLE
D POWERLINK
®
.– on page 99

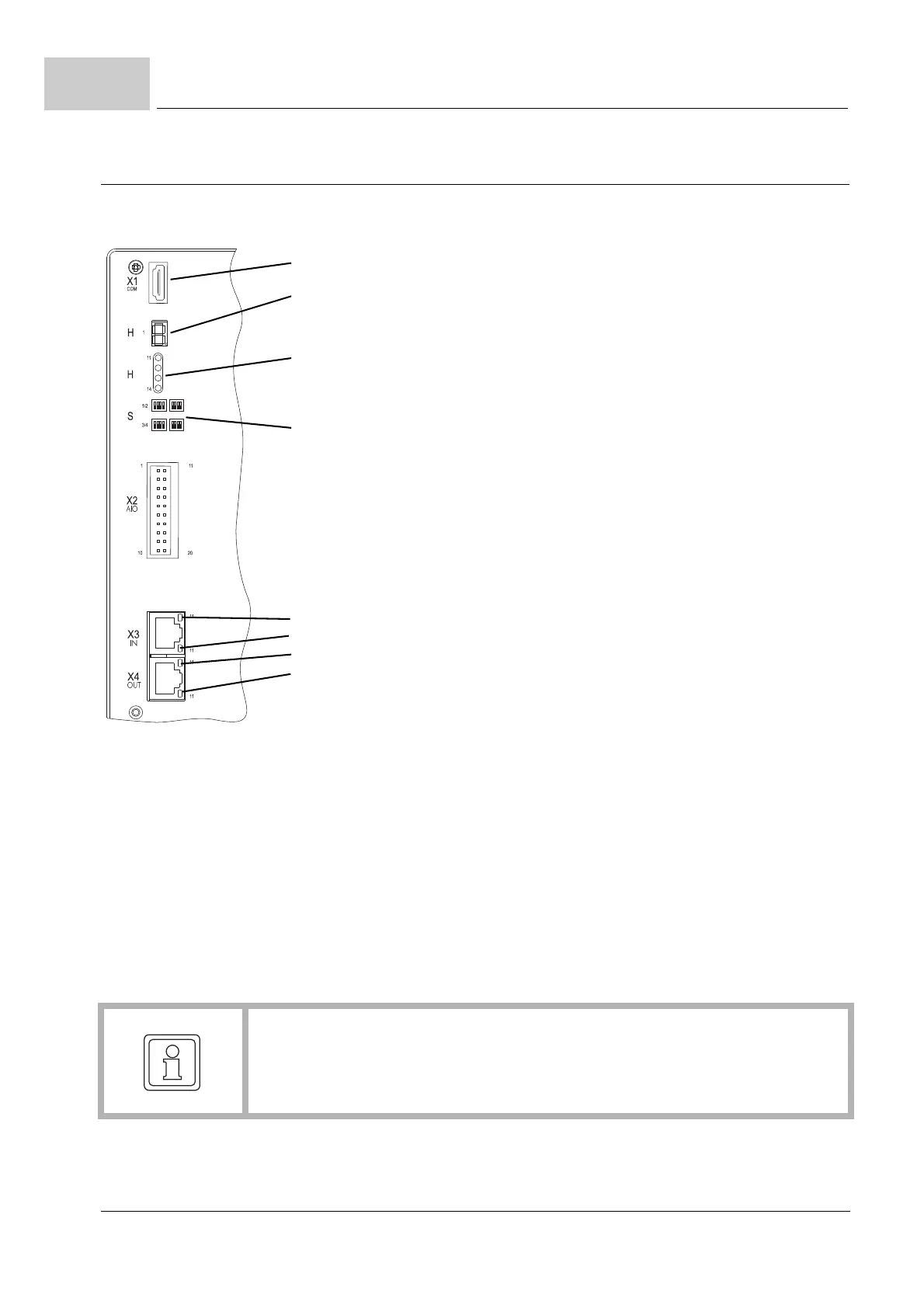

Figure 37: Display/operating elements BM51XX
NOTE!
Only the service cable BM5-K-USB-XXX is allowed to be used for the service inter-
face X1, refer to ZService interfac
e– on page 205 and ZService interface cable– on
page 250.
