7.9.2.2 Connecting the shield
It is recommended to connect the shielding according following figure, see also ZAcces-
sories kit shielding– as from
page 286.
1 p
repare motor cable according figure
2 r
emove the motor temperature cable’s shield from the cable
3 wra
p motor temperature cable around motor cable at least 1 turn, form no loop.
RIGHT
WRONG
Shield
motor cable
Motor cable






























Motor temperature
cable
Shield
motor temperature
cable































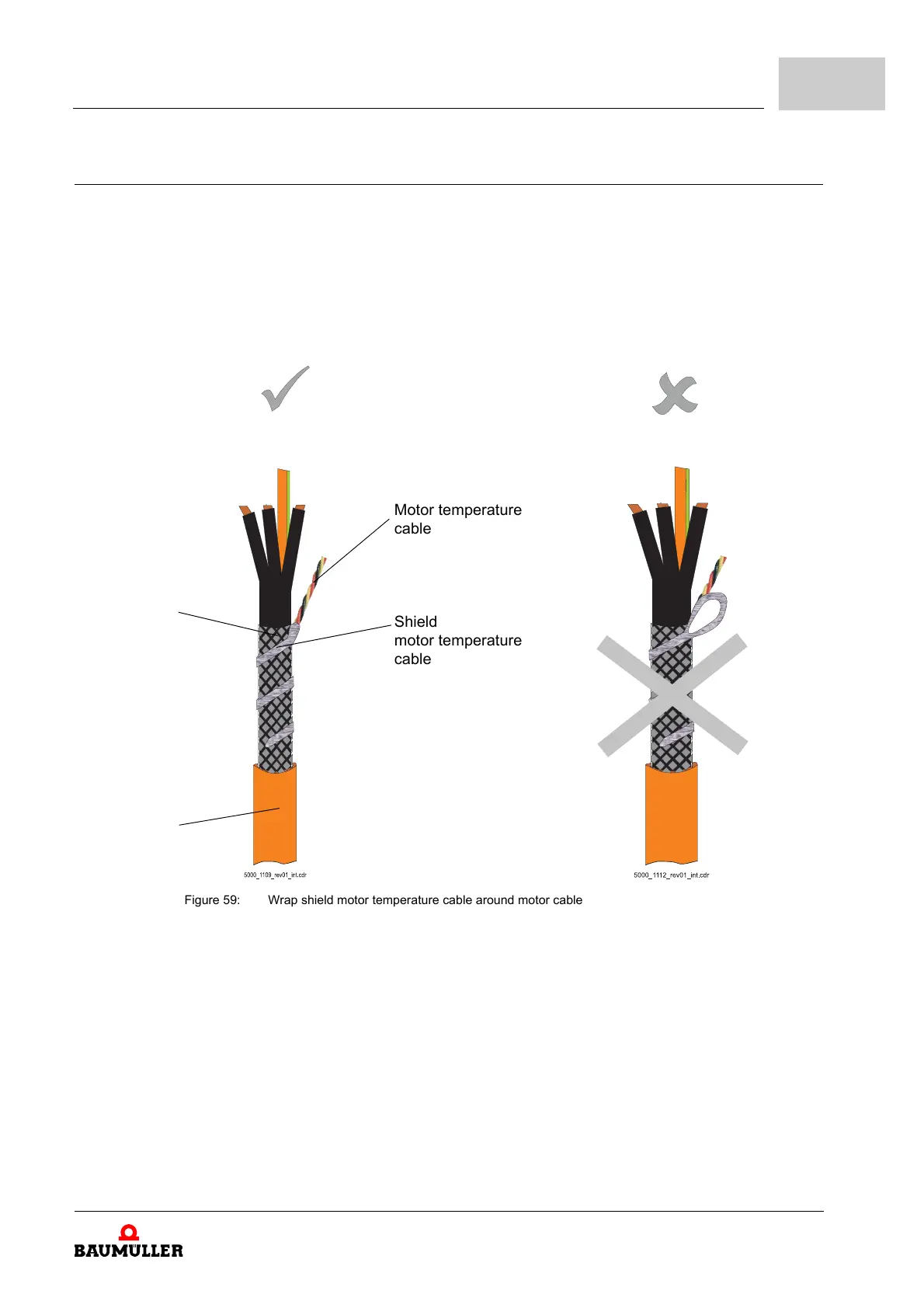

Figure 59: Wrap shield motor temperature cable around motor cable
