Baumuller b maXX 5000 Series - BM519 X-F Dimensions

Connection tube G1/2“
flat sealing screw joint
with anti-twist protection
BM519X-F

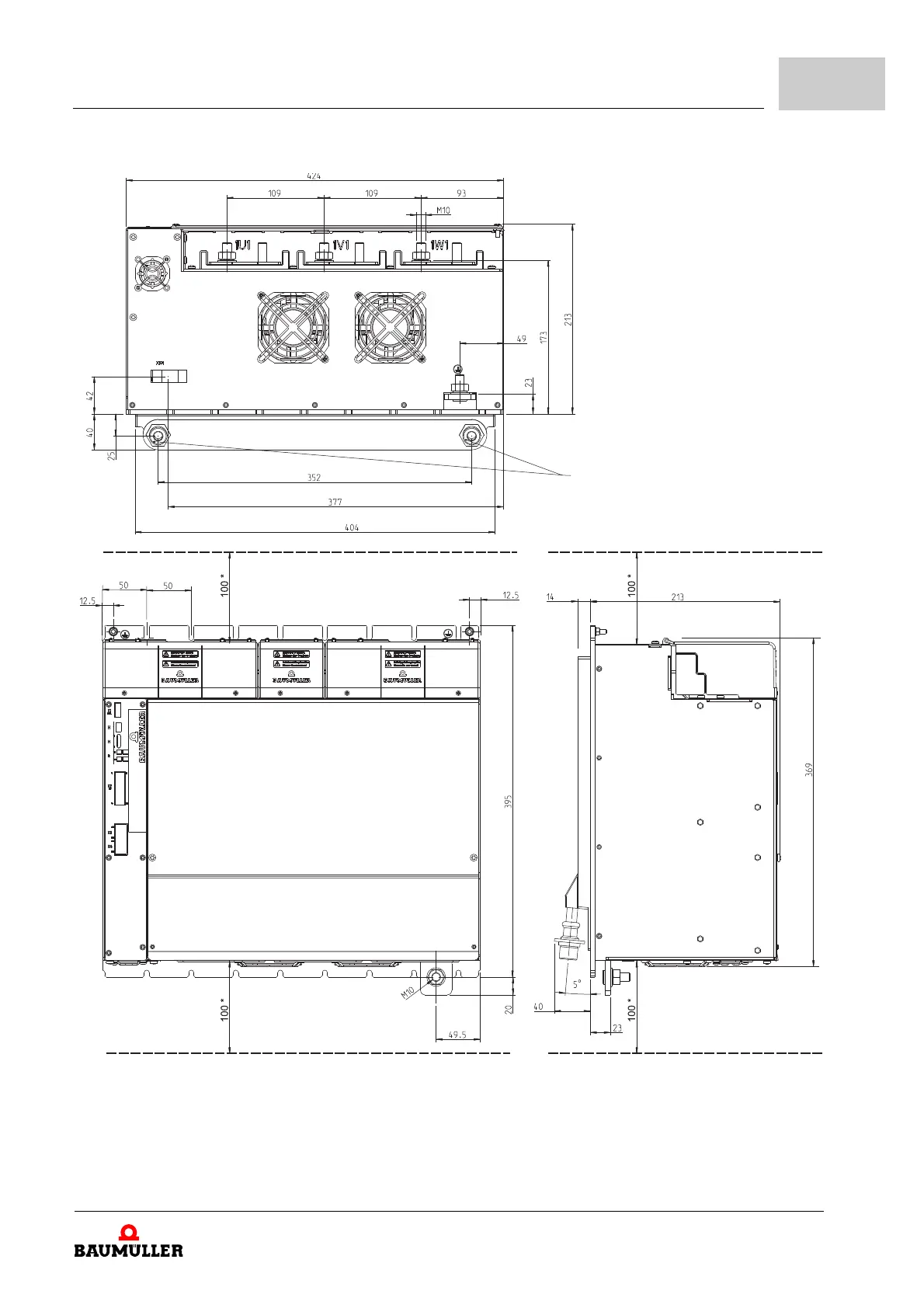

Figure 9: BM519X-F dimensions
*: Observe minimum clearance.
Please follow the notes for mounting and ZC
ooling– on page 56.
