Baumuller b maXX 5000 Series - 7.15.3 Front side axis units BM53 XX

Installation
Instruction handbook b maXX 5000
Document No.: 5.09021.16
175
of 328
7

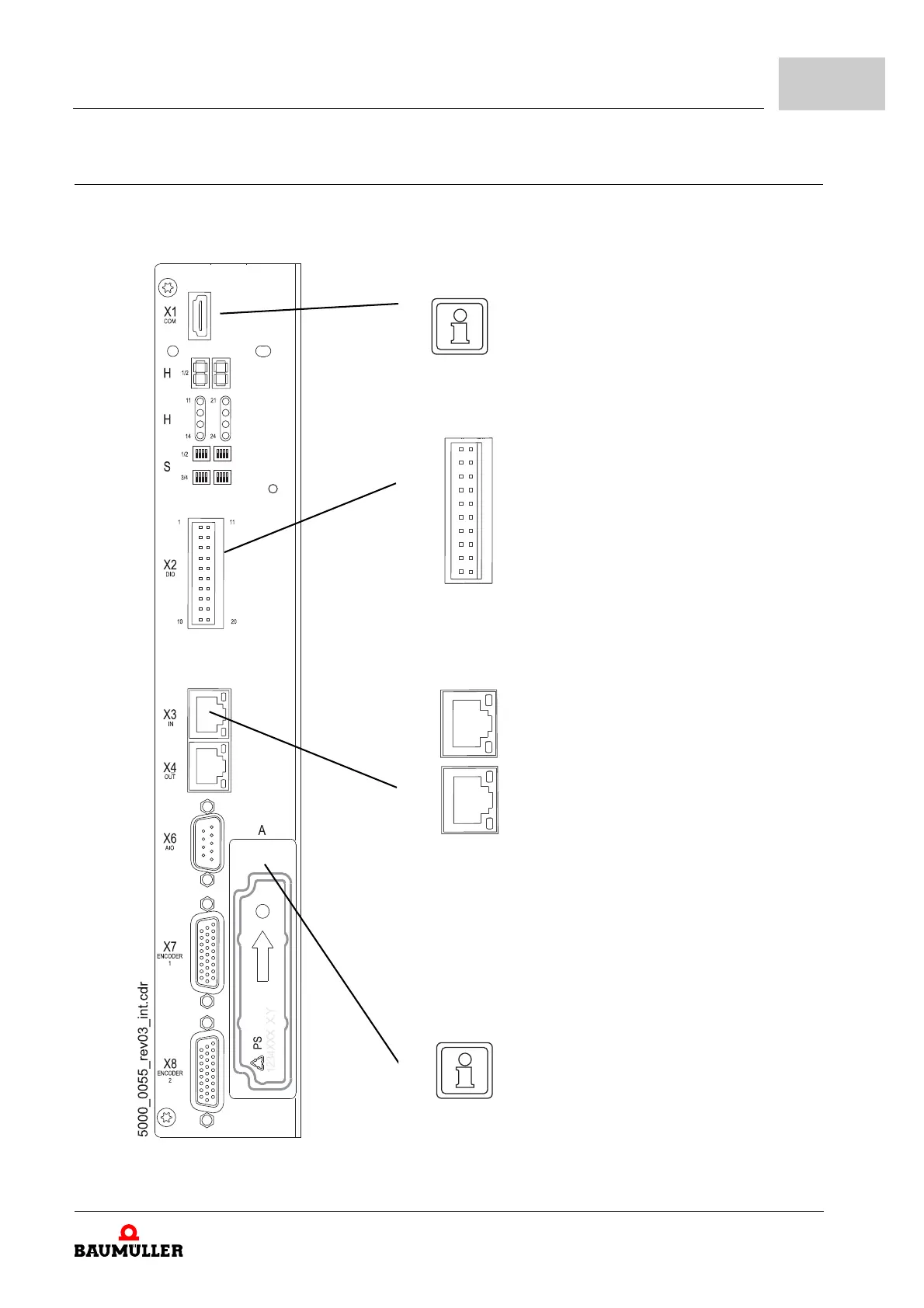

7.15.3 Front side axis units BM53XX
Type code: 
BM53XX-XXXX-XXXX-XX01 or XX06
X1: Service interface
NOTE!
Only the service cable BM5-K-USB-XXX is
allowed to be used for the service interface X1,
refer to ZService interface– on page 205
X2 Digital inputs/outputs *)
1:see Zpage 178–
2 to 3: BB1 On (SELV/PELV)
4 to 7: Digital output (SELV/PELV)
8: see Zpage 178–
9 to 10: BB2 On (SELV/PELV). double axis
11: +24V (SELV/PELV)
12: M24V (SELV/PELV)
13: Fast digital input 1 (SELV/PELV)
14: Fast digital input 2 (SELV/PELV)
15 to 18: Digital input (SELV/PELV)
19: Digital input 7
20: Digital input 8/ pulse enable 1
111
10 20
BM53XX-XXXX-XXXX-01XX and
BM53XX-XXXX-XXXX-07XX
X3 EtherCAT
®
-IN X4 EtherCAT
®
-OUT
BM53XX-XXXX-XXXX-02XX
X3 VARAN-IN X4 VARAN-OUT
BM53XX-XXXX-XXXX-03XX
X3 CANopen
®
-IN X4 CANopen
®
-OUT
BM53XX-XXXX-XXXX-04XX
X3 POWERLINK
®
-IN X4 POWERLINK
®
-OUT
1: TX+ 2: TX-
3: RX+ 6: RX-
4, 5, 7, 8: reserved
A: Assembly opening additional module
The delivery status is: empty
The operation is only permitted / possible with
an additional module BM5-O-SAF-XXX
(Mounting see manual 5.09013 and/or
5.11016)
It is not allowed to plug any other modules in!
