7.13.2 Connection diagram for the BM51XX active mains rectifier unit

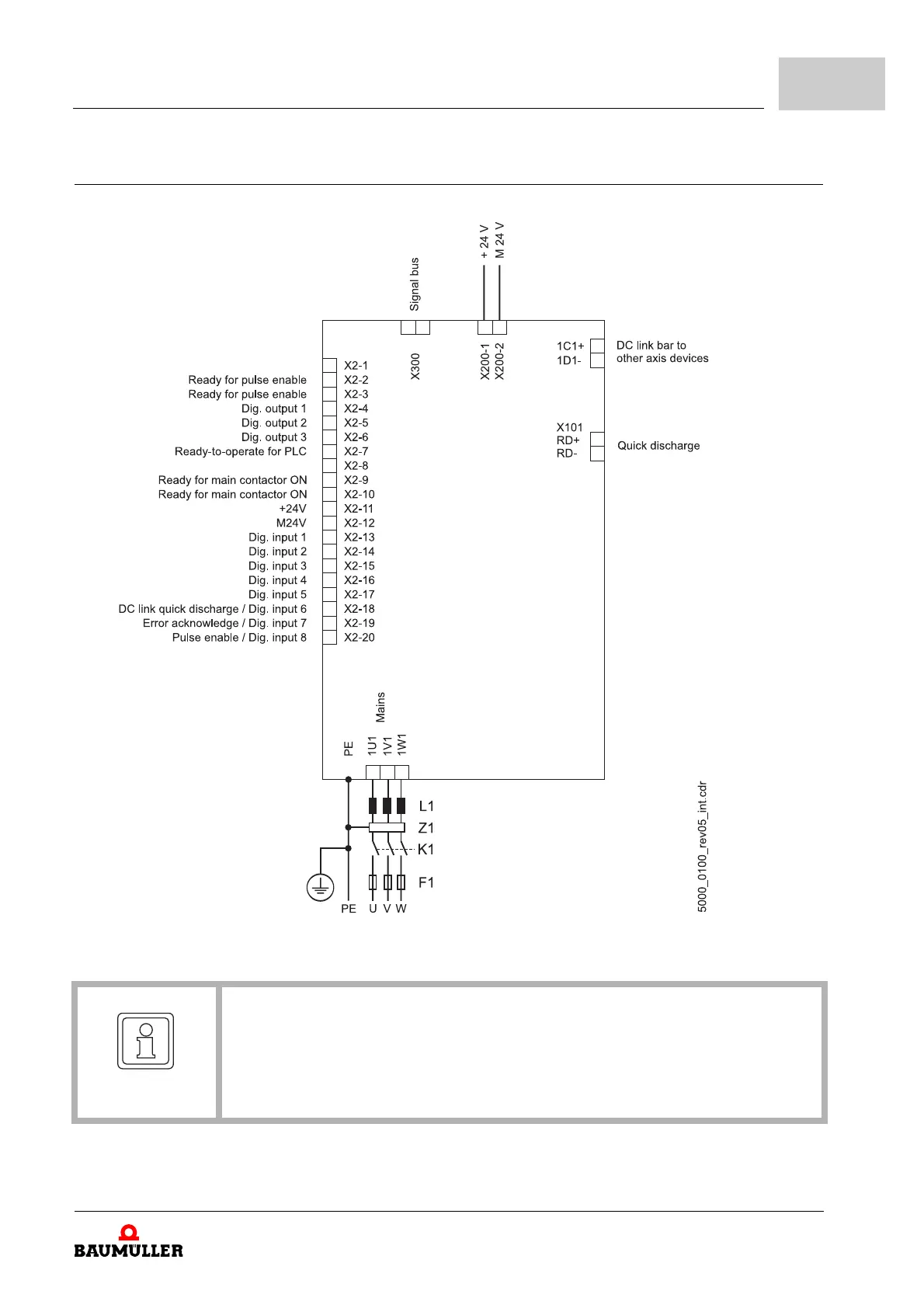

Image 66: Connection diagram for the BM51XX
NOTE!
The use of a power choke (L1) is mandatory for the function of the active mains rec-
tifier unit. Operation without power choke is not allowed.
The mains cable must be led through a toroidal core to ensure an operation in a C2
en
vironment (see also ZMounting
of toroidal cores– as from page 119).
