Installation
Instruction handbook
b maXX
5000
Document No.: 5.09021.16
147
of 328
7
7.13.2.1

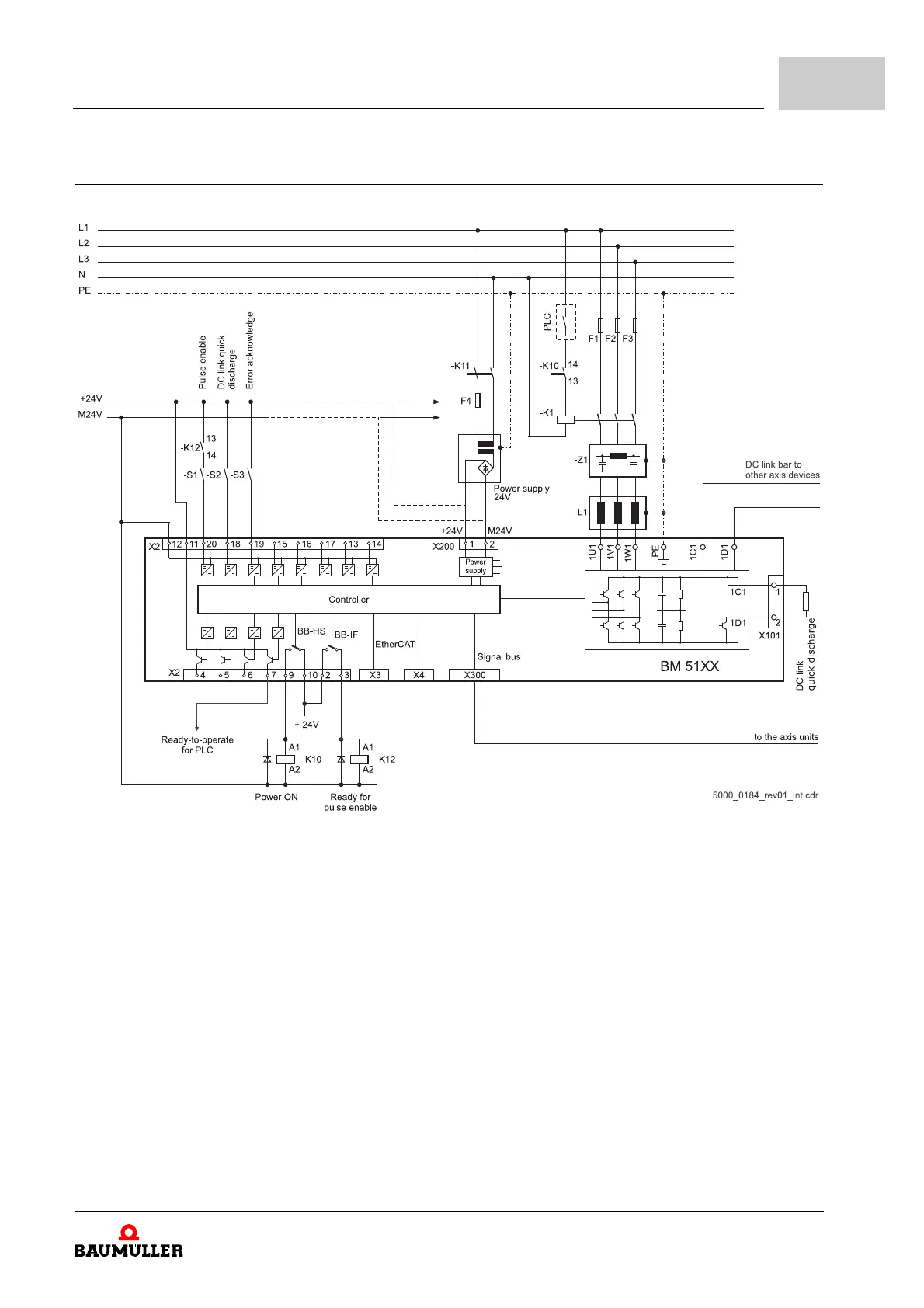

Connection proposal BM51XX
Image 67:
Connection proposal BM51XX
146
148
