Shielding plan side-by-side mounted system
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
136
of 328
7.9
4 from below wrap conductive metallic adhesive tape around
Motor cable
Motor temperature cable
conductive metallic adhes
ive
tape

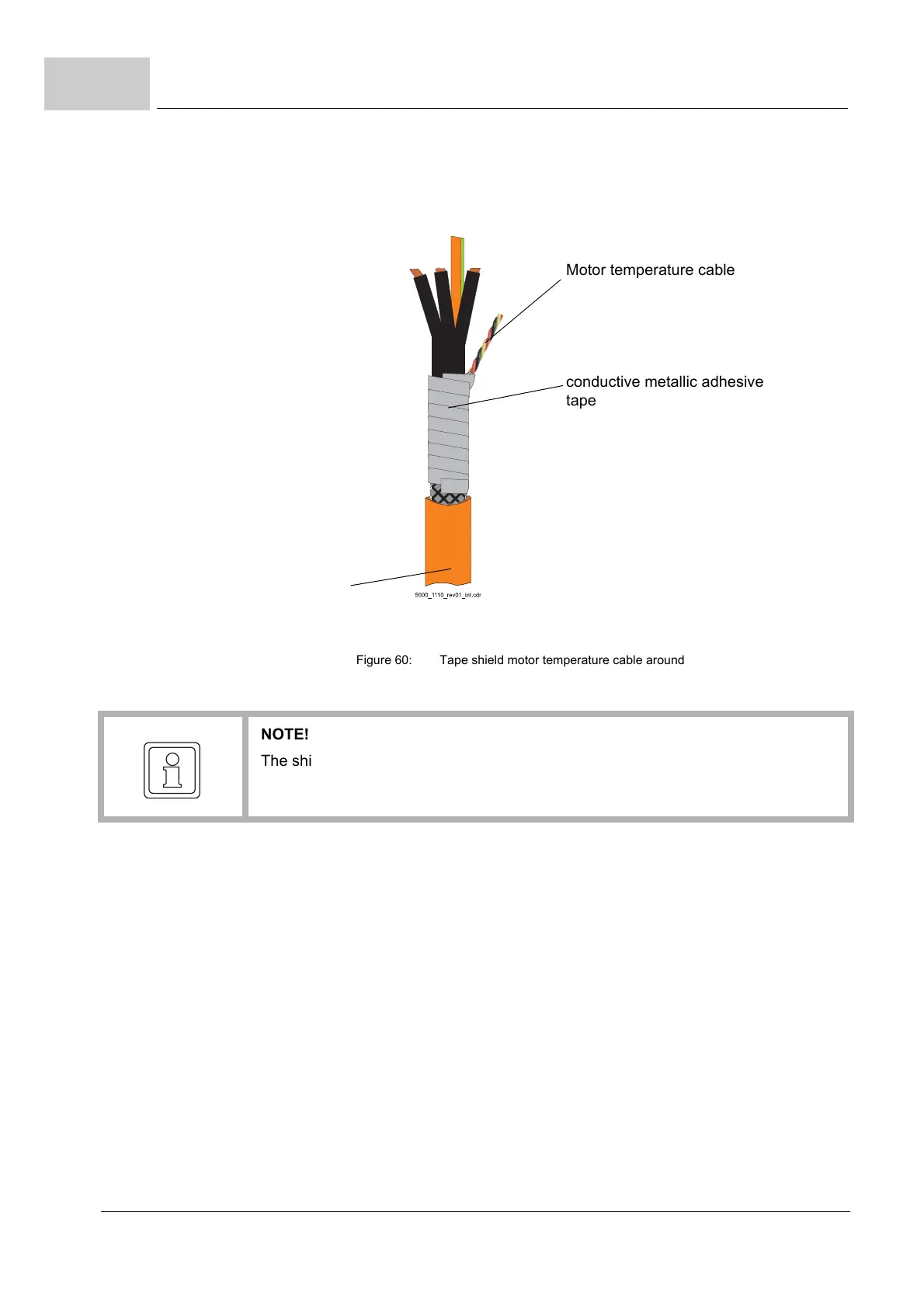

Figure 60: Tape shield motor temperature cable around
NOTE!
The shielding of the motor temperature cable and the shielding of the motor cable is
wrapped together with a conductive metallic adhesive tape.
