158 Appendix F: Low / Very Low Battery Alarm Instructions

Manual 41018v0800 SIGMA Spectrum Infusion System

Revision B Operator’s Manual

Low Battery Alarm Instructions

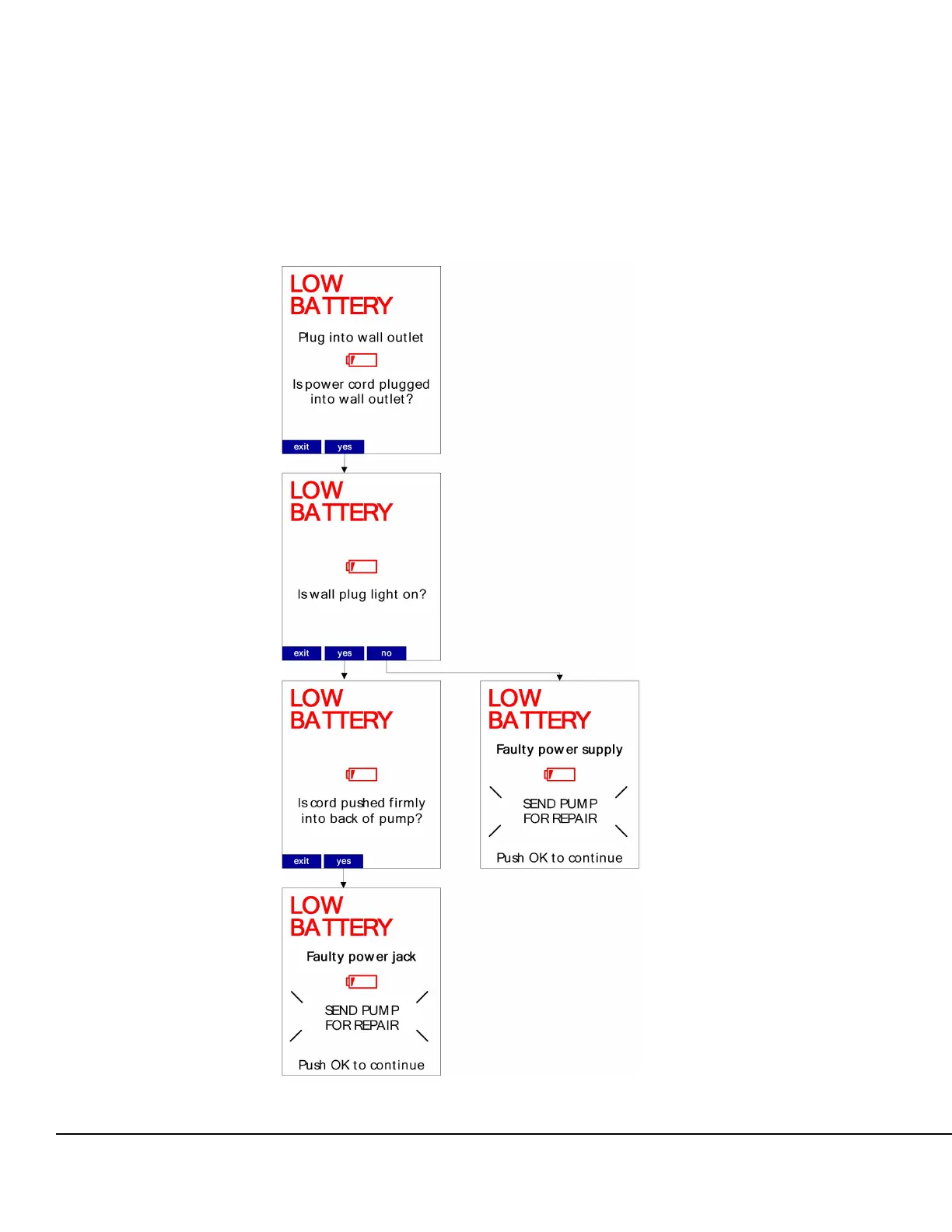

The Pump displays the following screen-by-screen instructions when the Low Battery alarm is

activated.
