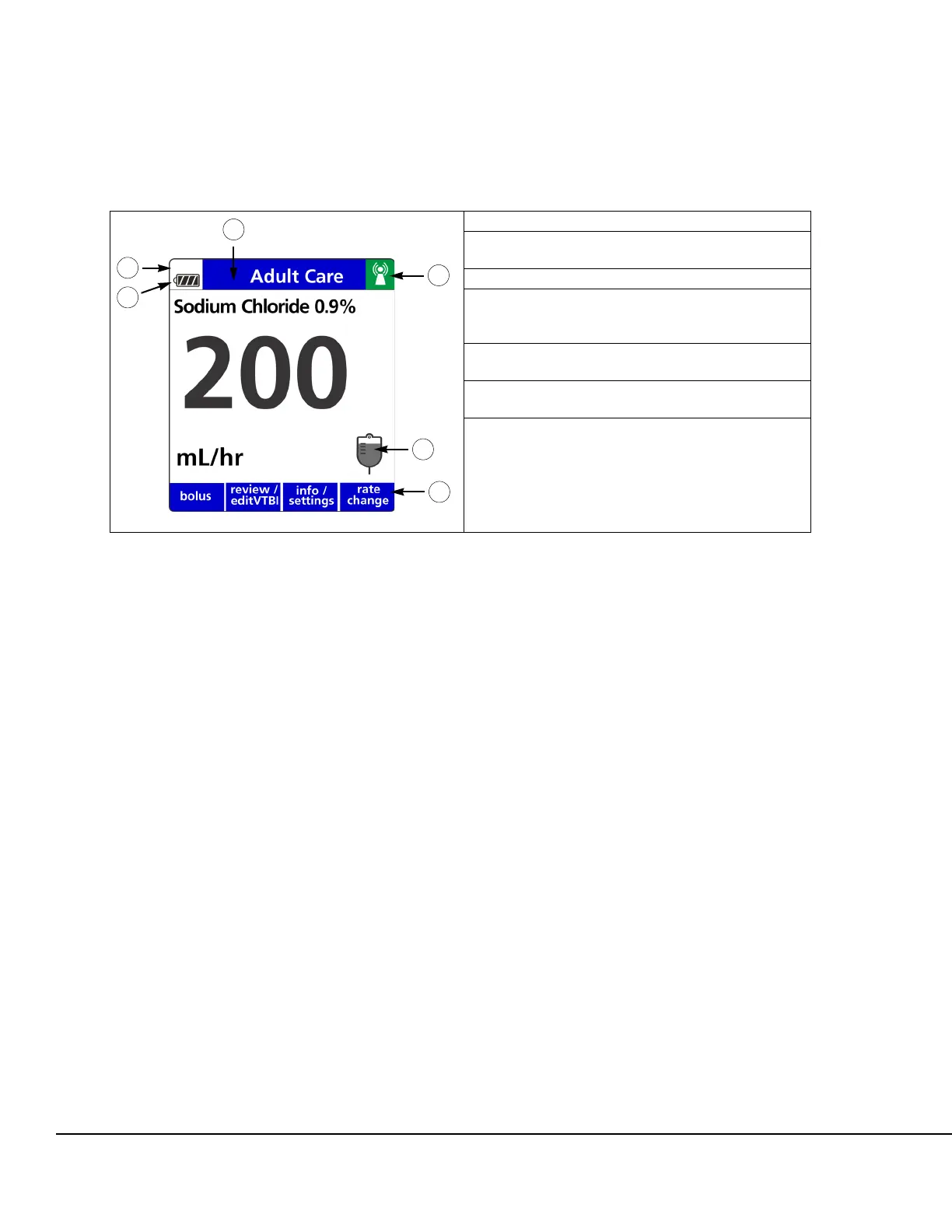

SIGMA Spectrum Infusion Pump Display Features
1 Title bar
2 Network status. For more information, see
“Pump Icons” on page 21.
3 Infusion Running screen status indicator.
4 Soft key labels. For more information, see
“Keys Used to Program and Operate the Pump”
on page 22.
5 Power status. For more information, see “Pump
Icons” on page 21.
6 Keypad lock status. For more information, see
“Keypad Lock” on page 100.
Figure 7. SIGMA Spectrum Infusion Pump Display Features.
1
2
3
4
5
6
