18 System Components
Manual 41018v0800 SIGMA Spectrum Infusion System
Revision B Operator’s Manual
SIGMA Spectrum Infusion Pump, Front View
SIGMA Spectrum Infusion Pump, Front View with Door Open
1 Wireless battery antenna. See Figure 6.
2 Door
3 Pump display. See Figure 7.
4 Soft keys
5 Hard keys
6 IrDA port

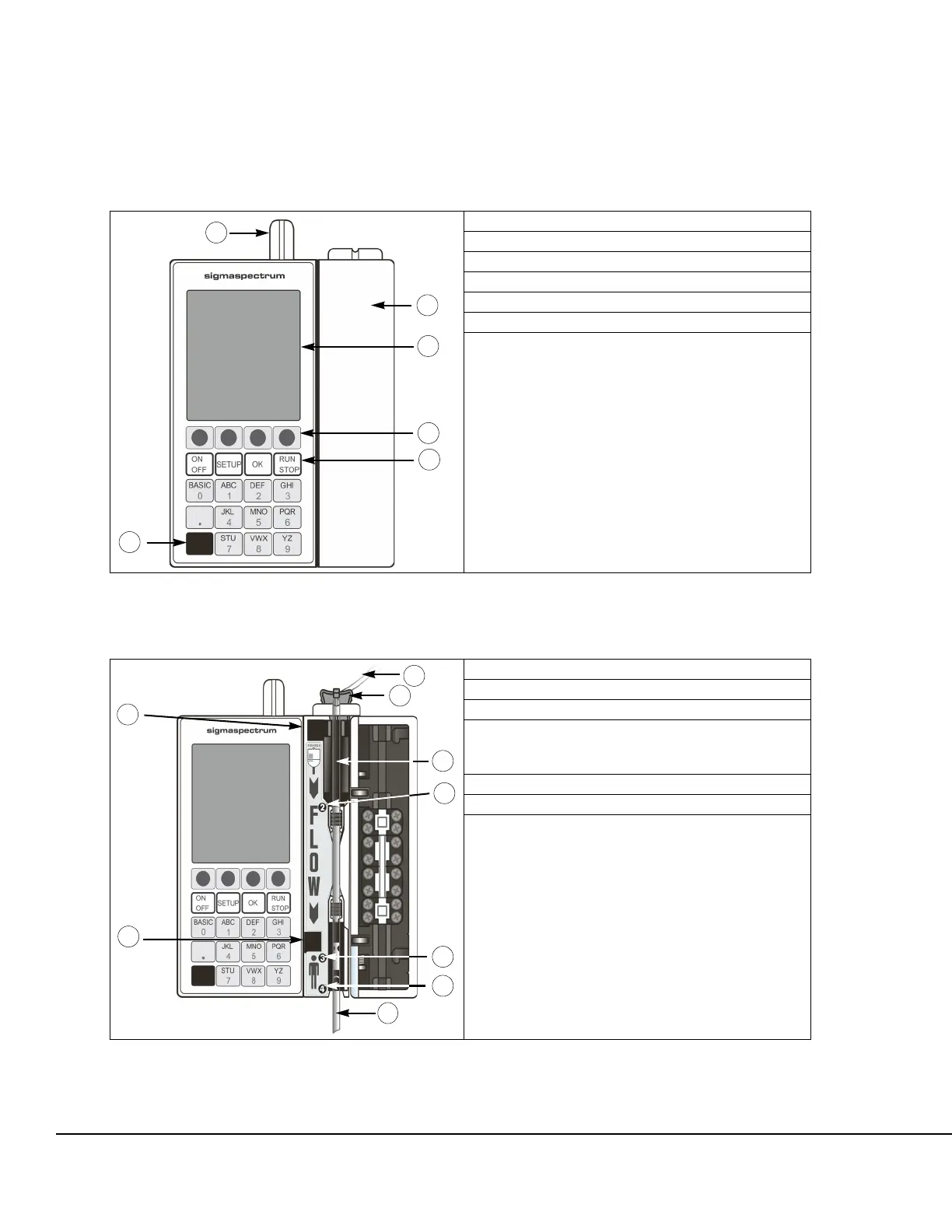

Figure 3. SIGMA Spectrum Infusion Pump, Front View.
1 Tubing from IV container
2 Slide Clamp and tubing loading guide 1
3 Tubing channel
4 Tubing guides 2, 3 and 4. These loading guides
are indicated by numbers highlighted in red
circles.
5 Tubing to patient
6 Door latches
Figure 4. SIGMA Spectrum Infusion Pump, Front View with Door Open.
1
3
4
5
6
2
1
3
5
2
4
4
4
6
6
