baxter 35700BAX2 - SIGMA Spectrum Infusion Pump, Rear View Without Battery; SIGMA Spectrum Infusion Pump, Rear View with Battery Installed

System Components 19
SIGMA Spectrum Infusion System Pump Operating Software Version 8.00
Operator’s Manual For Use With MDL Version 8.0
SIGMA Spectrum Infusion Pump, Rear View Without Battery
SIGMA Spectrum Infusion Pump, Rear View with Battery Installed
1 Battery gasket
2 Battery pin set
3 Drainage channel
4 Screw holes for cord retainer, two screw holes
above and one below the plug adaptor
5 6-pin plug adaptor
6 Speaker vent
7 Battery pocket
8 Pump side adaptor
9 Thumb screw
10 Slide Clamp keyhole color sensor assembly

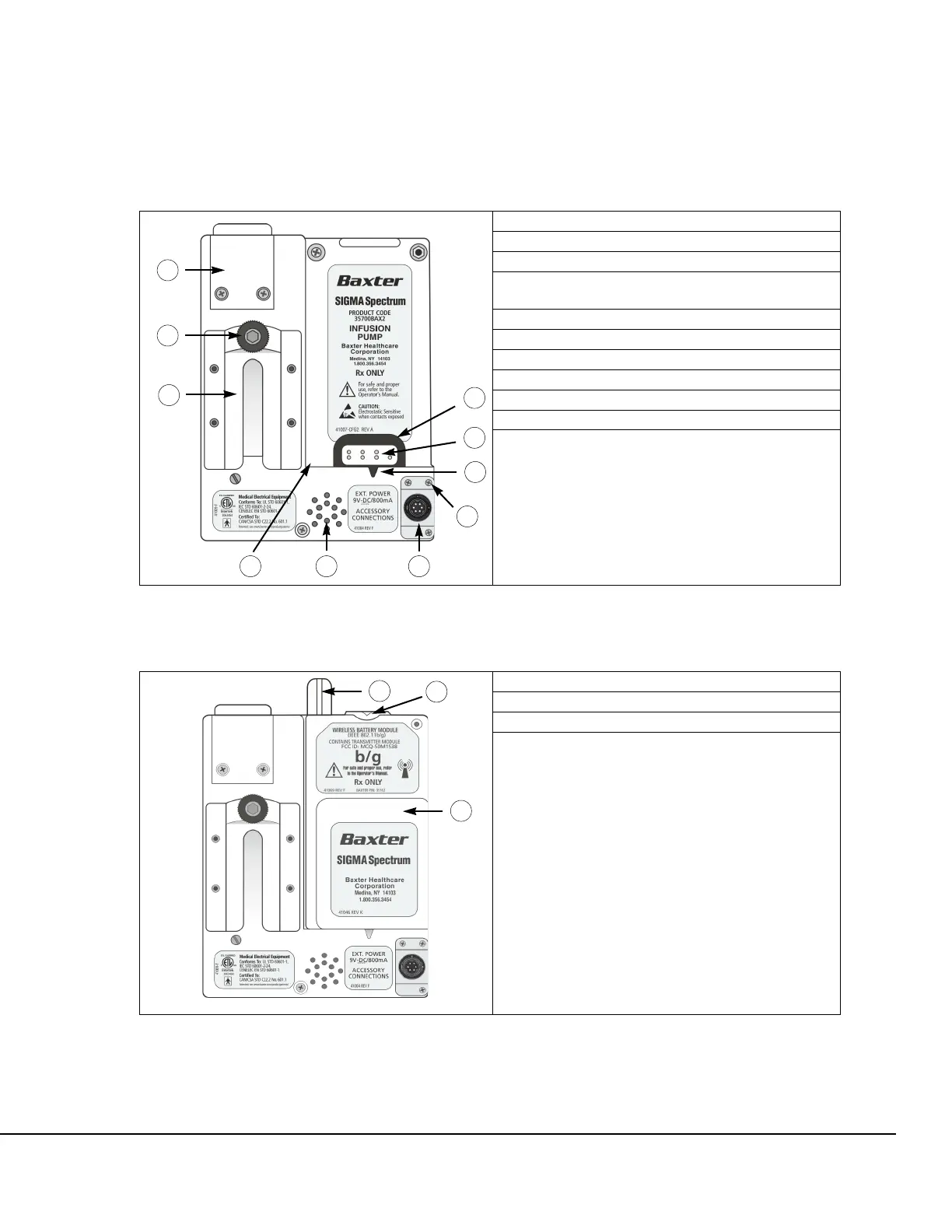

Figure 5. SIGMA Spectrum Infusion Pump, Rear View without Battery.
1 Wireless Battery antenna
2 Battery release
3 Battery module
Figure 6. SIGMA Spectrum Infusion Pump, Rear View with Battery Installed.
