3 Disassembly / Assembly
Infusomat® compact
plus
P 1.0 3 - 29
EN
For internal use, only
15. Route the 4-pole cable (Fig. 3 - 41 / Item 2) of the stepper
motor through the cable router (see arrows in Fig. 3 - 41).
16. Route the ESD wire (Fig. 3 - 41 / Item 1) through the cable
router.
17. Fix the cables to the screw boss with a cable tie (Fig. 3 - 41 /
Item 3).
18. Ensure that the magnet is in place (Fig. 3 - 41 / Item 4).

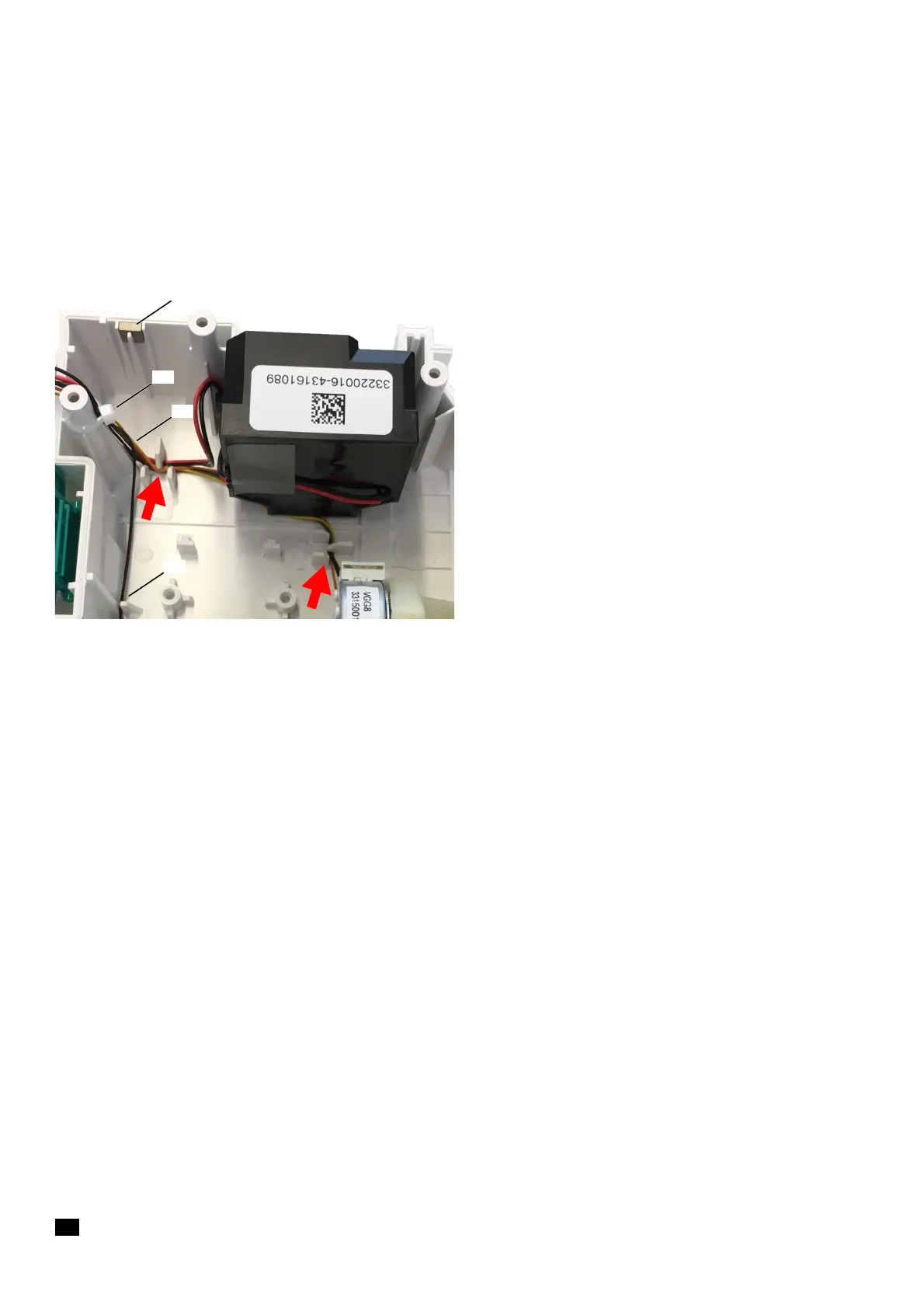

Fig. 3 - 41
1ESD wire
2 Cable of stepper motor, 4-pole
3Cable tie
4Magnet
4
3
2
1
