DATA MANAGEMENT AND REVIEW

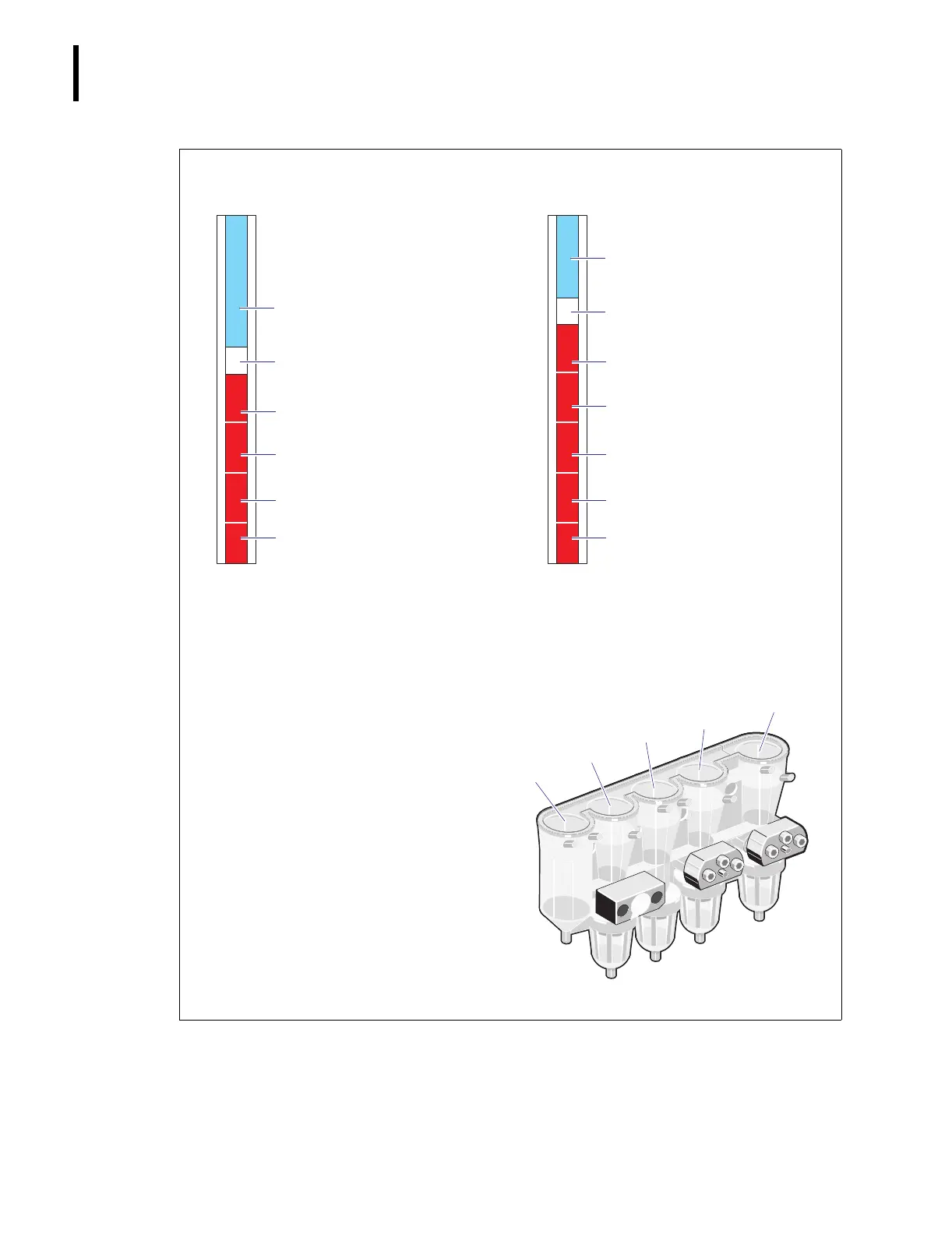

DATA ANALYSIS - AN OVERVIEW OF THE DILUTIONS AND MEASUREMENTS
CBC Panel -
Sample Partitions inside Probe
CBC/DIFF Panel -
Sample Partitions inside Probe
Blood Segments are Dispensed Serially
1. The RBC/PLT/HGB segment is delivered to
the DIL1/HGB bath.
2. The WBC/BASO segment is delivered to the
WBC/BASO bath.
3. The DIFF segment is delivered to the
DIFF bath.
Baths Assembly
7
616056A 7616056A
Diluent
Air bubble
Not used
WBC/BASO dilution
RBC/PLT/HGB first dilution
Not used
7
616001A 7616001A
Diluent
Air bubble
Not used
DIFF dilution
WBC/BASO dilution
RBC/PLT/HGB first dilution
Not used
RINSE
DIL1/HGB
DIFF
RBC
WBC/
BASO
7616058B
