PN 177196BB
8-4
SYSTEM DIAGNOSTICS AND MAINTENANCE

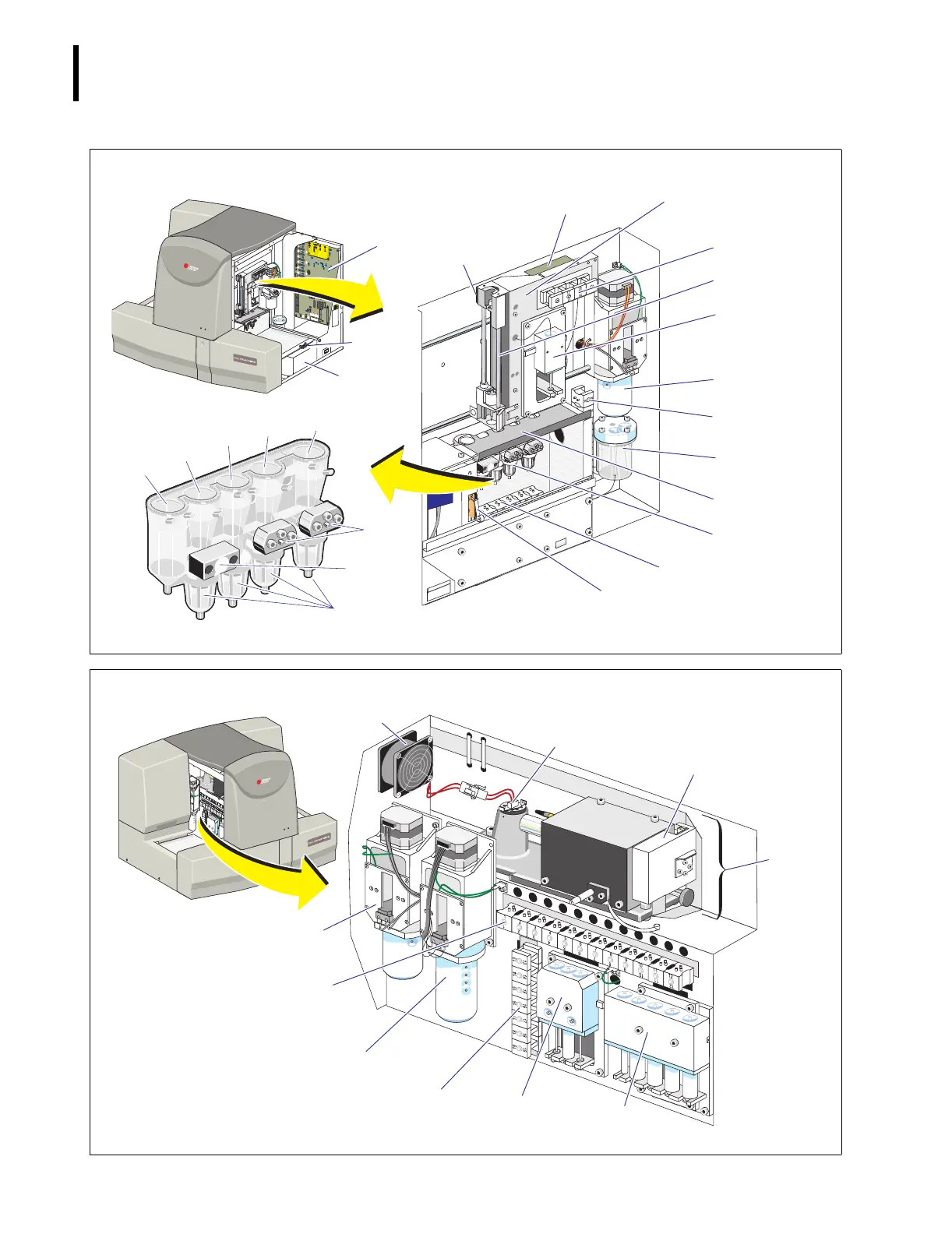

ACCESSING AND IDENTIFYING ANALYZER HARDWARE COMPONENTS
Right Side and Main Card Compartments
Horizontal traverse
assembly
Sampling syringe
Waste syringe 1
Diluent reservoir
Baths assembly
LV20 to LV23
LV24 to LV30
LV31 to LV35
Bath shield
Vertical traverse
assembly
Traverse card
Bath enclosure
door interlock
Main
card
Power
supply
RINSE
bath
DIL1/HGB
bath
DIFF
bath
RBC
bath
Hgb
photometer
Counting
heads
7616275D
Drain/debubble
baths
WBC/BASO
bath
Probe home
sensor
Output area
full switch
Left Side and Motor Card Compartments
Reagent syringes
assembly
LV1 to LV12
Waste
syringe 2
Count syringe
assembly
LV13 to LV19
Fan
Optical
Preamplifier
card
7616129D
Flow-cell lamp
assembly
DIFF syringe
assembly
Optical
bench
