28

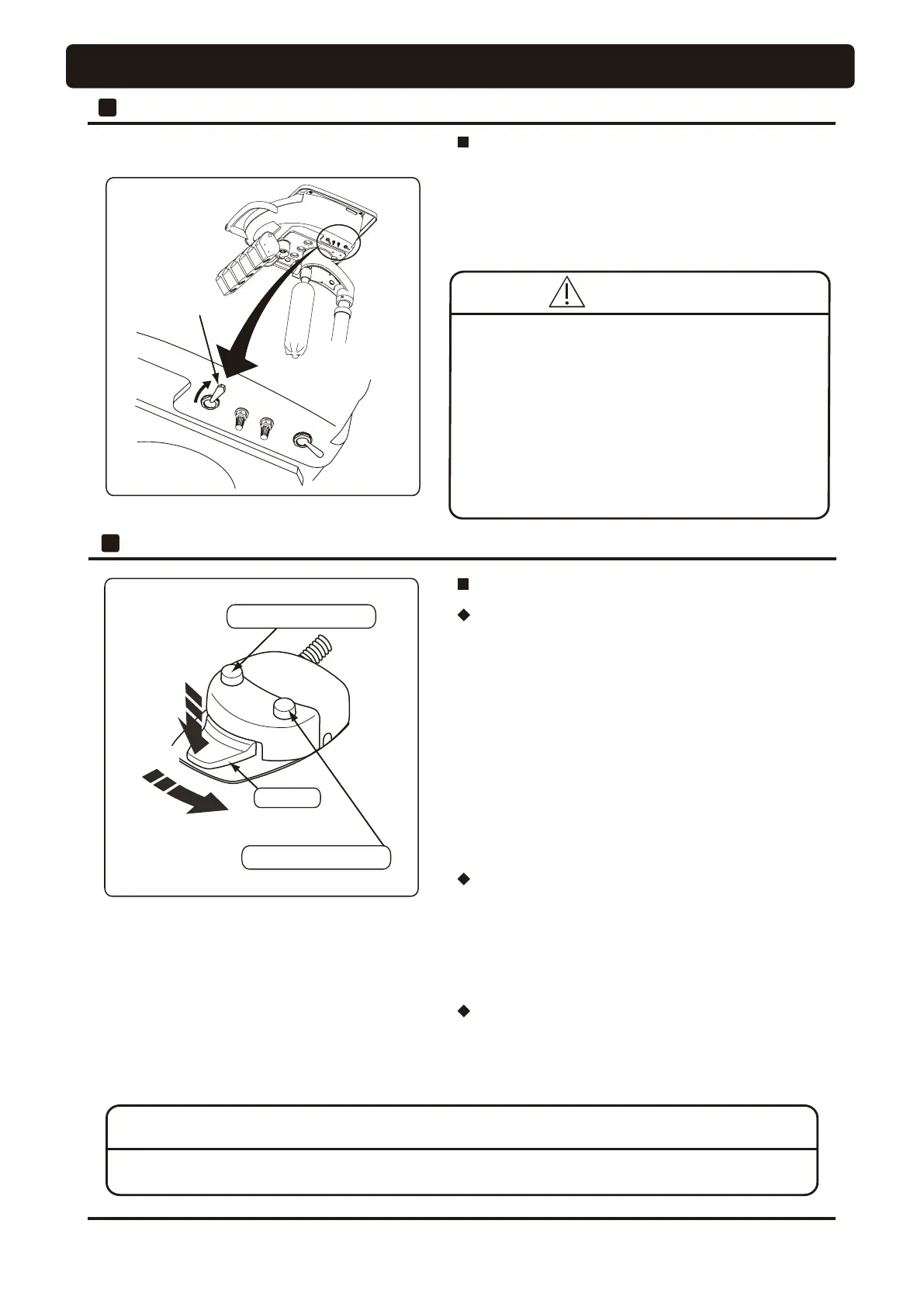

DESCRIPTION OF OPERATION AND FUNCTIONS OF COMPONENTS
3 Foot Controller
Coolant Switch
Increase
Chip Brow Button
Pedal
Decrease
Foot Controller (SE Type)
Pedal
• The pedal depressing extent can control the turbine rotation
speed and air scaler output.
• The motor rotation is activated when the pedal is depressed.
The rotation increases when the pedal is slide to the right,
and decreases when the pedal is slide to the left.
• The electric scaler output also increases when the pedal is
slide to the right, and decreases when the pedal is shifted to
the left. The P-MAX and Varios170 scalers does not permit
output control during operation. Once stop the operation,
control the output, and restart the operation.
Coolant Switch
• Depressing the coolant switch turns spray on/off like
control panel on the table.
• 4-mode (Water > Air > OFF > Spray) operation can be
selected for the motor.
Chip Brow Switch
• Chip air for blowing off the chips jets out of the handpiece
when the chip blow switch is depressed.
NOTICE
When the foot control pedal is stepped on, the safety function for stopping chair operation is activated.
Pressurization
ON-OFF Switch
2 Doctor Unit Section
Water Tank (Optional)
• Put water into the water tank and it can be supplied water
from the water tank.
• When the pressurization ON-OFF switch is moved in the
direction of the arrow, the water tank may be used.
de¿i rup ht iw esu rof ylno dednetni s i knat retaw ehT •
water, distilled water and pure water.
Do not use mouthwash or electrolyzed water, such as
ConCool or povidone iodine, as they may cause
clogged tubing or affect internal valves and
equipment.
• Adjust the air supply pressure for the water tank
to 29 psi or less. An excessively high pressure may
cause damage to the water tank.
CAUTION
