CARE AND MAINTENANCE
Sterilization pouch
Sterilization of vacuum / saliva ejector handpiece
Sterilization must be done every after use to patients.Vacuum
Tip/Vacuum Cap/ Vacuum Handpiece Body/Saliva Ejector
Handpiece Body can be autoclave. Vacuum handpiece body
and saliva ejector body have to assemble before autoclave.
A. Insert the handpiece in a sterilization pouch and seal it.
B. Autoclave for 3 min. at 134ºC and dry for 15 min.
Sterilization with autoclave is permitted up to 250 times.
However, sterilization of the slide knob with autoclave is
permitted up to 100 times (because of application of load at
the time of sliding).
Storage
After sterilizing the handpiece, keep it in the sterilization
pouch and store in a dark and cool place.
CAUTION
• Sterilization by class B cycles.
• Sterilization temperature is 135 ºC or less.
• 7KHFDS¿OWHr and body are made of resin. They may become deteriorated if they are sterilized in an
autoclave many times.
• AfterDXWRFODYHVWHULOL]DWLRQWKHFDS¿OWHr, body and valve are subject to discoloration, which does not
have a negative effect on performance.
• The slide knob can be autoclave 100 times and is expendable supplies.
• Dry naturally if the temperature for drying process is to exceed 135ºC.
• If damage occurs to the sterilization pouch, discard and sterilize again using a new pouch.
59
3
Cuspidor Unit Section

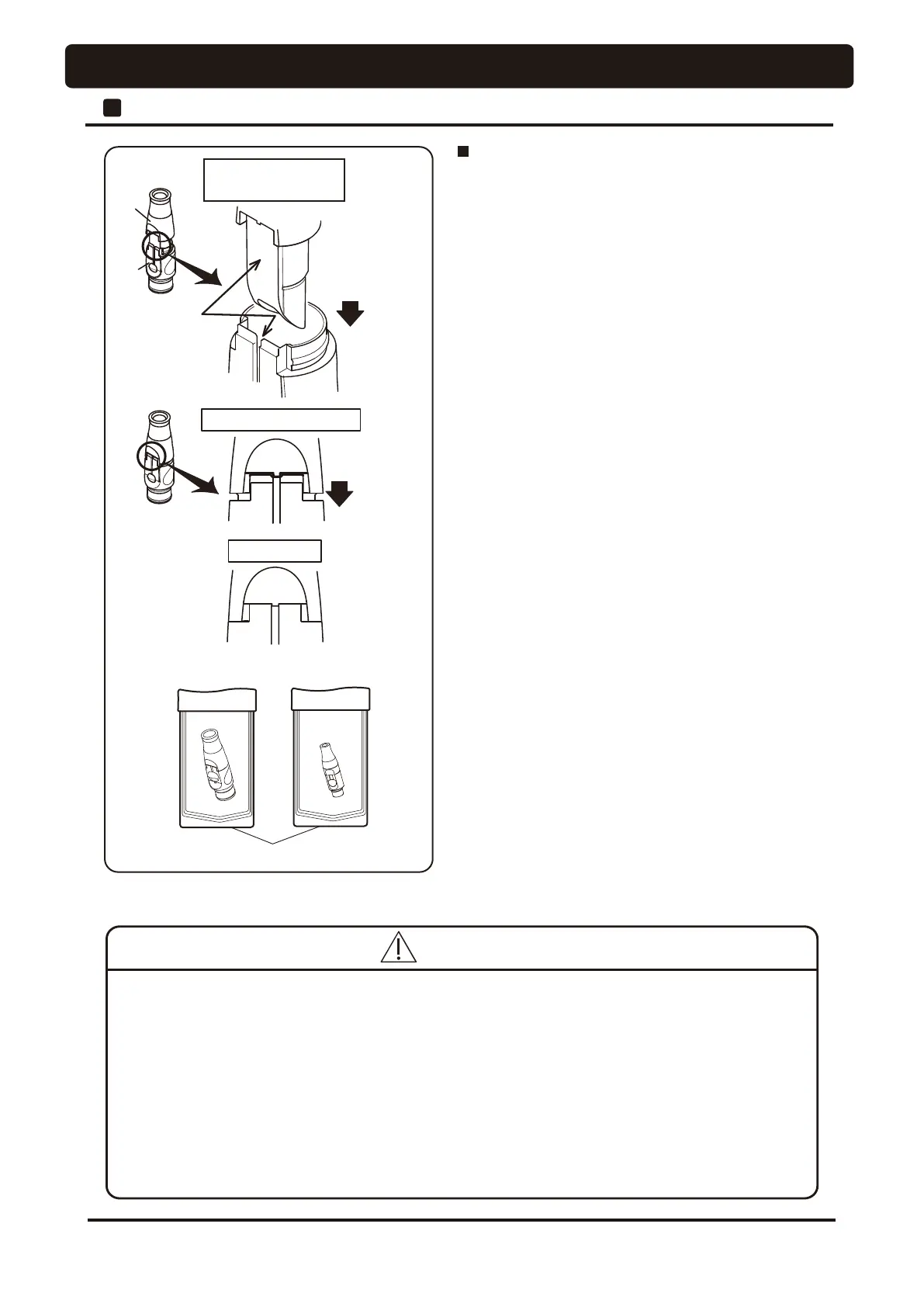

When assembling the vacuum handpiece, align the two surfaces;
a flat surface of the cap and the surface of the sliding groove of
the body. Then, slide the cap into the body straight.
* Do not insert it twisted.
Caution when assembling
vacuum handpiece before
sterilization
Align the
two surfaces
After assembly
Cap
Body
Insert the cap
straight down
Complete insertion
with two surfaces
tightly aligned
Confirm both surfaces aligned
Vacuum Handpiece and Saliva Ejector Handpiece
