Belmont tbCompass - Vacuum Handpiece; Saliva Ejector Handpiece; Spittoon Bowl Rotation; Assistant Control Panel

31

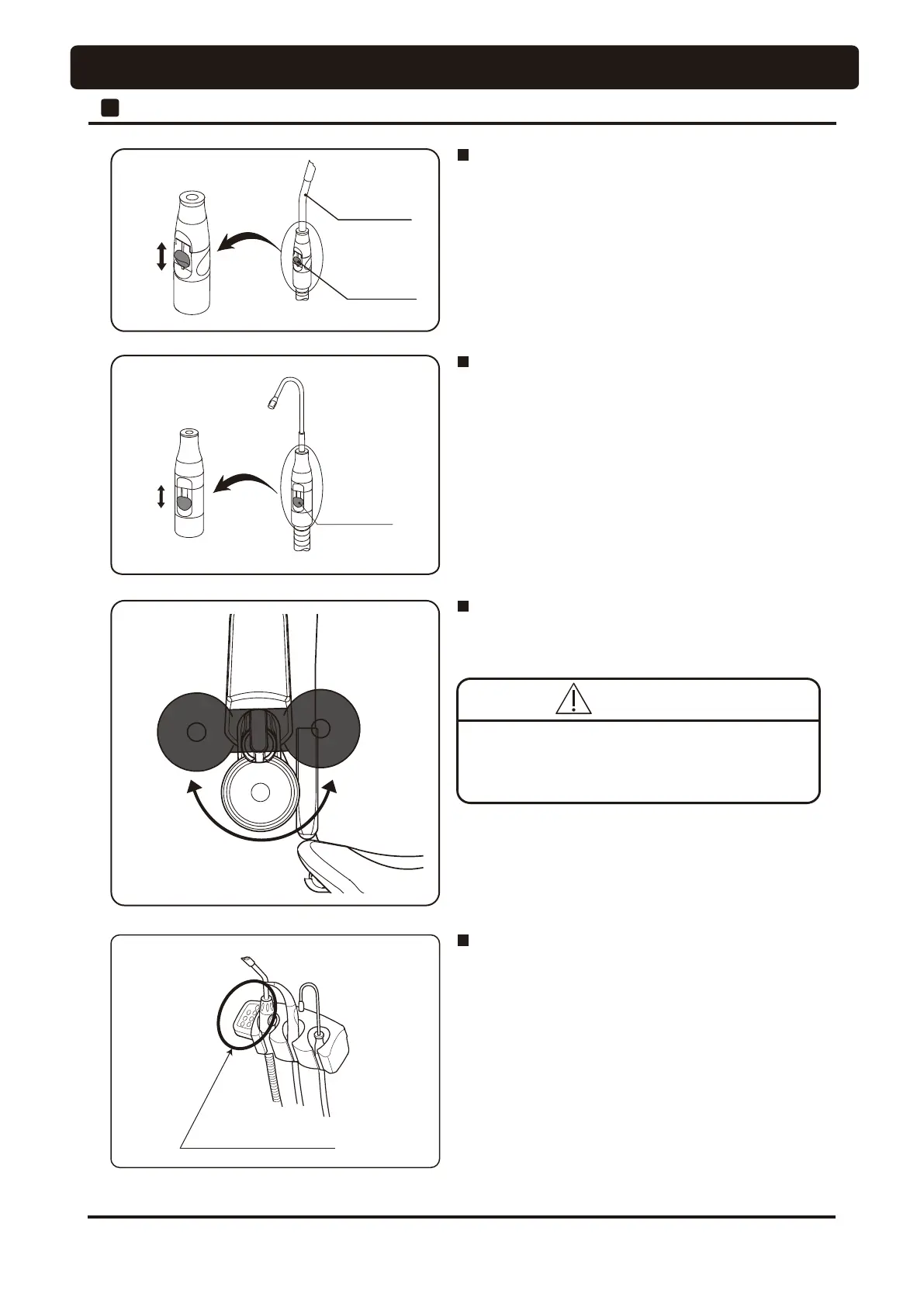

DESCRIPTION OF OPERATION AND FUNCTIONS OF COMPONENTS
4 Cuspidor Unit Section
Open
Close
Slide knob
Assistant control panel
Vacuum handpiece
• Suction begins when the vacuum handpiece is taken out of
the holder.
• In case of the central vacuum system, suction will not stop
immediately after the vacuum handpiece was returned to the
assistant holder, but suction will continue for about 3 seconds
by the function of delay circuit.
• Opening or closing the slide knob can control the suction
ÀRZUDWH
Spittoon bowl rotation
• The spittoon bowl turns 180 degrees.
Make sure that the patient does not lean on the
cuspidor unit, as pushing on the spittoon bowl causes
it to swing outwards.
Assistant control panel
• The operation and functions of the assistant contril panel
are the same as those on the doctor control panel in the
doctor unit section. See pages 20-22 for the operation
procedure.
Saliva ejector handpiece
• Suction begins when the saliva ejector handpiece is taken
out of the holder.
• In case of the central vacuum system, suction will not stop
immediately after the saliva ejector handpiece was returned
to the assistant holder, but suction will continue for about 3
seconds by the function of delay circuit.
• Opening or closing the slide knob can control the suction
ÀRZUDWH
Open
Close
Vacuum Tip
(option)
Slide knob
CAUTION
