DESCRIPTION OF OPERATION AND FUNCTIONS OF COMPONENTS

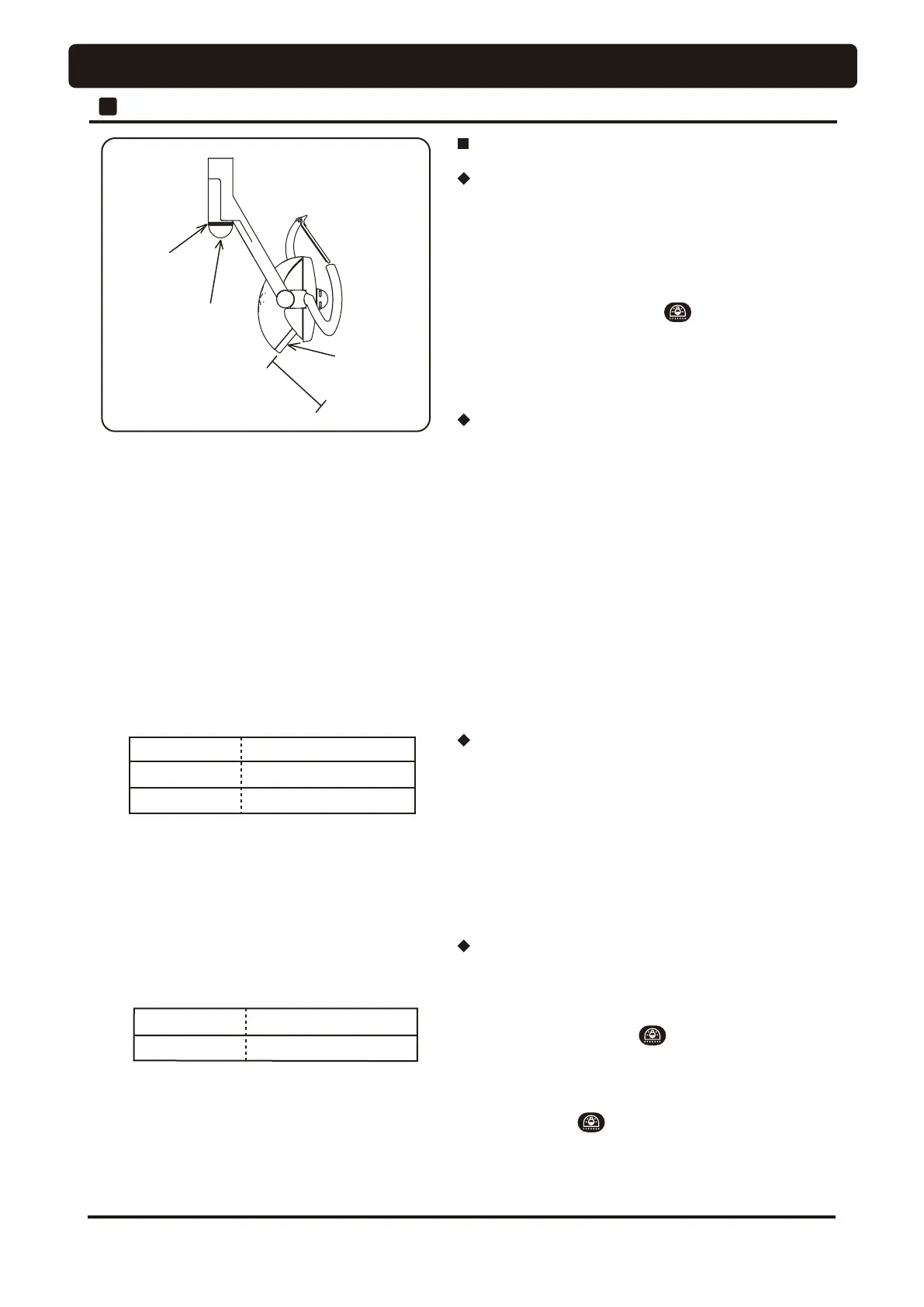

5 Dental Light Section
Indicator
Intensity switch
Reaction distance
Approx. 85 mm or less
Touch-less switch
Mode
HIGH
LOW
Indicator lighting color
Green
Orange
Mode
Indicator blinking color
COMPOSITE Green or orange
Main switch and operation switch
701 dental light (Type AL-720PAS)(Optional)
Turning on and off of the light by the touch-less
switch
• The dental light turned on when you shake your hand
within approximately 85 mm from the touchless switch
surface. It goes out when you shake your hand again
* If the surface of a touchless switch becomes unclean, this
may affect the sensitivity of the sensor.
Please wipe the surface of a touchless switch with a soft
cloth.
Intensity switch
• This switch changes intensity in the examination mode.
Two kinds of intensity are available as shows on the left.
• The intensity changes when you press up the rubber cover
of the intensity switch from below.
Changing into composite mode
• When the main switch of the dental unit is turned on, the
indicator shown in the figure is lit in green or orange and the
dental light power is turned on.
• The dental light may be turned on and off with the touchless
switch or the dental light switch on the operation panel
of the unit side.
• The indicator begins to blink in green and the mode
changes to the composite mode, when you hold your hand
within 85mm from the touchless switch for 2 seconds or keep
pressing dental light switch on the control panel for 2
seconds. The indicator is lit in green and the mode changes
to the treatment mode, when you leave your hand once and
hold it above the switch again for 2 seconds or keep pressing
dental light switch on the control panel for 2 seconds.
*When the light is turned off in the composite mode, it goes
on in the treatment mode when it is turned on again.
