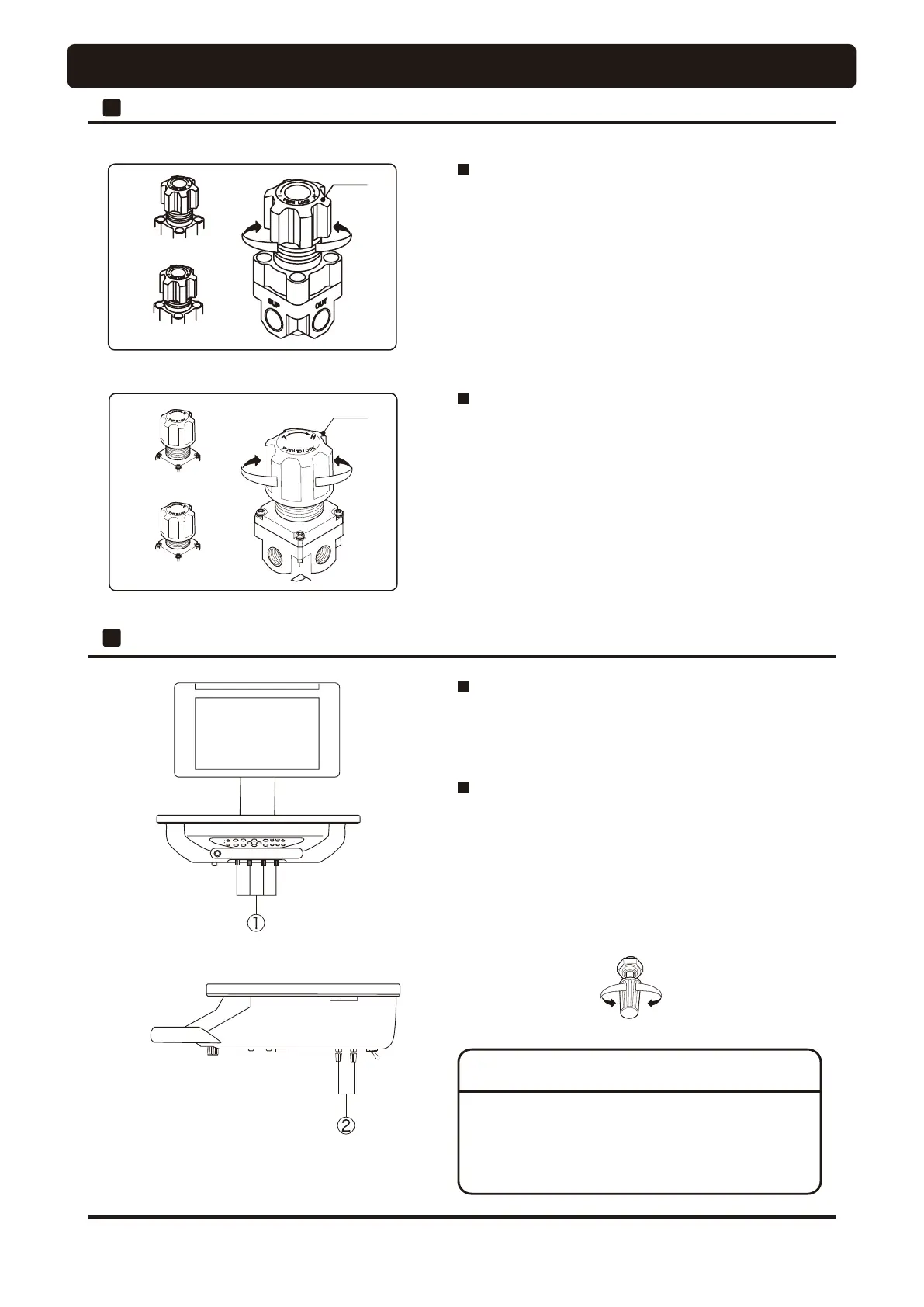

ADJUSTMENT OF PARTS
Knob
Increase
Decrease
Push down
Pull up
Increase Decrease
Knob
Push down
Pull up
Front side of under the doctor table
Right side of under the doctor table
Main air pressure reducing valve
• This knob adjusts the main pressure of air supplied to the
unit.
• Pull the knob and turn as shown in the drawing so that the
main air pressure gauge reads a value between 0.45 and 0.5
MPa.
• Be sure to press the knob to lock it after setting.
• This knob is adjusted when installing the unit. Do not
change the setting under normal conditions.
Main water pressure reducing valve
• This knob adjusts the main pressure of water supplied to the
unit.
• Pull the knob and turn as shown in the drawing so that the
main water pressure gauge reads a value between 0.1 and 0.2
MPa.
• Be sure to press the knob to lock it after setting.
• This knob is adjusted when installing the unit. Do not
change the setting under normal conditions.
Water adjustment of the handpiece spray
• The water flow rates of the handpiece of the Doctor’s unit
may be adjusted with the knob (1)(blue knob).
Water/air adjustment of the syringe spray
• The water and air flow rates of the syringe of the Doctor’s
unit may be adjusted with the knob (2).
Blue cap ......Water
Yellow cap... Air
* The flow rate is decreased by turning any knob clockwise.
It is increased by turning the knob counterclockwise.
Increase
Decrease
Flow rate adjustment knobs are intended to increase/
decrease the flow rate, but do not serve as stop valves.
Caution should be exercised as turning the knob
excessively may cause it to loosen.
52
1
Junction Box Section
2
Doctor Unit Section
NOTICE
