DESCRIPTION OF OPERATION AND FUNCTIONS OF COMPONENTS
6

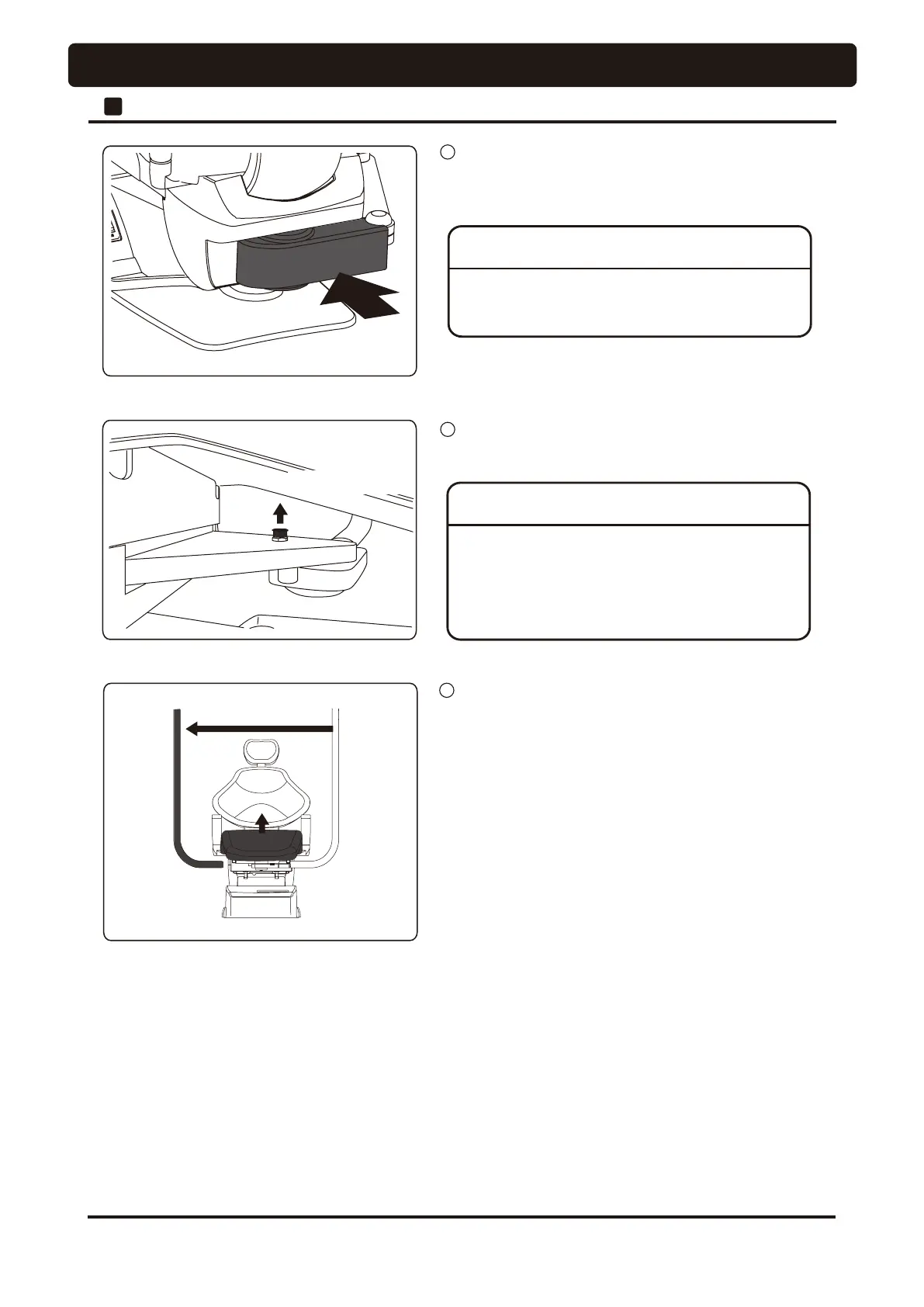

Right/Left handed dentistry conversion
Lock lever C
NOTICE
When the lock lever C is difficult to pull up. At that
time, pulling up the lock lever, then adjust the position
of the light pole to make easier to pull out the lock
lever C.
Pull the lock lever C on the swing arm bracket, then swing the
light pole slightly to chair legrest side.
11
Lift the toe board of seat cushion and swing the light pole to other
VLGHDVVKRZQRQWKHOHIW¿JXUH
When the light pole moved to correct position, the lock lever C on
the swing bracket can be locked automatically.
12
NOTICE
The swing bracket cover is same for left and right.
Turn it upside down and attach to it.
Attach the swing bracket cover to swing bracket.
10
