Doctor Package ( Chair + Doctor Unit )
Rated power supply : 230 VAC, 50/60 Hz, 3.5/3.5A
Fuse : 5A/250V(Current Rating:50A at 250VAC) Fast blow
Size of Fuse (5 x 20mm)
Weight : 155kg
Maximum Load : Patient capacity 135kg
Load capacity : Doctor table 3kg
Classification of foot controller : IPX1(applicable standard IEC60529)
Protection class against electric shock : Class I equipment
Applied part : type B applied part
Seat for chair
Handpieces for unit ( List of compatible handpieces)
Usage environment : Temperature 0 to 40ºC
Humidity 10 to 95%
Air pressure 700 to 1060 hPa
Transportation / Storage environment : Temperature -20 to +70ºC
Humidity 10 to 95%
Air pressure 700 to 1060 hPa
Mode of operation : Non-Continuous Operation
Duration of Maximum Operating Time:3min, Duty 1:5

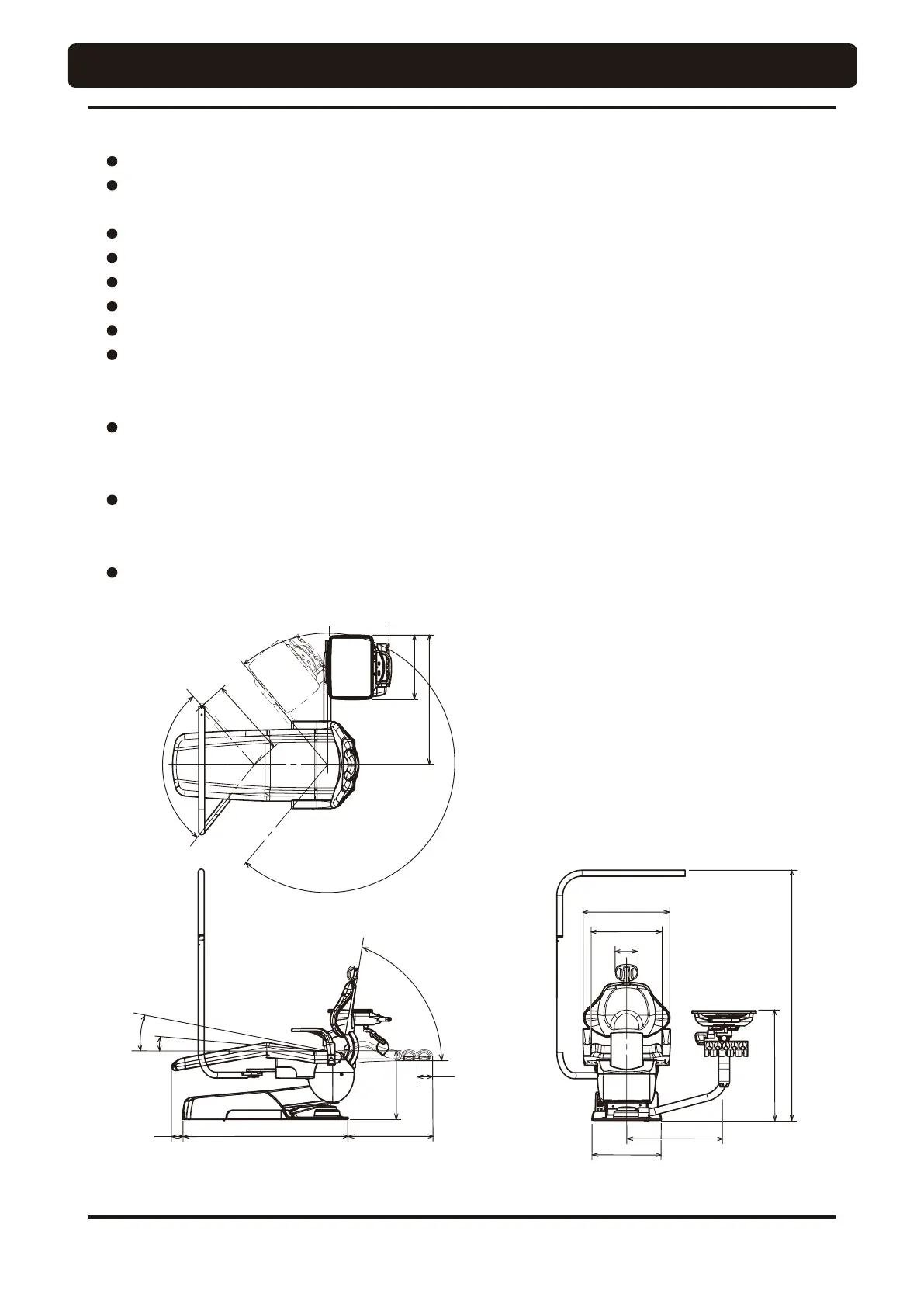

DIMENSIONS AND SPECIFICATIONS
455
927
260°
610
100°
627
515
195
1800
780 〜 835
700
500
170
80°
490 ~ 790
60
11°
5°
1175
700
Dimensions
* Values are the standard values. (Unit: mm)
Dimensional tolerance: ±10%
