Electric Actuator ICON2000/ICON2000AD
ADDENDUM E to INSTRUCTION HANDBOOK MAN 618
© Copyright by BIFFI Italia. All right reserved. Page
10
Electric Actuators Series ICON2000 are equipped with 4 entries (3 are
standard the fourth is supplied when requested).

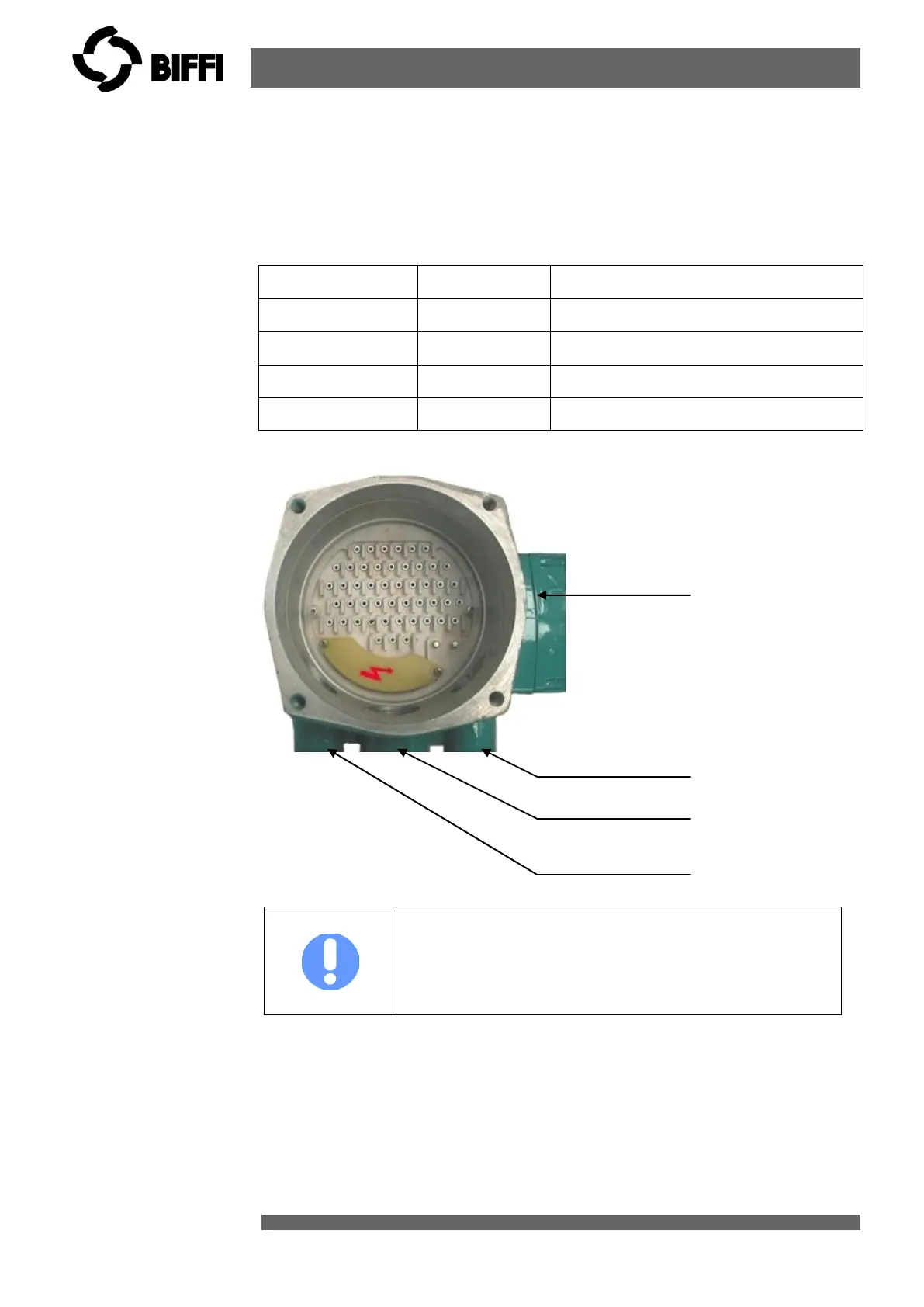

With reference to the attached picture, the thread form/size for each entry is as
follows:
Entry
NPT size
Metric size ISO 965 (alternative)
1
1”
M32x1,5
2
1-1/2”
M40x1,5
3
1”
M32x1,5
4 (optional)
¾”
M25x1,5
Important
When alternative entries according ISO 965 are used,
indication of the dimensions is imprinted on the
adaptor bush or directly on the housing when ISO 965
entries are obtained by machining the housing.
7.3 Electrical connections
The instructions of the Base INSTRUCTION HANDBOOK MAN 618 applies.
4
3
2
1
