Electric Actuator ICON2000/ICON2000AD
ADDENDUM G to INSTRUCTION HANDBOOK MAN 618
© Copyright by BIFFI Italia. All right reserved. Page
13
Warning
Unused entries may remain unmachined or must be
plugged with a certified plug suitable for the area.

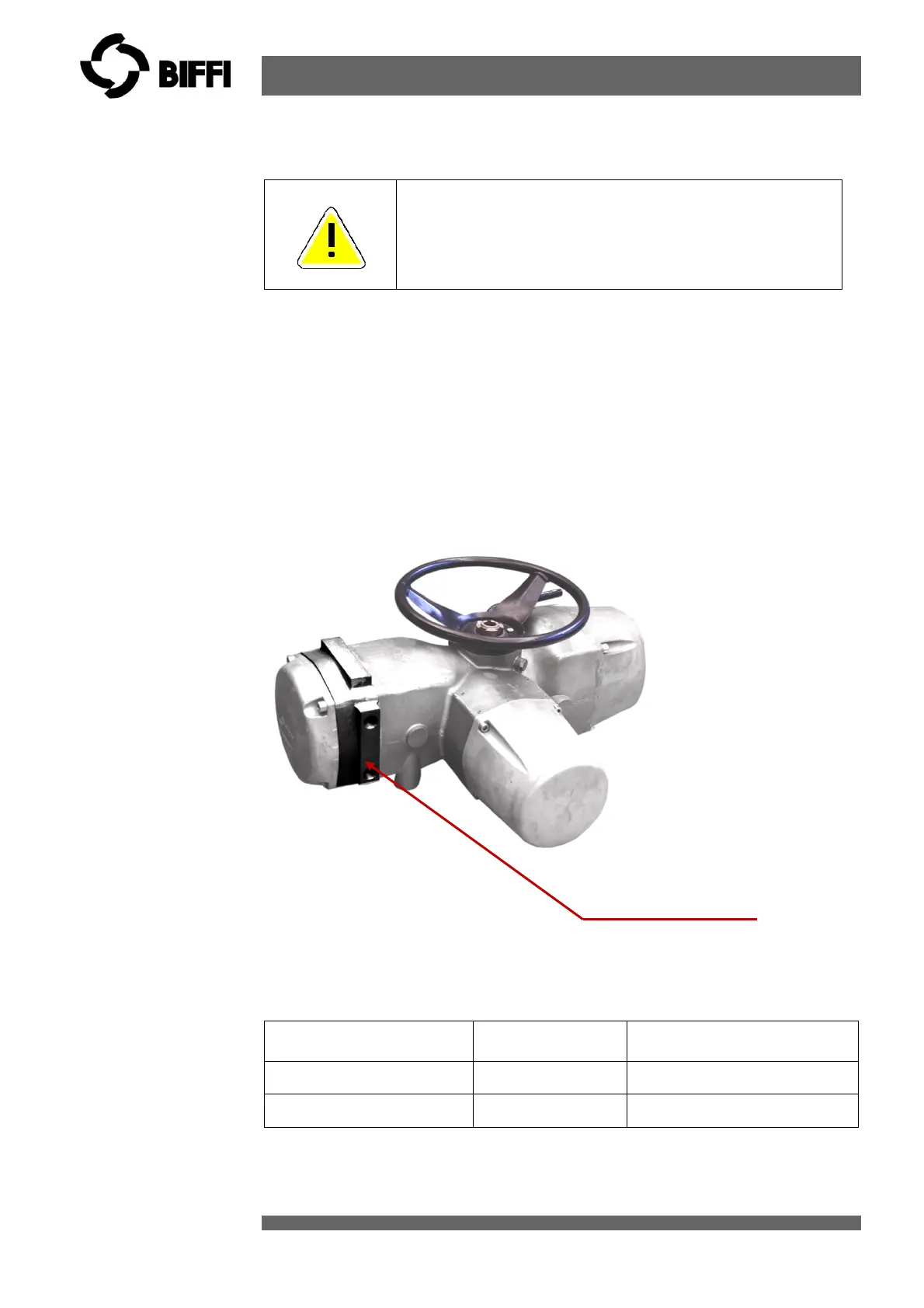

7.2.2 Base actuator with extensions [A] or [B] on the terminal board
compartment
The extensions [A] or [B] provide up to 9 additional entries for cable or
conduit connection. With reference to the attached picture, the thread form/size
for the entries is as follows:
Entries
Option 1
Standard entries
Option 2
Alternative entries ( ISO 965)
A, B, C, D, E, F, G, H, K ½” NPT M20x1,5
Entries from A to K
