Electric Actuator ICON2000/ICON2000AD
ADDENDUM G to INSTRUCTION HANDBOOK MAN 618
© Copyright by BIFFI Italia. All right reserved. Page
12
7.2 Identification of entry
7.2.1 Base actuator
Electric Actuators Series ICON2000/ICON2000AD are equipped with
5 entries (3 are standard, the fourth and fifth is supplied when requested).

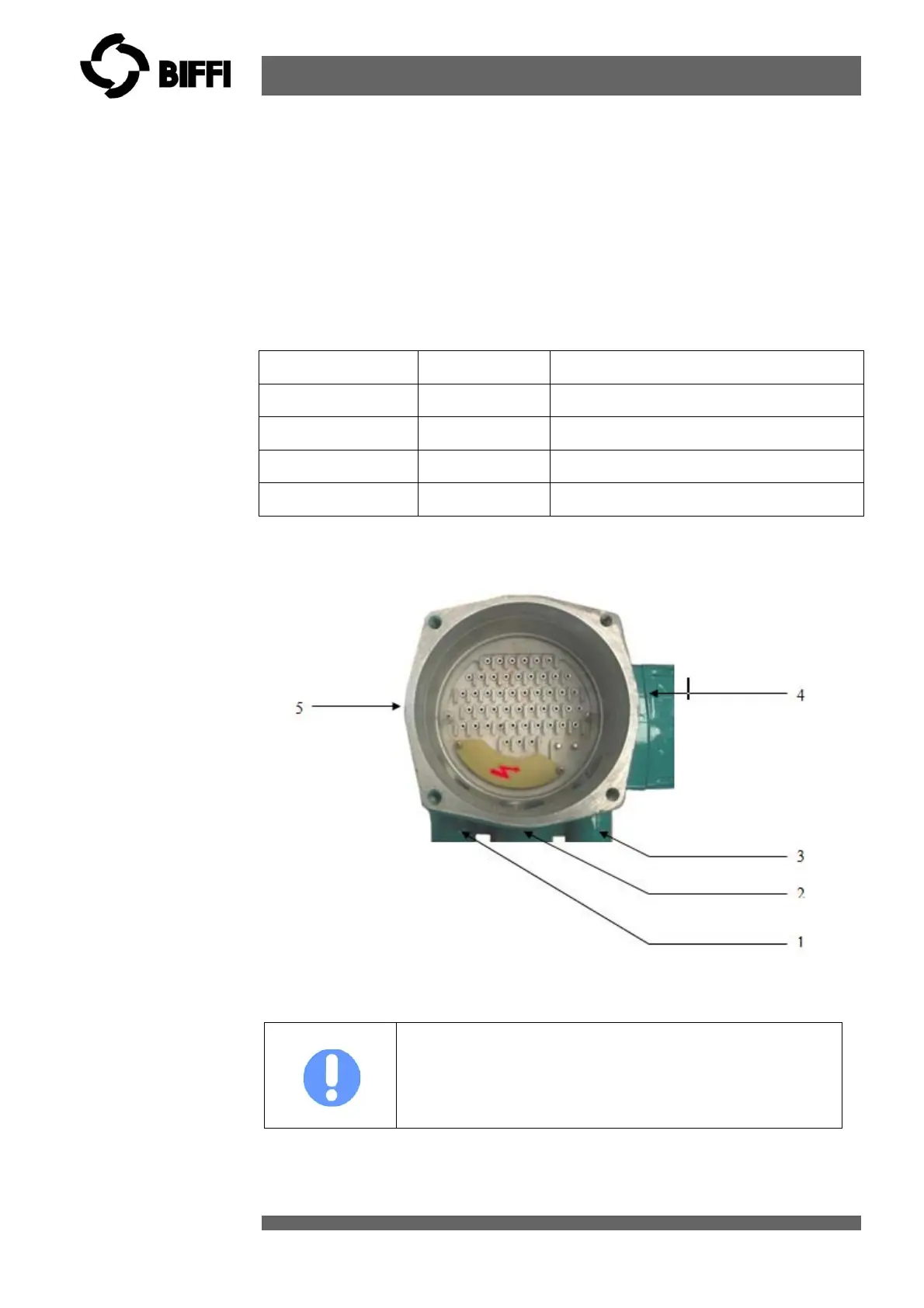

With reference to the attached picture, the thread form/size for each entry is as
follows:
Entry NPT size
Alternative (Metric size ISO 965)
1 1”
M32x1,5
2 1-1/2”
M40x1,5
3 1”
M32x1,5
4 and 5 (optional)
¾”
M20x1,5
Important
When alternative entries are used, indication of the
dimensions is imprinted directly on the housing close
to the entry.
