“ICON 2000v4"
instruction and operating manual
© Copyright by BIFFI Italia. All right reserved. Section 618/42 Page 17
Contents may change without notice

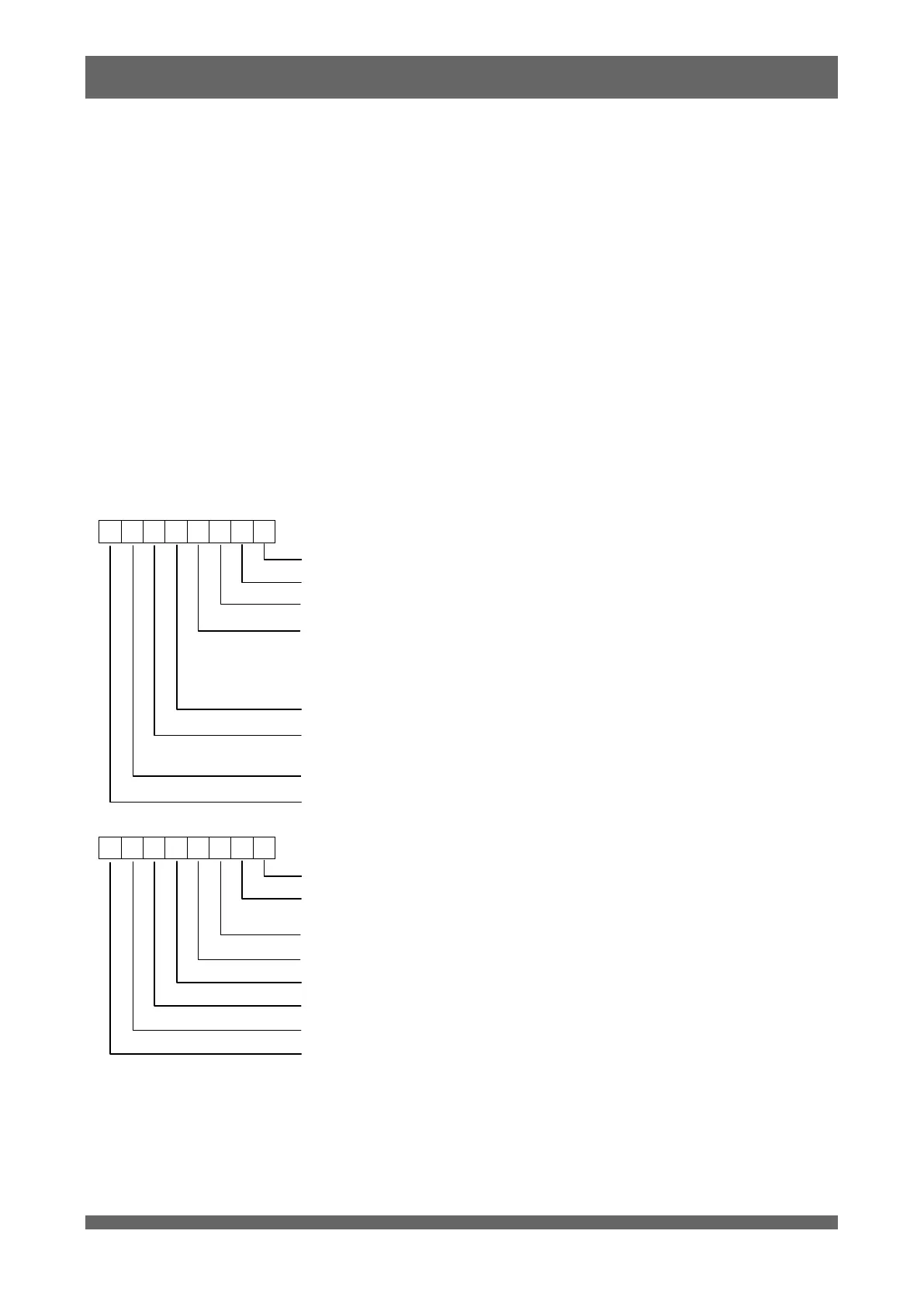

Standard Diagnosis block
Octet 1 bit0
Diag_Station_Non_Existent (1)= Slave does not exist (sets master)
Diag_Station_Not_Ready (1)= Slave not ready for data exchange
Diag_Cfg_Fault (1)= Slave has mismatching configuration data
Diag.Ext_Diag (0)= Slave sends standard diagnosis data only (6
bytes) or with extended diagnosis without fault (i.e.
when the fault condition disappears)
(1)= Slave sends extended diagnosis data indicating
the presence of a fault
Diag_Not_Supported (1)= Slave does not support the required function
Diag_Invalid_Slave_Response (0)= Set by slave
(1)= Set by master in case of fault
Diag.Prm_Fault (1)= Incorrect parameterization
Diag.Master_Lock (1)= Slave has been parameterized by a different
master (sets master)
Octet 2 bit0
Diag.Prm_Req (1)= Slave has to be re-parameterized
Diag.Stat_Diag (1)= During start-up phase slave not able to provide
valid diagnosis data
Diag.WD_On (1)= Threshold monitoring activated
Diag.Freeze_Mode (1)= FREEZE command received
Diag.Sync_Mode (1)= SYNC command received
Diag.Deactivated (1)= Diagnosis deactivated (sets master)
