BIS VISTA - Bisx; Figure 5 - Bisx and PIC

SECTION 2 INSTALLATION AND PREPARATION FOR USE
______________________________________________________________________
2-10
The BIS VISTA monitor contains an internal lithium ion battery. The
battery must be removed by a qualified service technician and
disposed of or recycled in accordance with the national laws of the
country. Contact Aspect Medical Systems, Inc. or the local distributor
for a replacement battery: Aspect part number 186-0208.
2.3.2 BISx

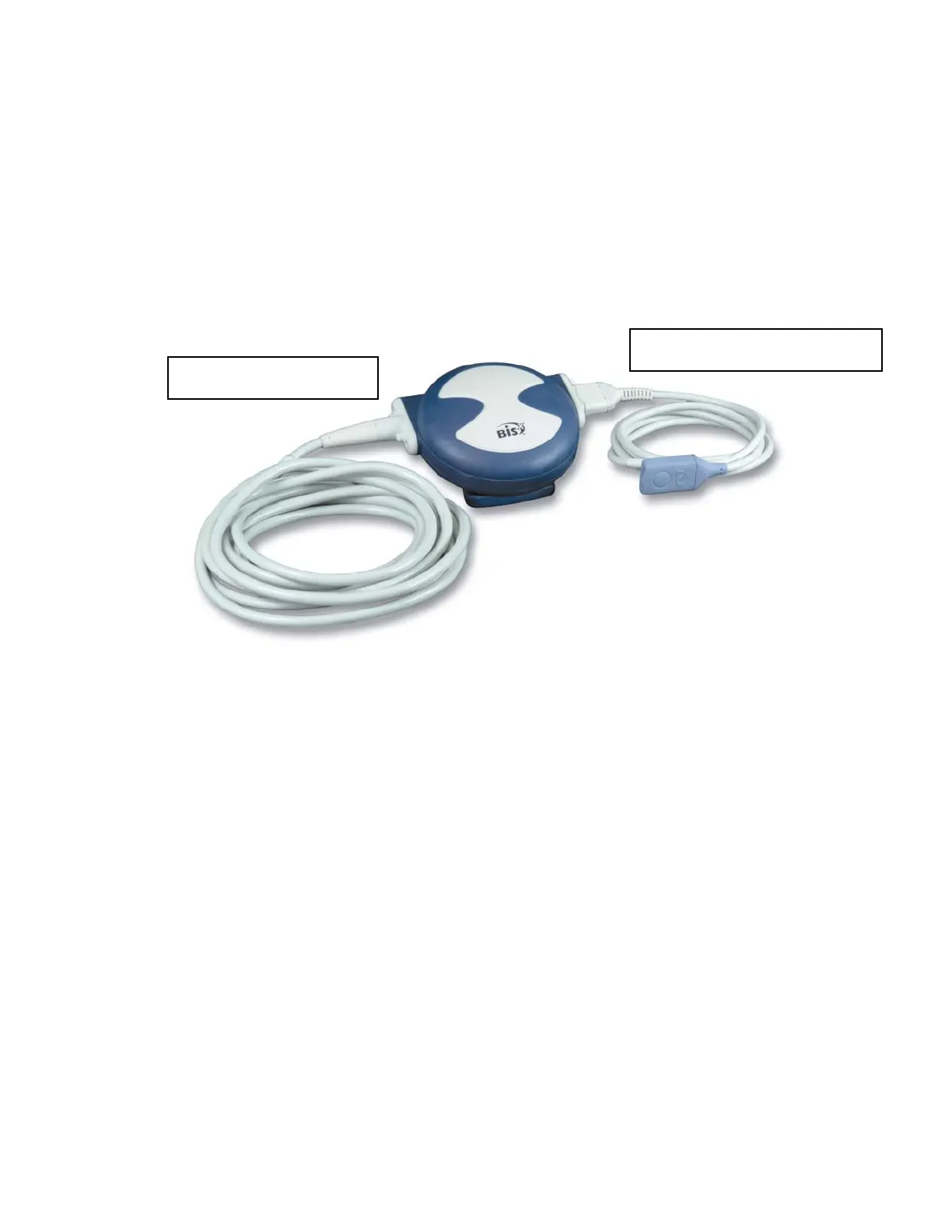

Figure 5 - BISx and PIC
The BISx receives, filters, and processes patient EEG signals. It is located close to the
patient's head where the EEG signal is less subject to interference from other medical
equipment.
The BISx is shown in Figure 5. Its long flexible Monitor Interface Cable connects to the
front of the monitor. The Patient Interface Cable (PIC) connects the BIS sensor to the
BISx.
The attachment clip on the BISx is used to secure it in a convenient location near the
patient's head.
Monitor Interface Cable
Patient Interface Cable (PIC)
