Blackmagicdesign Videohub User Manual

Using Blackmagic Videohub Control
6
Getting to Know the Interface
Launch Videohub Control and click on the "Select a Videohub" button and then select the Videohub
you wish to control.
If the Input, Output and Remote connections have not yet been labeled in Blackmagic Videohub Setup,
then the source pushbuttons will appear simply as "Input", followed by their respective numbers. Likewise,
the destination pushbuttons will appear as "Output", followed by their respective numbers. These inputs
and outputs correspond to the connector numbers on the Videohub.
Resizing the Interface
Click and drag the bottom right hand corner to proportionally resize the interface to best fit your screen
size. Alternatively, drag a window edge to resize either vertically or horizontally.
Resizing the Sources and Destinations Areas
Drag the Divider Bar up and down and use the Scroll Bars to scroll the respective areas.
Switching Views
You can switch between pushbutton view and list view by clicking the icons in the bottom right corner.
Using the Dynamic Search
Both the Sources and Destinations areas contain a search icon, which allows you to search for text
dynamically. This is useful if you have many pushbuttons and quickly want to locate a pushbutton with a
specific name. Begin by typing the name you wish to search for. As you type each letter, the pushbuttons
that are displayed will be dynamically filtered.

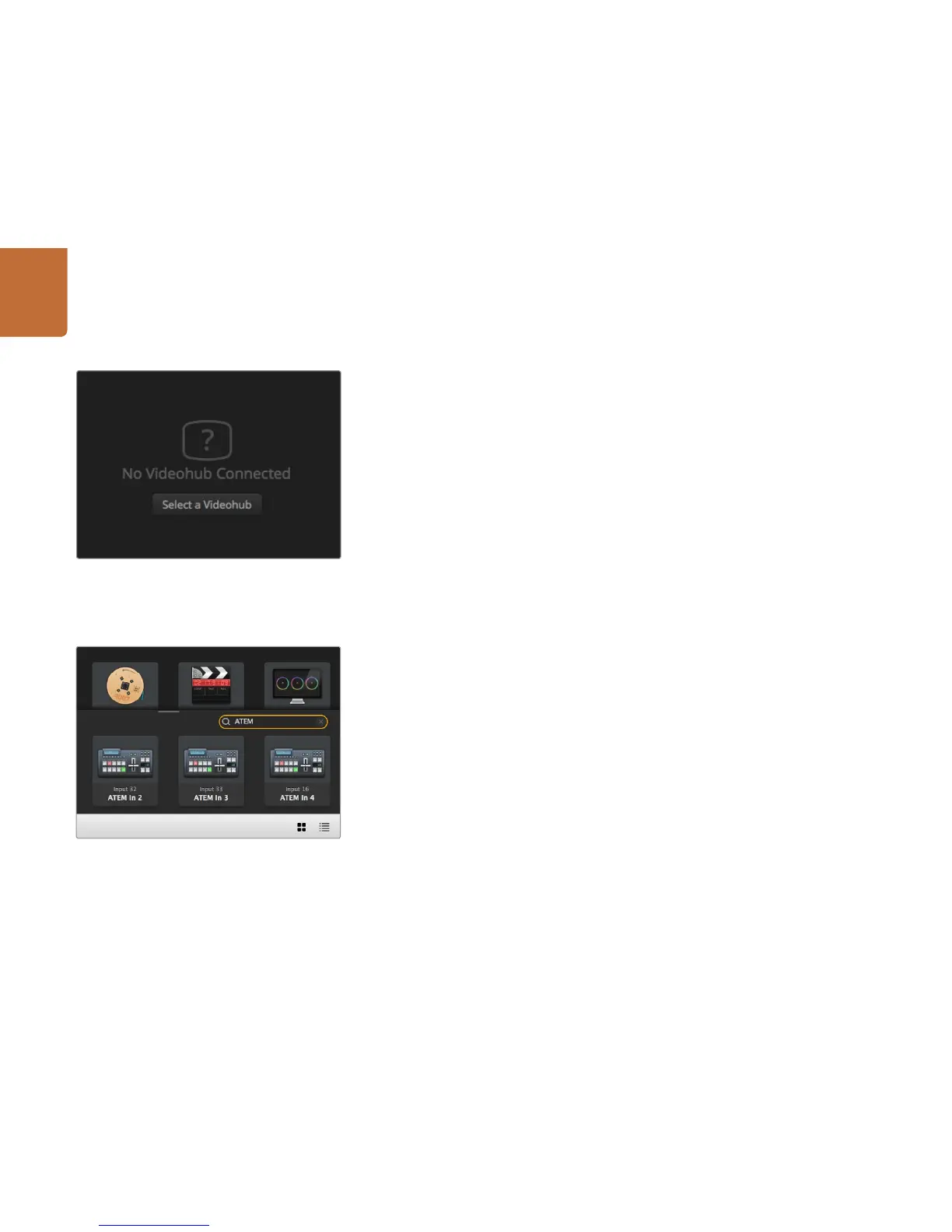

The word "ATEM" is entered into the Destinations Search Box
and the filtered results are displayed.
Click on the "Select a Videohub" button and then select the
Videohub you wish to control.

Blackmagicdesign Videohub Specifications

General

Video Input	SDI
Video Output	SDI
Serial Router Control	RS-422
Ethernet Router Control	10/100/1000 Ethernet
Inputs	40
Outputs	40
SDI Bit Depth	10-bit
Power Supply	Internal power supply, 100-240V AC
