Blackmagicdesign Videohub User Manual

29
Using Videohub Routers
Using the Smart Videohub 12x12 Control Panel and LCD
Smart Videohub 12x12 features a built in control panel and LCD. Routing changes can be made without
needing a computer by simply using the numbered pushbuttons. Remote router control can also be used.

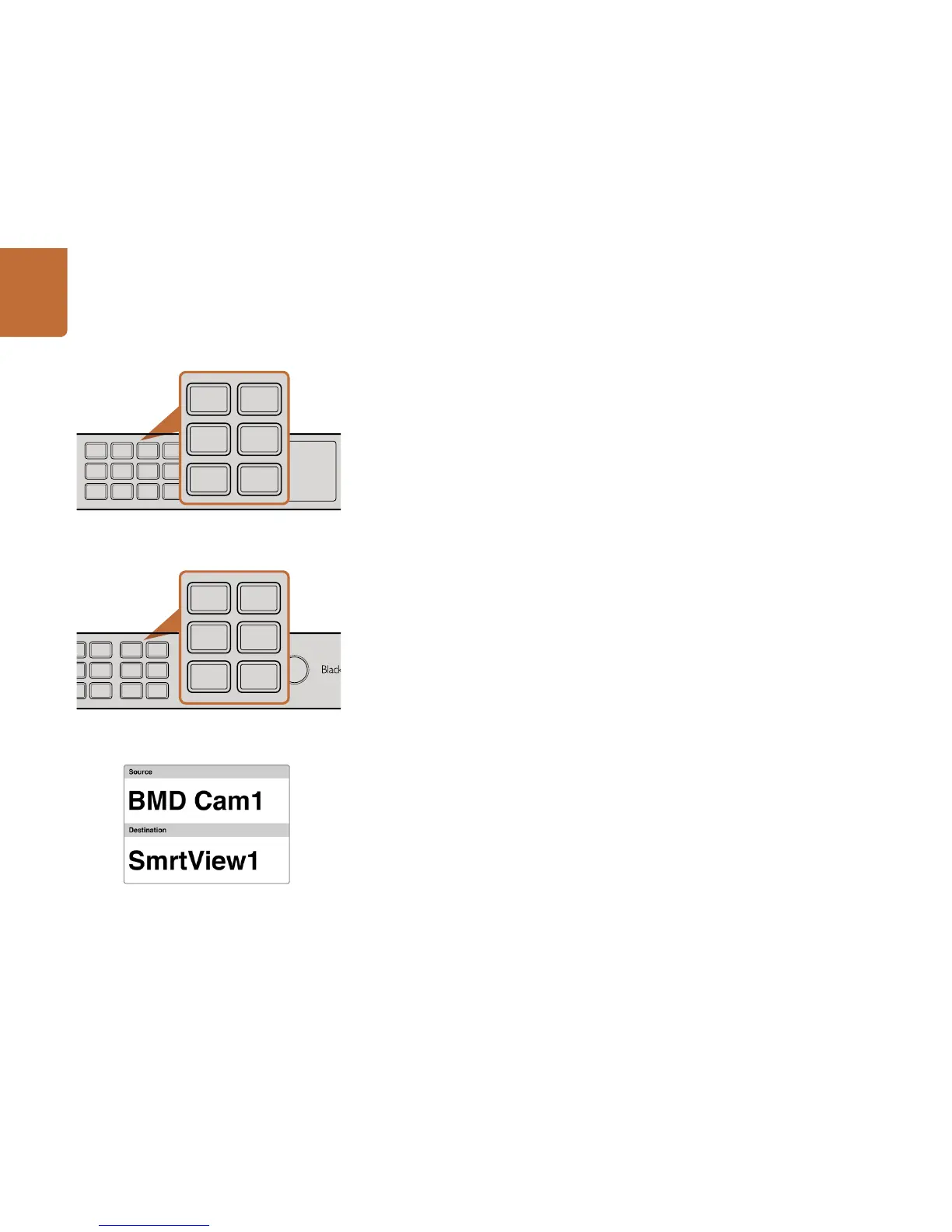

Menu Buttons Explained
SRC
Press the SRC button and then a numbered pushbutton to select your Source.
DEST
Press the DEST button and then a numbered pushbutton to select your Destination.
CLEAR
Press the CLEAR button to discard a route change.
MENU
Press the MENU button to toggle between the routing display and the network configuration page.
VIDEO
Press the VIDEO button and then either the SRC or DEST buttons to display the video on the LCD.
TAKE
Press this button to confirm a route change.
Switching Routes
Step 1. Select the DEST button and then a numbered pushbutton. Alternatively, you can use the
rotary knob to scroll through the Destination numbers. The lower half of the LCD displays
the Destination and will change accordingly. If you have already customized your labels, the
device name eg: "SmartView1" will be displayed.
Step 2. Select the SRC button and then a numbered pushbutton. Alternatively, you can use the rotary
knob to scroll through the Source numbers. The numbers will scroll in alphabetical order
and not the numerical order. The top half of the LCD displays the Sources and will change
accordingly. If you have already customized your labels, the device name will be displayed.
The CLEAR button will flash white and the TAKE button will flash red. Press the TAKE button
to confirm the route change. Or, you can press the CLEAR button to discard the route change.
The pushbuttons override any existing routes, including destinations locked with Videohub software.
1 4 7 10 SRC MENU
2 5 8 11 DEST VIDEO
3 6 9 12 CLEAR TAKE
SD/HD/3G/6G-SDI IN SD/HD/3G/6G-SDI OUT
USB 2.0ETHERNET
REF IN
RS-422
CNTRL
1 3 5 7 9 11 1 3 5 7 9 11
2 4 6 8 10 12 2 4 6 8 10 12
Smart Videohub 12 x 12
The numbered pushbuttons correspond to either the SDI
inputs (sources) or SDI outputs (destinations).
Menu buttons allow for simple and quick route changes.
1 4 7
10 SRC MENU
2 5 8
11 DEST VIDEO
3 6 9
12 CLEAR TAKE
SD/HD/3G/6G-SDI IN SD/HD/3G/6G-SDI OUT
USB 2.0ETHERNET
REF IN
RS-422
CNTRL
1 3 5 7 9 11 1 3 5 7 9 11
2 4 6 8 10 12 2 4 6 8 10 12
Smart Videohub 12 x 12
1 4 7 10 SRC MENU
2 5 8 11 DEST VIDEO
3 6 9 12 CLEAR TAKE
SD/HD/3G/6G-SDI IN SD/HD/3G/6G-SDI OUT
USB 2.0ETHERNET
REF IN
RS-422
CNTRL
1 3 5 7 9 11 1 3 5 7 9 11
2 4 6 8 10 12 2 4 6 8 10 12
Smart Videohub 12 x 12
The LCD provides instant feedback of route selections and
changes and allows you preview source and destination
video without an external monitor.
13 16 19 SRC MENU
14 17 20 DEST VIDEO
15 18
1 4 7 10
2 5 8 11
3 6 9 12 CLEAR TAKE
SD/HD/3G/6G-SDI IN SD/HD/3G/6G-SDI OUT
USB 2.0ETHERNET
REF IN
RS-422
CNTRL
1 3 5 7 9 11 13 15 17 19 1 3
2 4 6 8 10 12 14 16 18 20 2 4
5 7 9 11 13 15 17 19
6 8 10 12 14 16 18 20
Smart Videohub 20 x 20

Blackmagicdesign Videohub Specifications

General

Video Input	SDI
Video Output	SDI
Serial Router Control	RS-422
Ethernet Router Control	10/100/1000 Ethernet
Inputs	40
Outputs	40
SDI Bit Depth	10-bit
Power Supply	Internal power supply, 100-240V AC
