Modular fire panel Cabling | en 53
Bosch Sicherheitssysteme GmbH Networking guide 07.2019 | 5.9 | F.01U.247.450

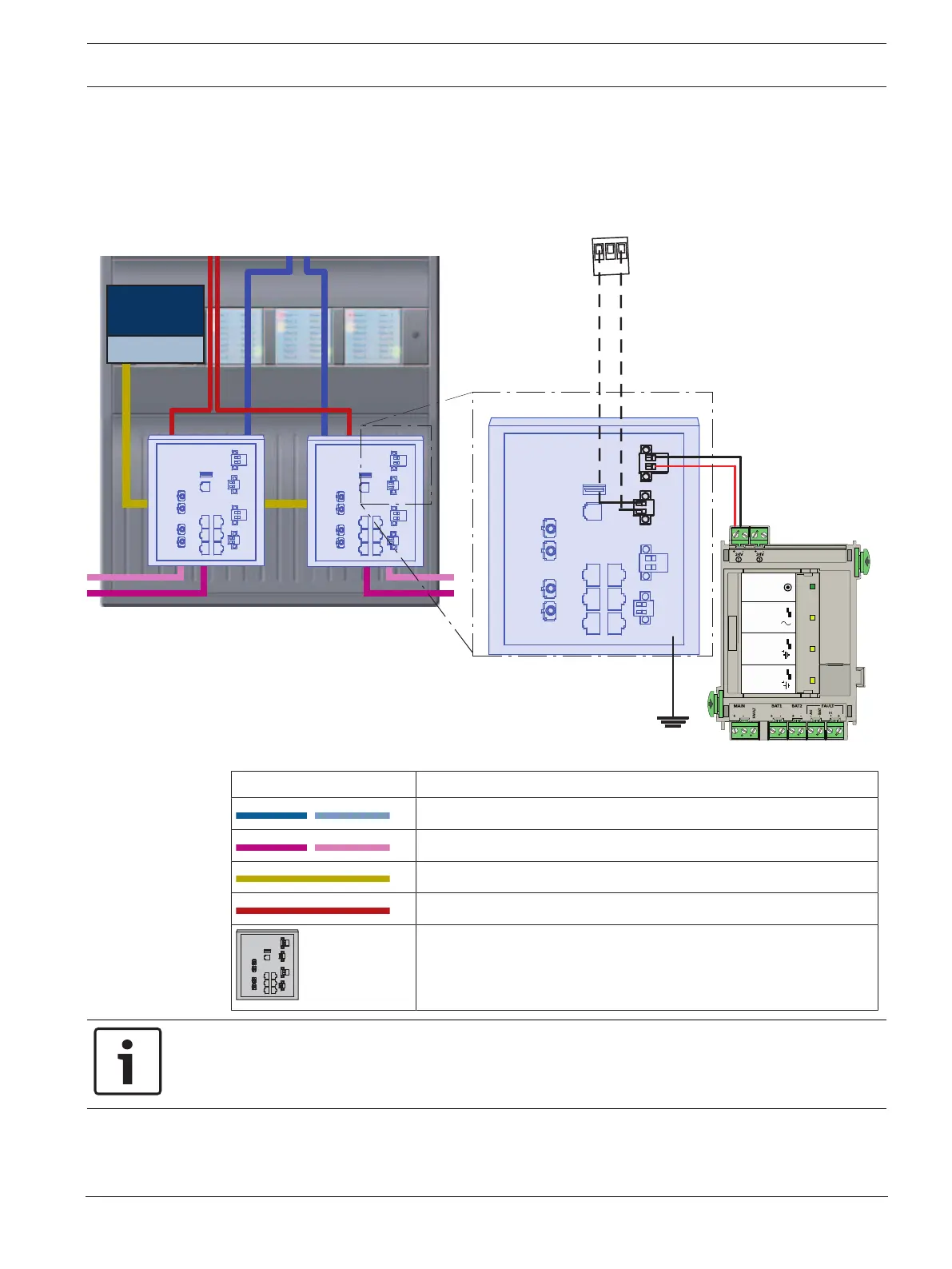

Connection of switches with reporting of faults to the panel controller inputs
BCM-0000-B
24V
-
+
24V (2,8 A)
MAIN POWER
MAIN POWER
TROUBLE
TROUBLE
TROUBLE
BATTERY 1
BATTER
Y 2
BCM-0000-B
IN1 IN2
Figure11.3: Connection of switch to the power supply and to the panel controller
Icon Description
TX Ethernet cable (copper)
FX Ethernet cable (fiber optic cable)
24 V power supply
Transmission of fault
RSTP switch
Notice!
Do not use the supplied network cable to connect the switches.
Use an Ethernet patch cable, shielded, CAT5e or better.

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
