2-2
Bosch Security Systems 05/10 BLCC100I
Solution 16
plus
 Installation Manual  Installing the Hardware
Module Space Occupied
Solution 16
plus
Control Panel 2 Module Spaces
CM104 Zone Expander 1 Module Space
CM110 Output Expander 1 Module Space
CM120 LAN Power Supply 1 Module Space
CM195 RF Receiver Expander 1 Module Space
Table 1: Expansion Options
Use the above table to help determine which size cabinet you
will require for the job.
On some export models, one module space will not be available
as the mains transformer mounts in this location.
INS TA LL I NG PA NEL S A ND MO D UL E S
Once the enclosure is secured in place, install the panels and
modules onto the mounting clip using the supplied 3mm
screws. Do not over tighten the screws.
When tting panels or large modules, you should use 5
mounting clips, one in each corner of the PCB and one in the
middle of the PCB underneath the main terminal blocks. When
mounting small modules, only 4 clips are required, 1 in each
corner.
Both enclosures are supplied with tamper switches,
tamper leads, tamper brackets and a quantity of
mounting clips and screws. If required, additional mounting
clips and screws may be purchased in bags of 50 clips (10 packs
x 5pcs). (P/N: MW890)
i
Note
The supplied mounting clips are designed to use the 3mm
machine screws supplied with the enclosure. The use of self
tapping screws will damage the clips.
320 mm
260 mm
A AAA
A
AAA
CABLE ENTRY (REAR)
A A
A
A
AAAA
A
= PCB Mounting Clip Holes
C C
BB
B
B
D
= Enclosure Mounting Holes
B
= Tamper Bracket Mounting Holes
C
= Earth Stud - 4mm
D

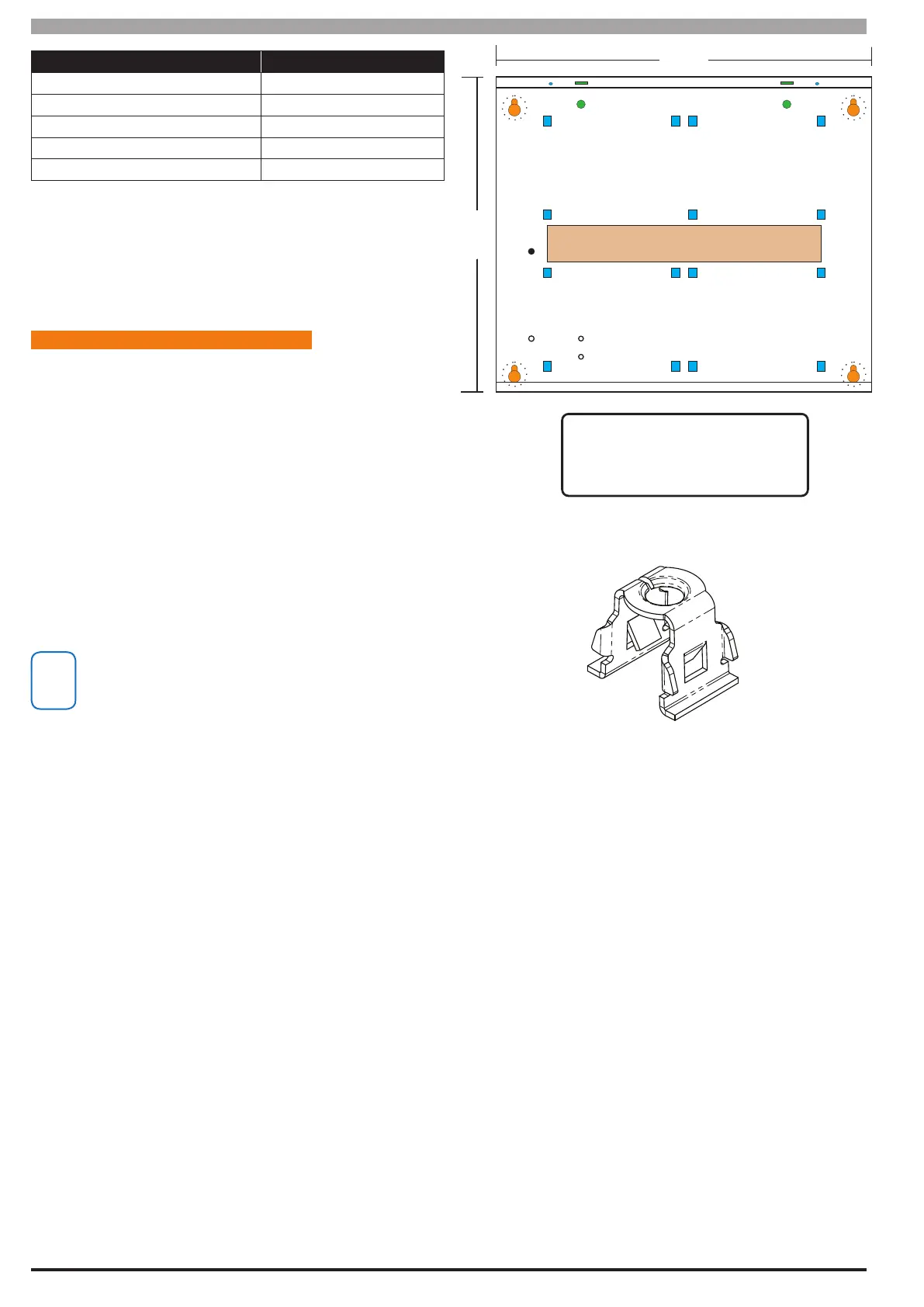

Figure 3: MW700 - Small Enclosure Details
Figure 4: PCB Mounting Clip
The following example shows the MW700 -Small enclosure
congured using 4 small modules.
