Bosch Solution 16plus Installation Manual

2-5
Bosch Security Systems 05/10 BLCC100I
Solution 16
plus
 Installation Manual  Installing the Hardware

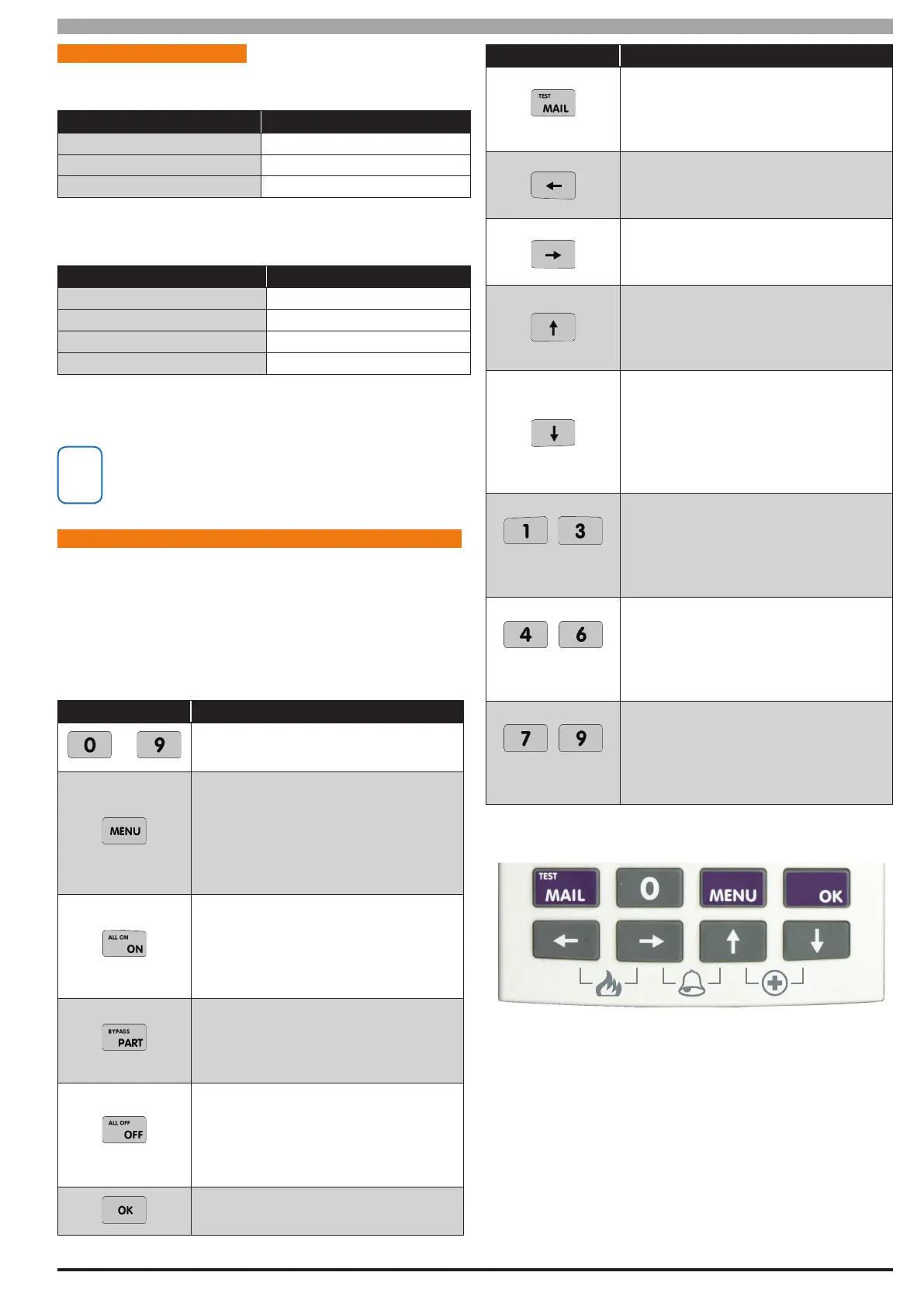

PAN EL LE D I N DI CATOR S
The control panel PCB has two LED indicators (Dialler and Status
LED’s) which display the following information.
Condition
Meaning
O Oine
On On Line (Dialling/Answered)
Flashing Incoming Call
Table 2: Dialler Indicator LED
Condition
Meaning
O Error
On Error
Flash Once Every 2 Seconds OK
Flash Fast AC or Battery Trouble
Table 3: Status Indicator LED
i
Note
During factory defaulting the Status and Dialler LED indicators
will ash alternatively for approximately 15 seconds.
KEY PA D B U TTON FU N CT I ON S
The Graphic Keypad has 20, silicone rubber push button keys.
The buttons allow you to input instructions and navigate the
menu screens as required. Some buttons have a secondary
function which is activated by holding them down for two
seconds.
Each button’s function is described below
Key
Description
to
The numeric keys allow you to enter
numbers when required
Use the [MENU] and the numeric keys
to enter commands. The [MENU] key
is also used to go back one level when
navigating through menus or to exit a
programming location without saving
changes.
The [ON] key allows you to turn an area
or output on. To turn all areas on at the
same time when the system has been
partitioned, press and hold the [ON] key
for two seconds.
The [PART] key allows you to turn an
area Part On. This key can also be used
to bypass a zone or multiple zones when
you press and hold for two seconds.
The [OFF] key allows you to turn an area
or output o. To turn all areas o at the
same time when the system has been
partitioned, press and hold the [OFF]
key for two seconds.
The [OK] key allows you to save any
changes and exit the command.
Key
Description
The [MAIL] key allows you to read stored
mail. This key can also be used to initiate
a dialler test when you press and hold
for two seconds.
The [] key allows you to move the
cursor to the left when programming
text or telephone numbers.
The [] key allows you to move the
cursor to the right when programming
text or telephone numbers.
The [↑] key allows you to navigate
through menus or to toggle characters
when programming text or telephone
numbers.
The [] key allows you to navigate
through menus or to toggle characters
when programming text or telephone
numbers. Pressing the [] key when the
area is disarmed will display any current
trouble conditions.
+
for 2 sec
Pressing the 1 and 3 keys together and
holding them down for 2 seconds will
cause a Panic alarm to be triggered. If
programmed the sirens will sound and
the monitoring station will be notied.
+
for 2 sec
Pressing the 4 and 6 keys together and
holding them down for 2 seconds will
cause a Fire alarm to be triggered. If
programmed the sirens will sound and
the monitoring station will be notied.
+
for 2 sec
Pressing the 7 and 9 keys together and
holding them down for 2 seconds will
cause a Medical alarm to be triggered. If
programmed the sirens will sound and
the monitoring station will be notied.
Table 4: Keypad Button Functions
Figure 9: Keypad Emergency Buttons
The new methods are easier for the end user to remember
and also allow for labelling to be applied to the keypad
further simplifying operation. At this time both old and new
methods function.
