KEY PA D TONE S
Your keypad emits several distinct tones and displays text to
alert you to system events. The volume of the keypad tones can
be adjusted in MENU 6-1-0.
Type Meaning
Fire
Alarm
Tone
When a re zone sounds an alarm, the keypad
will sound 3 seconds on and 2 seconds o
(repeat).
Burglary
Alarm
Tone
When a burglary zone activates while your
system is turned on, your keypad emits a
continuous siren tone. It sounds for the time
set by your security company.
Trouble
Tone
When a system component is not functioning
properly, your keypad sounds 4 fast short
beeps followed by a 5 second pause (repeat).
Key Press
Tone
Pressing any key on the keypad sounds one
short beep, indicating that the key press is
accepted.
Entry
Delay
Tone
When you enter the premises through a zone
programmed for entry delay, the keypad
sound a Hi/Low tone to remind you to turn o
the area. If the area is not turned o before
the entry delay expires, an alarm condition will
sound and a report may be sent to your alarm
company.
Exit
Delay
Tone
After you turn an area All On, the keypad will
sound 1 short beep every second. During the
last 10 seconds fast short beeps will be heard.
If you don’t exit before the delay time expires
and an exit delay door is faulted, an alarm
occurs.
Error
Tone
If you press an incorrect key, your keypad will
sound a 2 second tone.
Menu
Mode
The keypad will sound a Hi / Lo tone to indicate
you have entered MENU Mode and a Lo/Hi
tone to indicate you have exited MENU mode.
Chime
Tone
The keypad sounds fast short beeps to alert
you when a zone programmed for chime is
faulted or unsealled.
Table 8: Keypad Tone Meanings

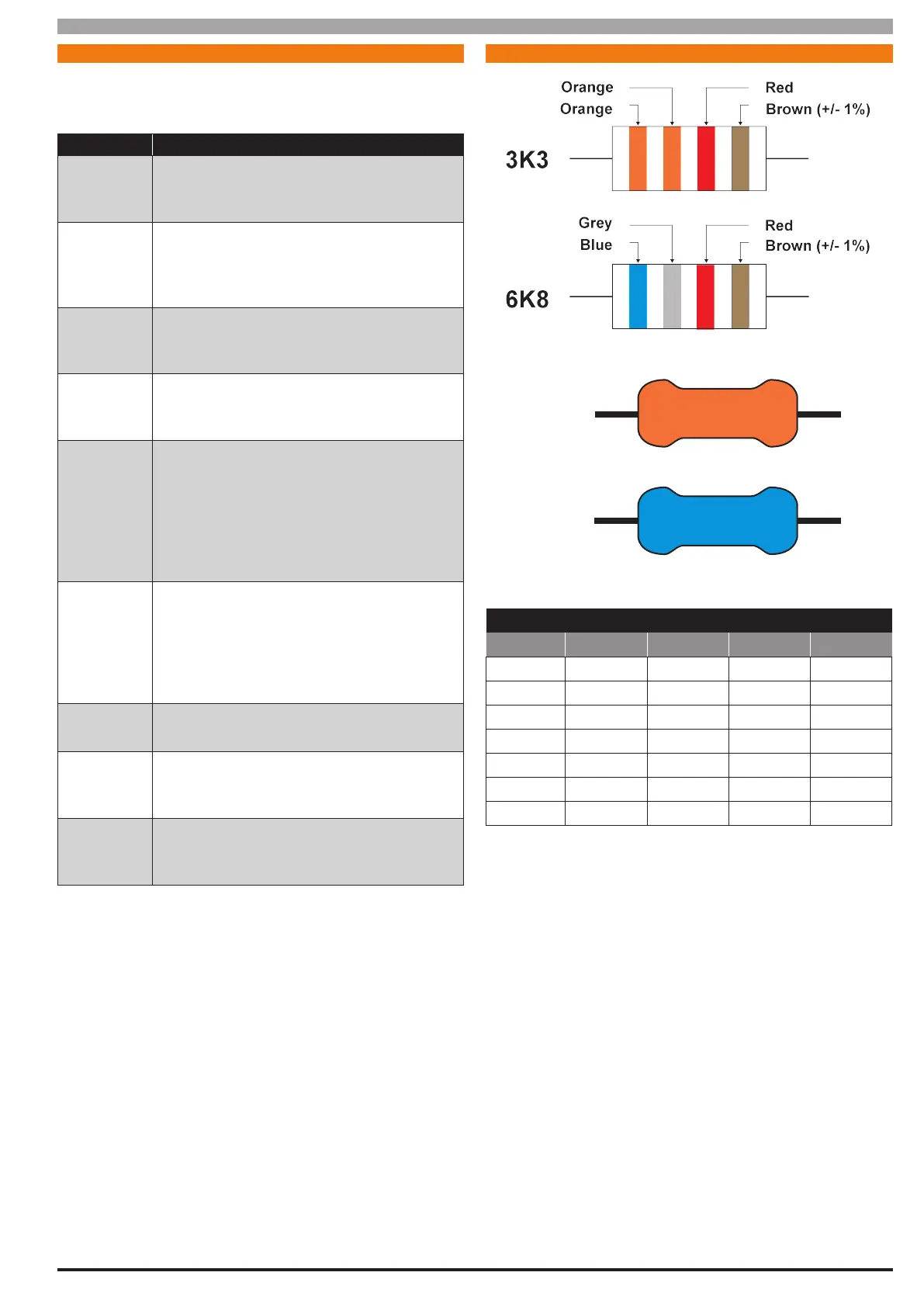

EO L R E SI S TO R CO LOU R CO DE
3K3 =
6K8 =
Orange
Blue
Figure 11: EOL Resistor Colour Chart
Selected Resistor Colour Codes
Value Band 1 Band 2 Band 3 Band 4
2K2 RED RED RED BROWN
4K7 YELLOW VIOLET RED BROWN
5K6 GREEN BLUE RED BROWN
8K1 GREY BROWN RED BROWN
10K BROWN BLACK ORANGE BROWN
12K BROWN RED ORANGE BROWN
22K RED RED ORANGE BROWN
Table 9: EOL Resisstor Colour Codes
Because of variations in the colours used to mark resistors it is
recommended that you use a multimeter to verify the value of
resistors rather than rely on the colour code.
