Drawings and lists
11 Drawings and lists
11.1 Subassemblys
Subassembly Number Page
0 Space required roller race 3m 614 40016 102
Space required roller race 6m 614 40017 103
1 Roller race 3m 614 02001 104
Roller race 6m 106
2 Y - axis 614 05032 107
3 Tool box 614 03021 111
4 AMADA station B 314 03003 113
Cutting station 319 03001 113
5 Clamping arrangement work piece 614 05035 114
6 Punch head 614 03025 118
7 X-axis 614 05033 124
8 Tilting table 614 02007 128
9 Clamp 614 05036 130
10 Waste stripper 614 06007 133
11 Safety device 614 06009 134
12 Hydraulic unit standard 614 04004 135
Hydraulic unit speed 614 04003 137

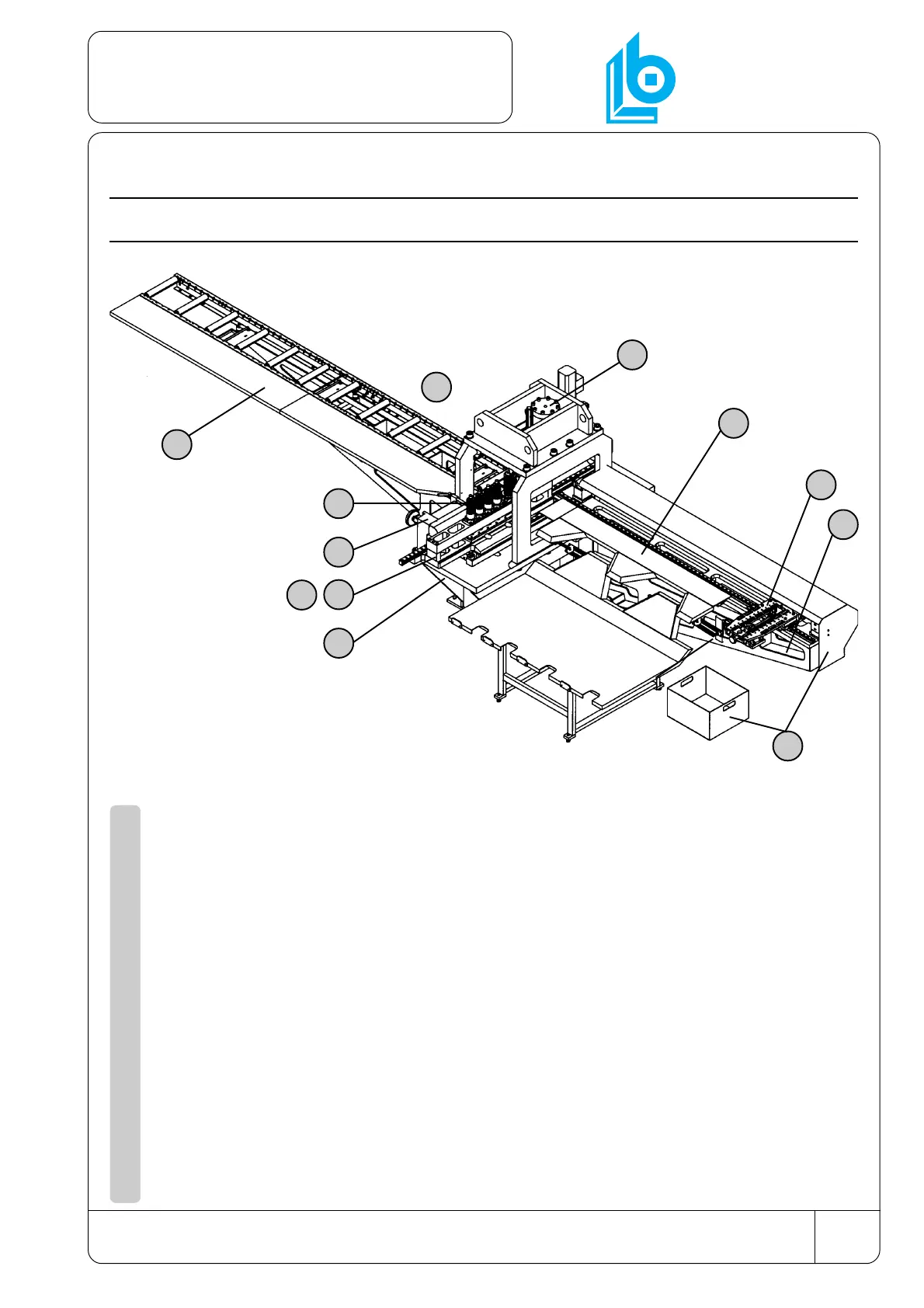

Representation without protective covers
